2026 KGM Motors Musso EV

• KGM launches its first fully electric ute with up to 420 km range.

• AWD model delivers 266 kW and 630 Nm for stronger capability.

• Interior upgrades include dual 12.3-inch screens and premium materials.

Design and Exterior Identity

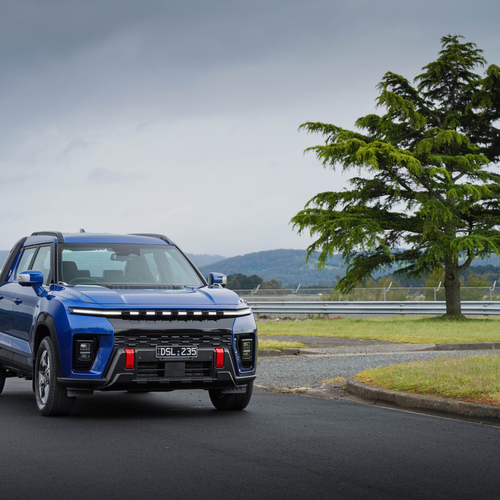

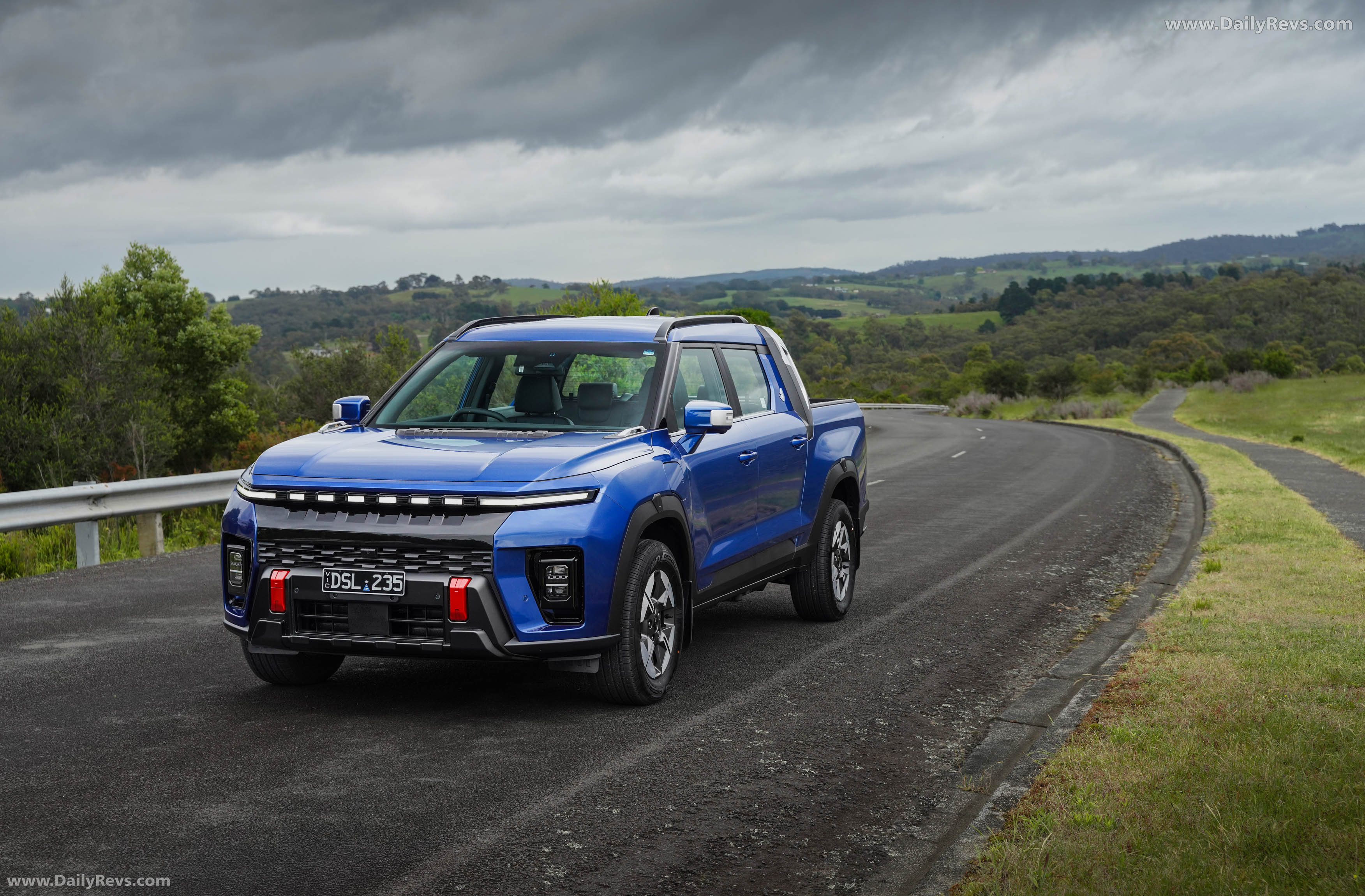

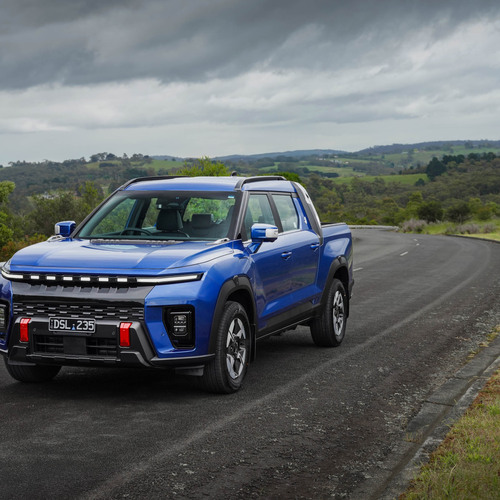

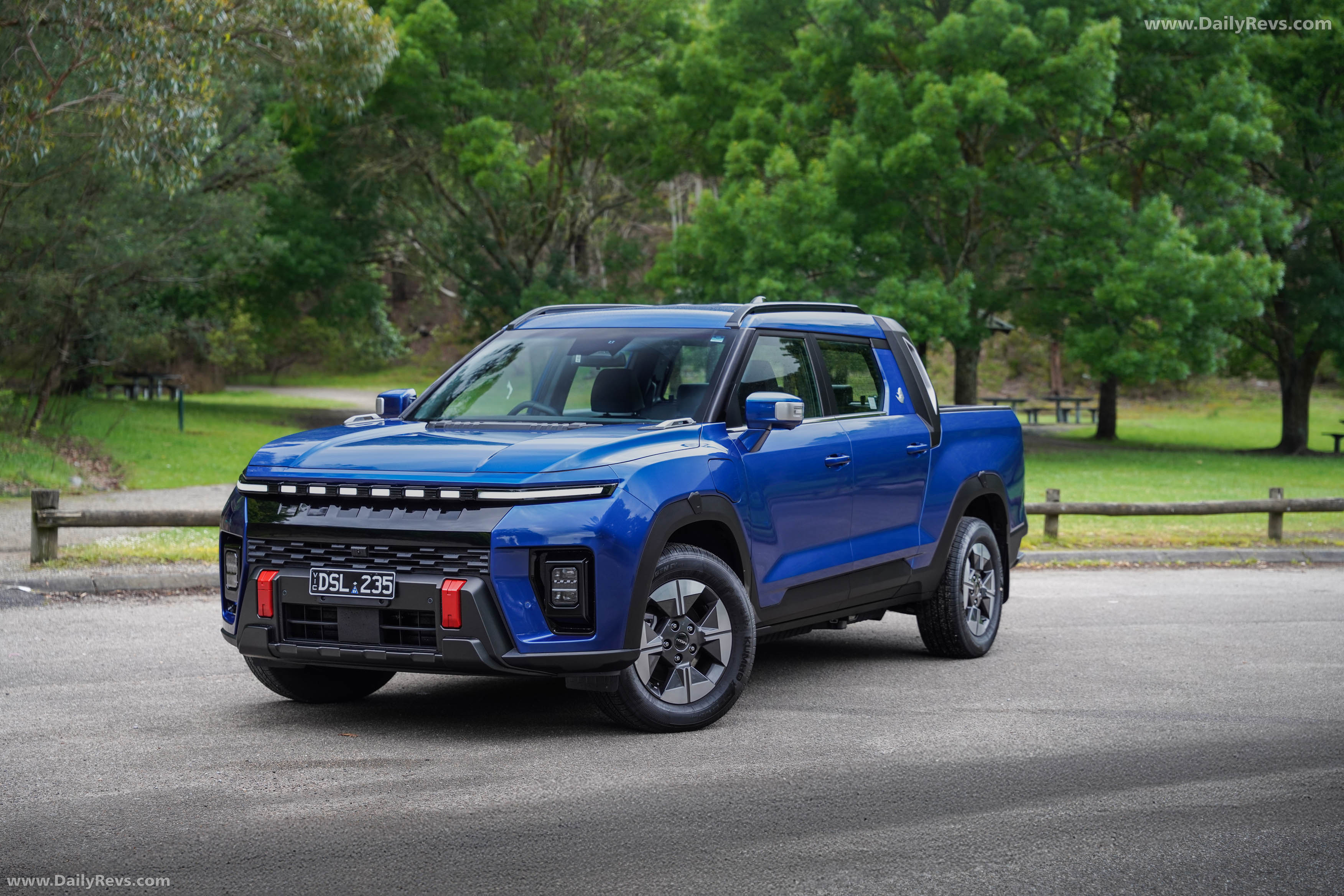

The 2026 KGM Motors Musso EV arrives as the company’s first electric ute, and the design reflects the significance of that step. Its proportions stay close to the familiar Musso, but the detailing signals an EV-forward direction. The sculptured bonnet, LED headlights, and dot-pattern LED daytime running lights give the front end a high-tech character, supported by a three-dimensional black grille and silver skid plate for visual weight.

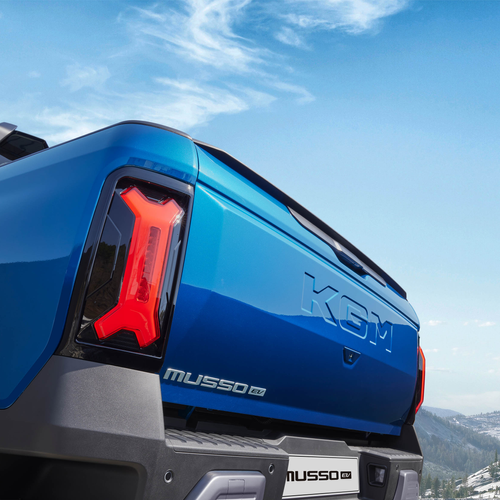

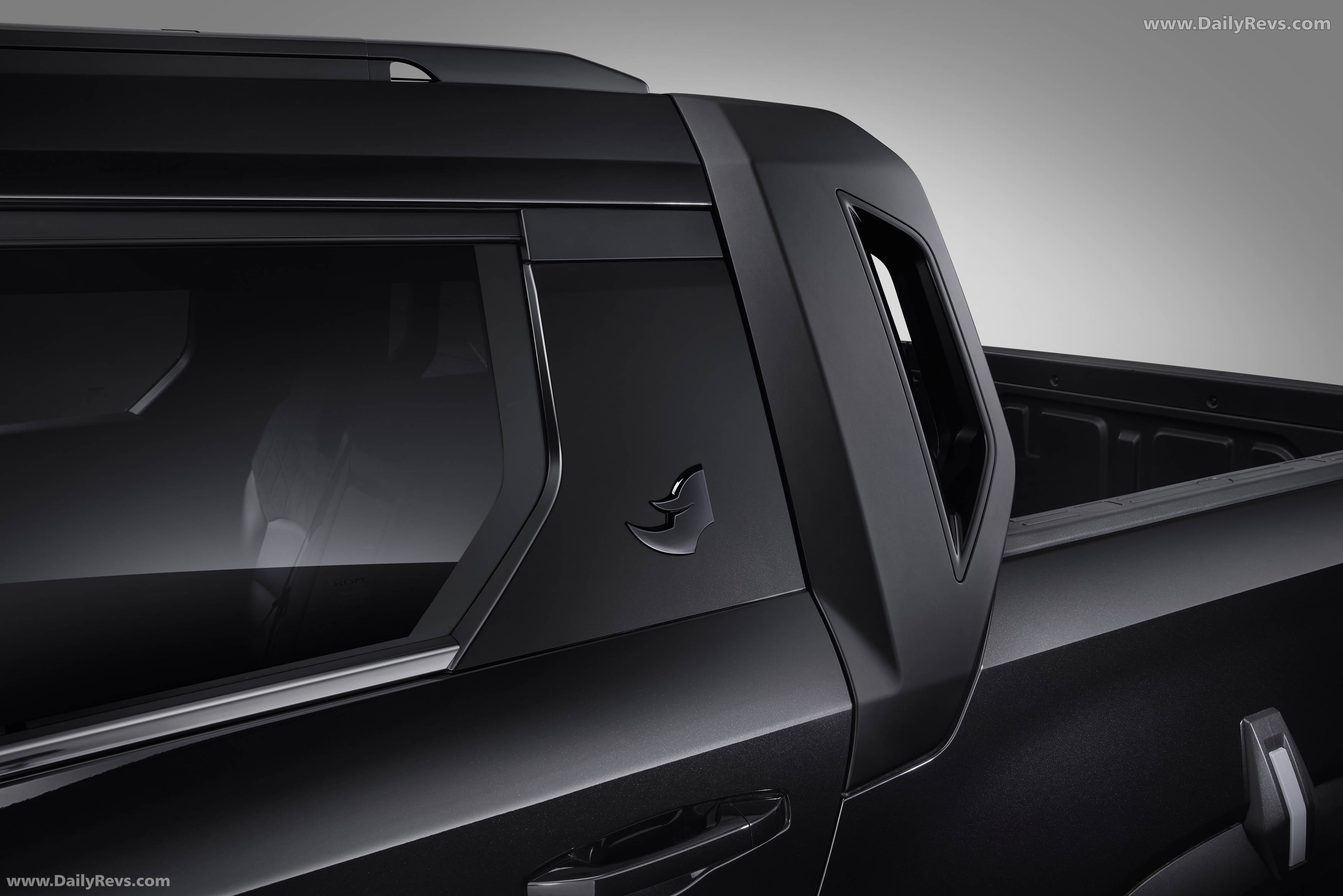

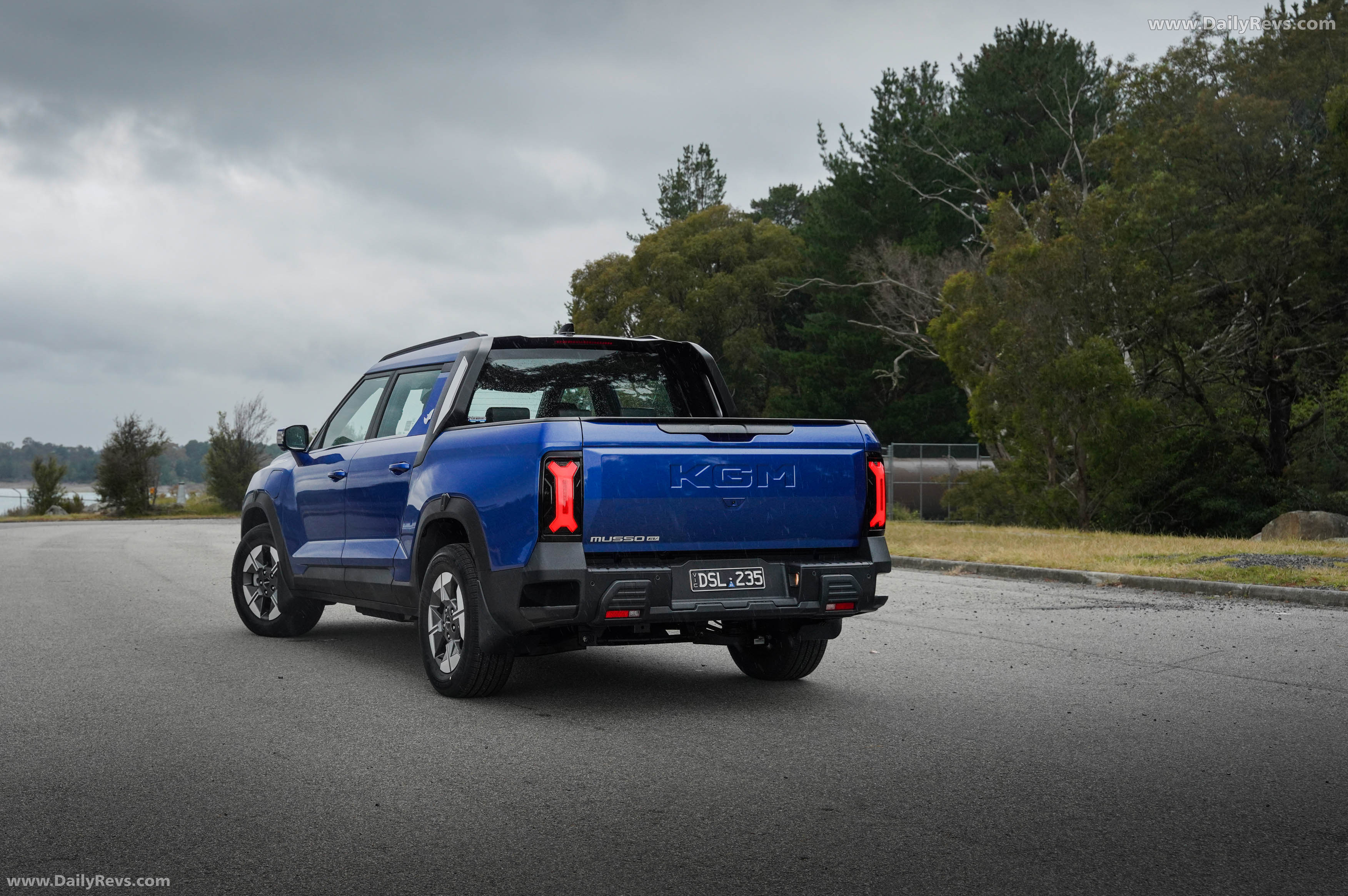

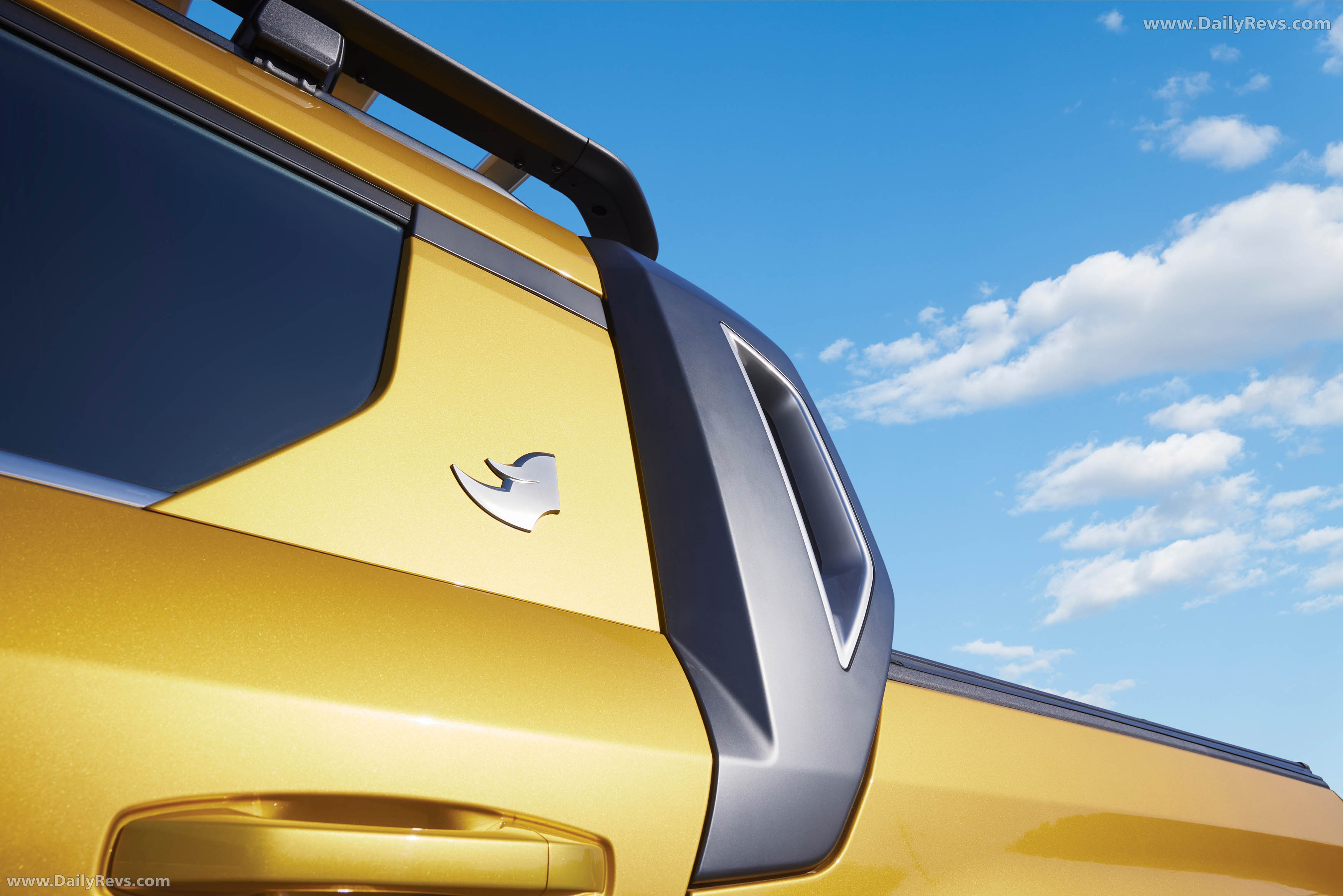

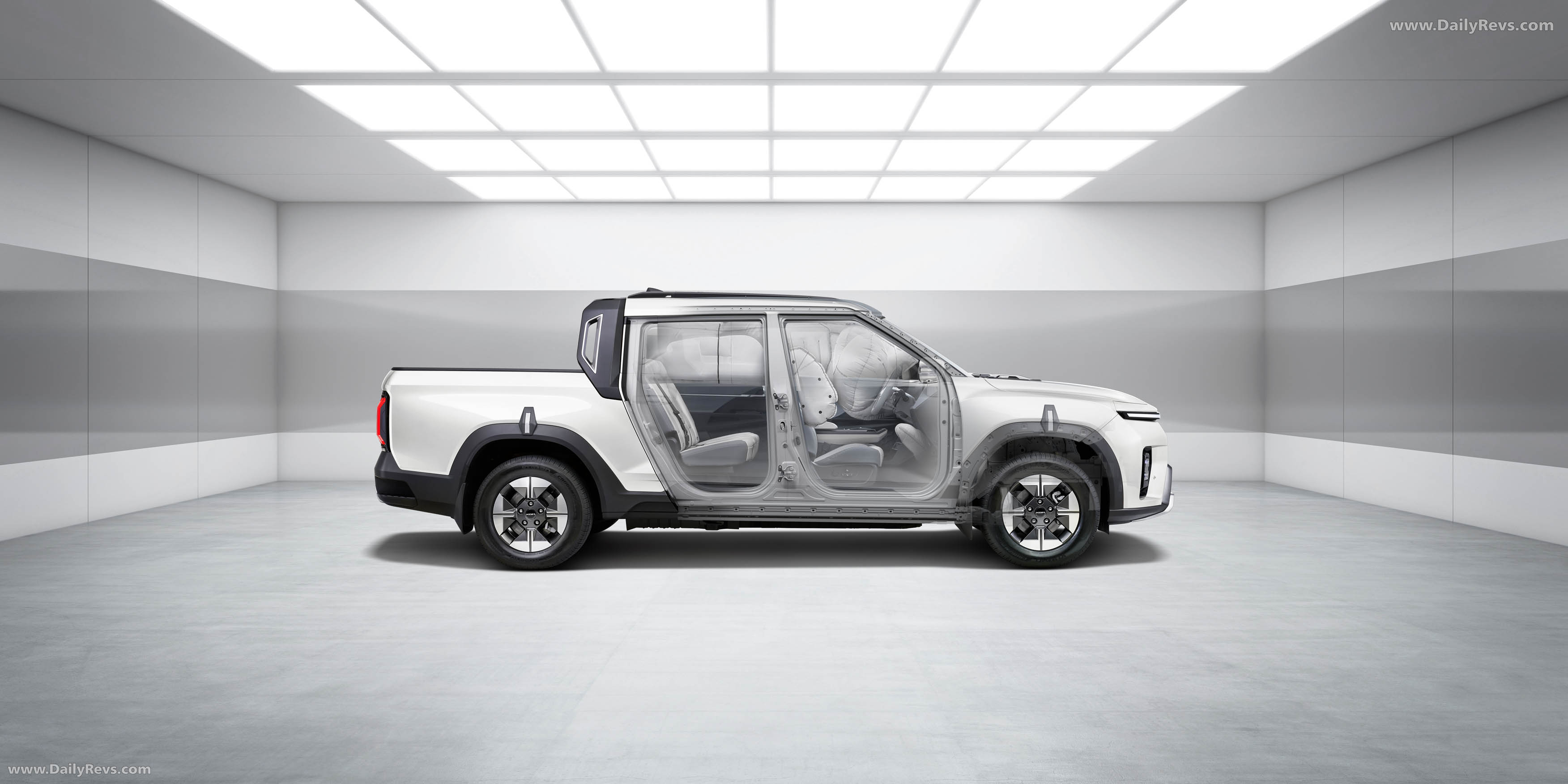

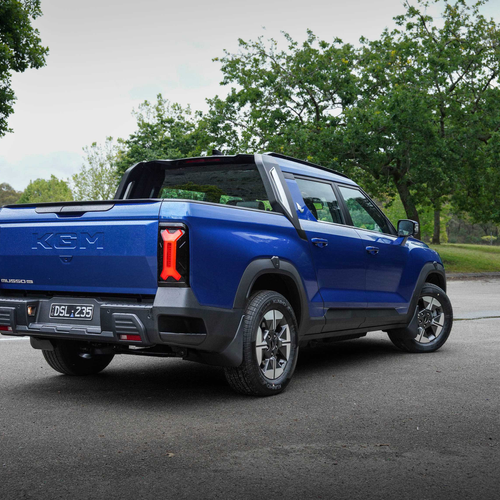

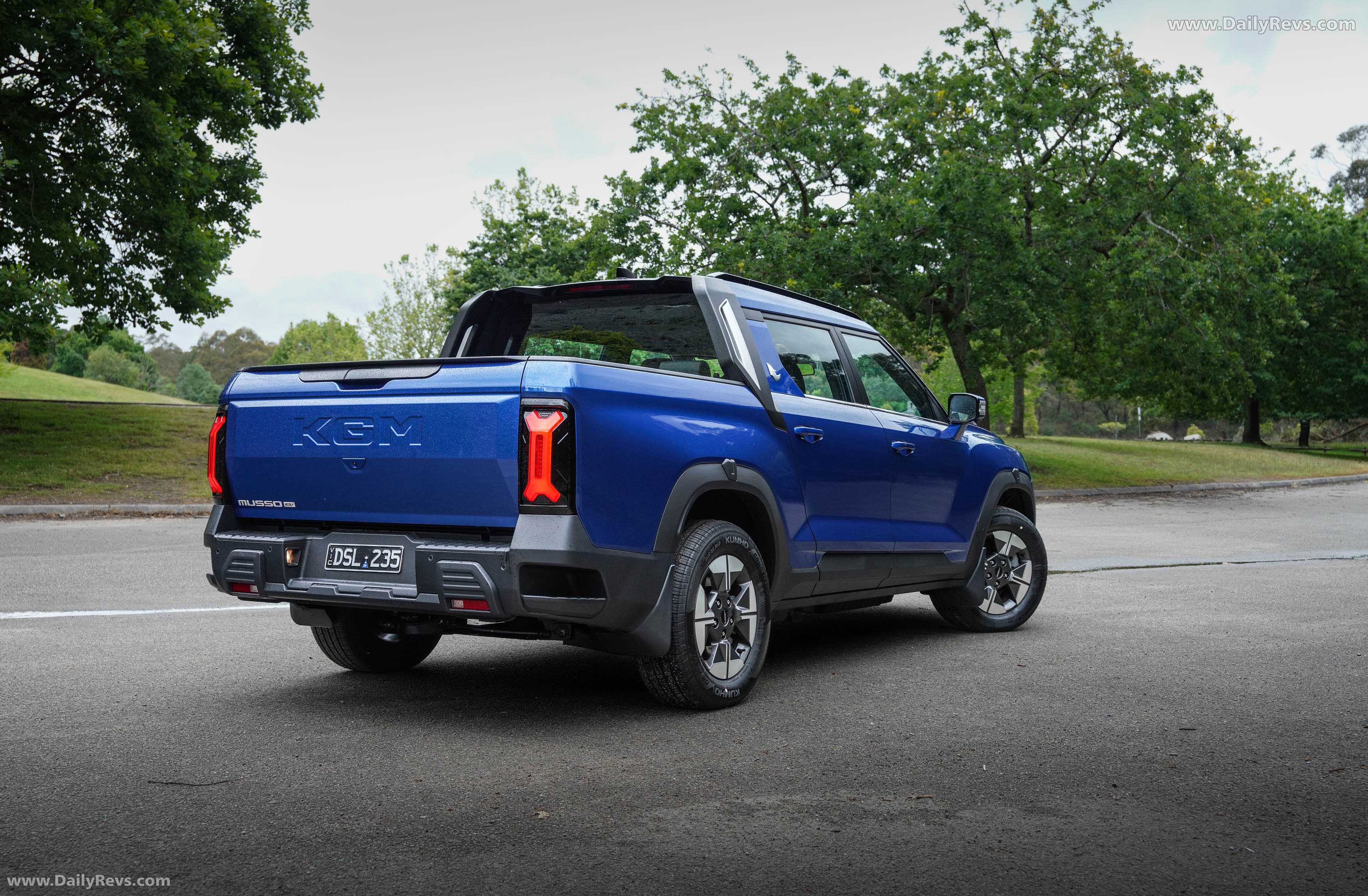

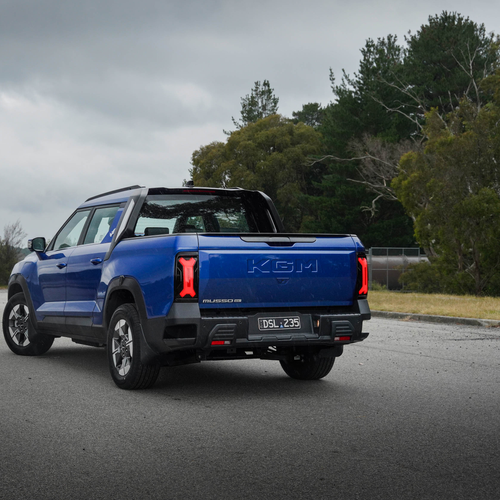

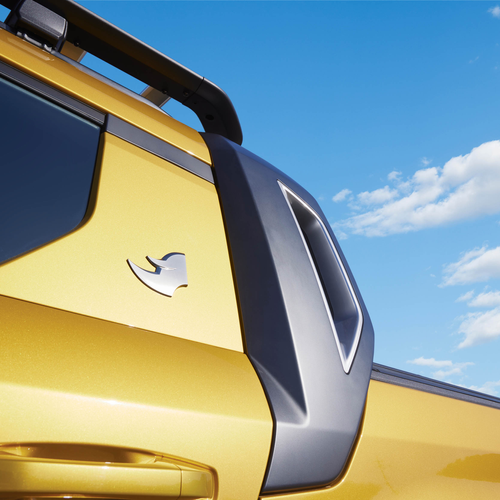

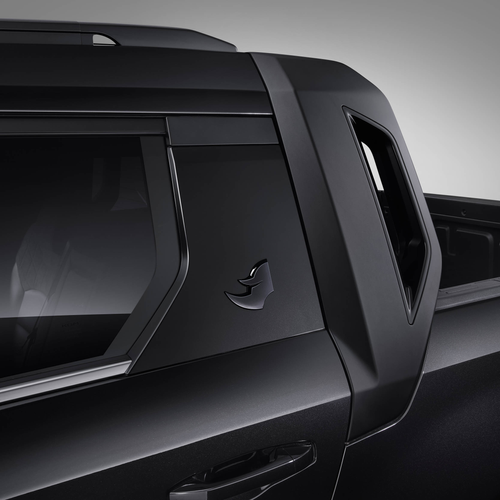

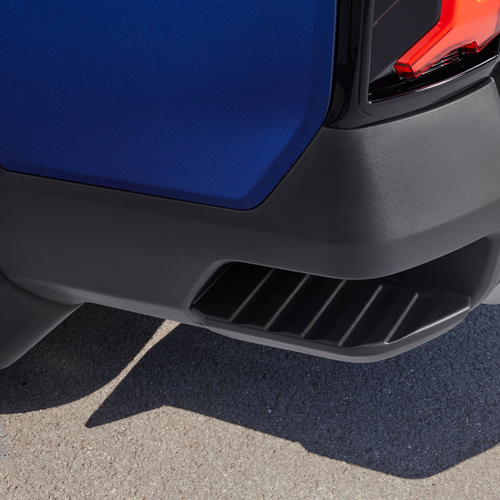

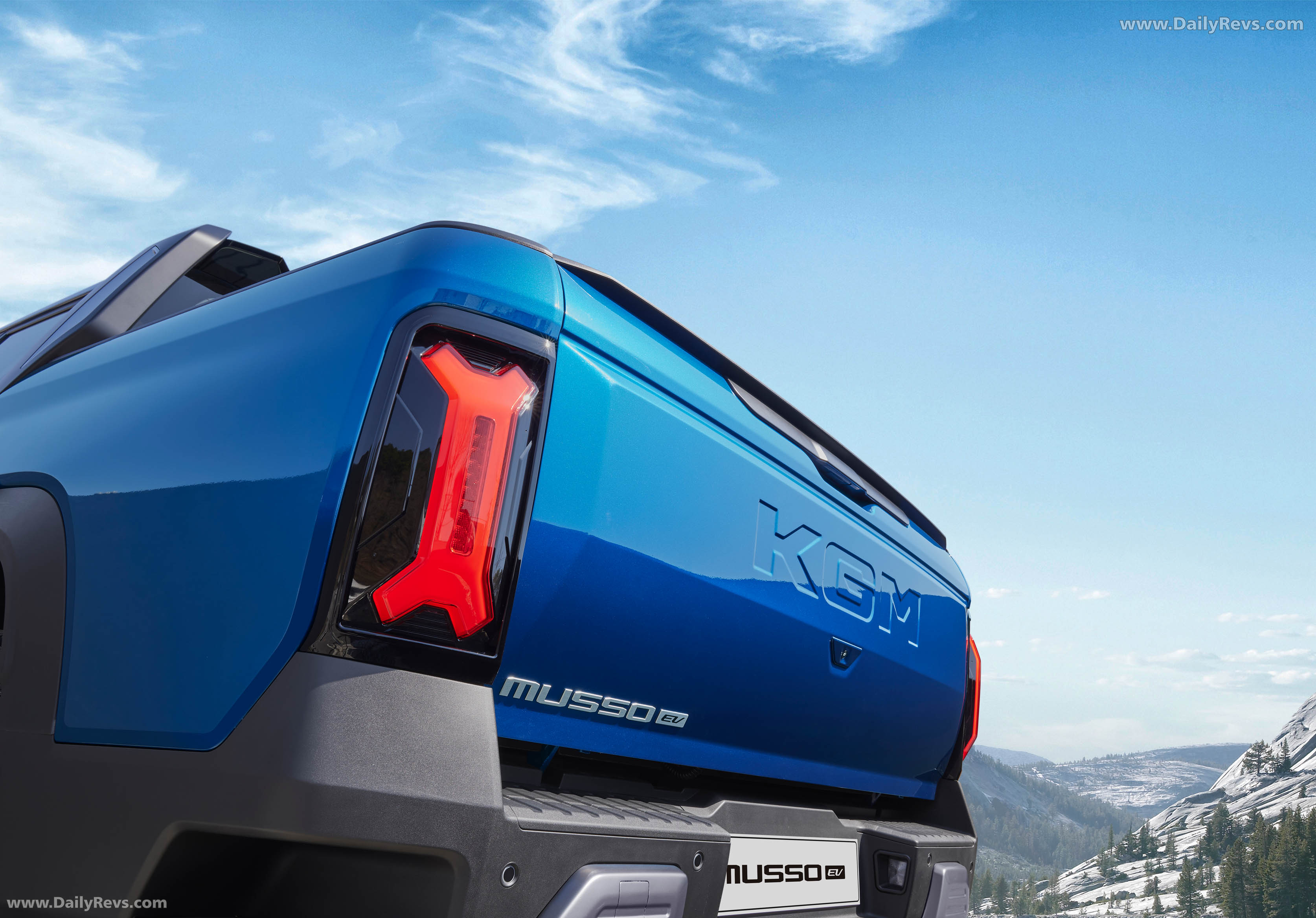

Along the side, the Musso EV maintains a cohesive, almost SUV-like flow between cabin and tub. The bold wheel arches and door garnishes push it toward the more rugged end of the segment, while the C-pillar integrates a sail-plane element and the “Rhino” emblem—both nods to the model’s heritage of durability and strength. At the rear, the debossed KGM logo and LED combination lamps define a modern, purposeful look.

Cabin Layout and Technology

Inside, the Musso EV introduces the brand’s Slim & Wide concept. A panoramic 12.3-inch digital cluster pairs with a matching 12.3-inch center touchscreen, both running KGM’s new Athena 2.0 system. The interface appears cleaner and noticeably quicker in press imagery. Premium materials lift the cabin’s presentation, while heated and ventilated front seats bring unexpected comfort to a segment often focused on utility. Rear passengers get their own set of upgrades, including adjustable 60/40 seats, heating on outer positions, and generous headroom measuring 1,002 mm.

Practicality and Everyday Usability

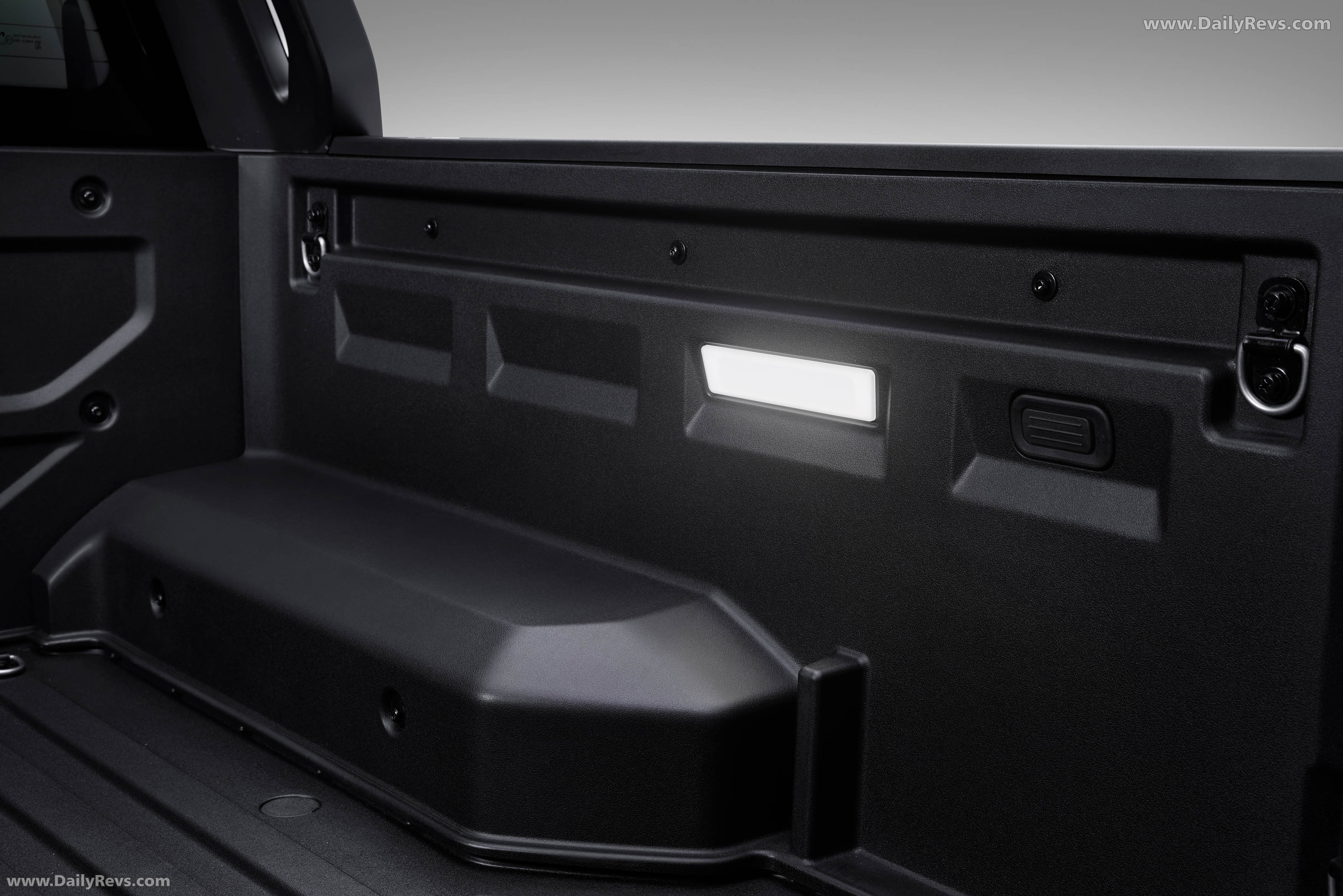

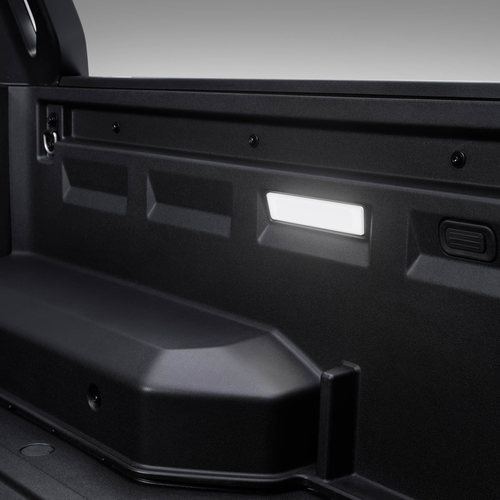

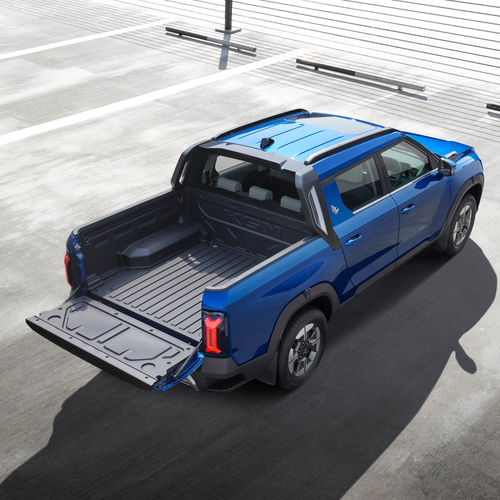

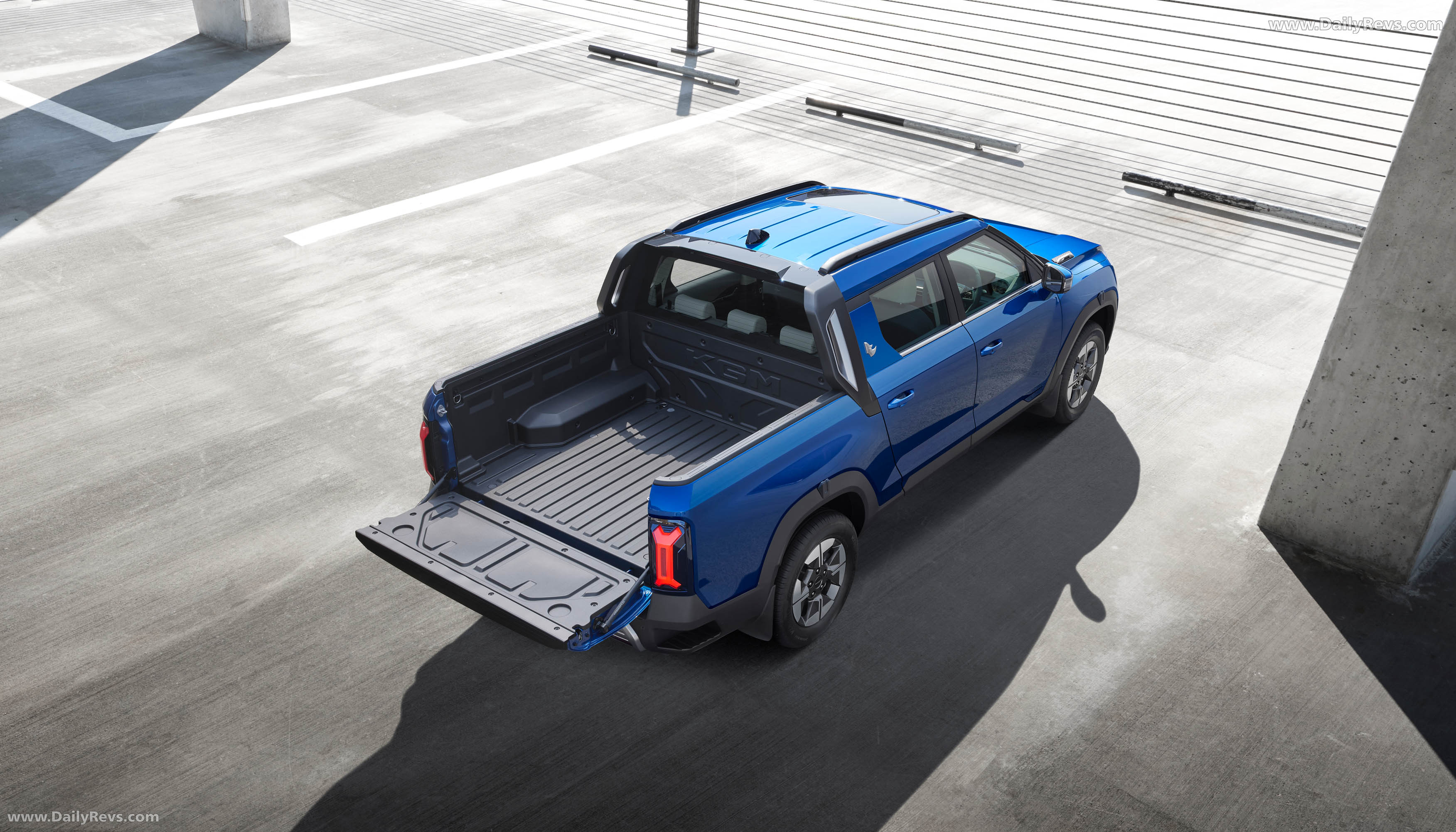

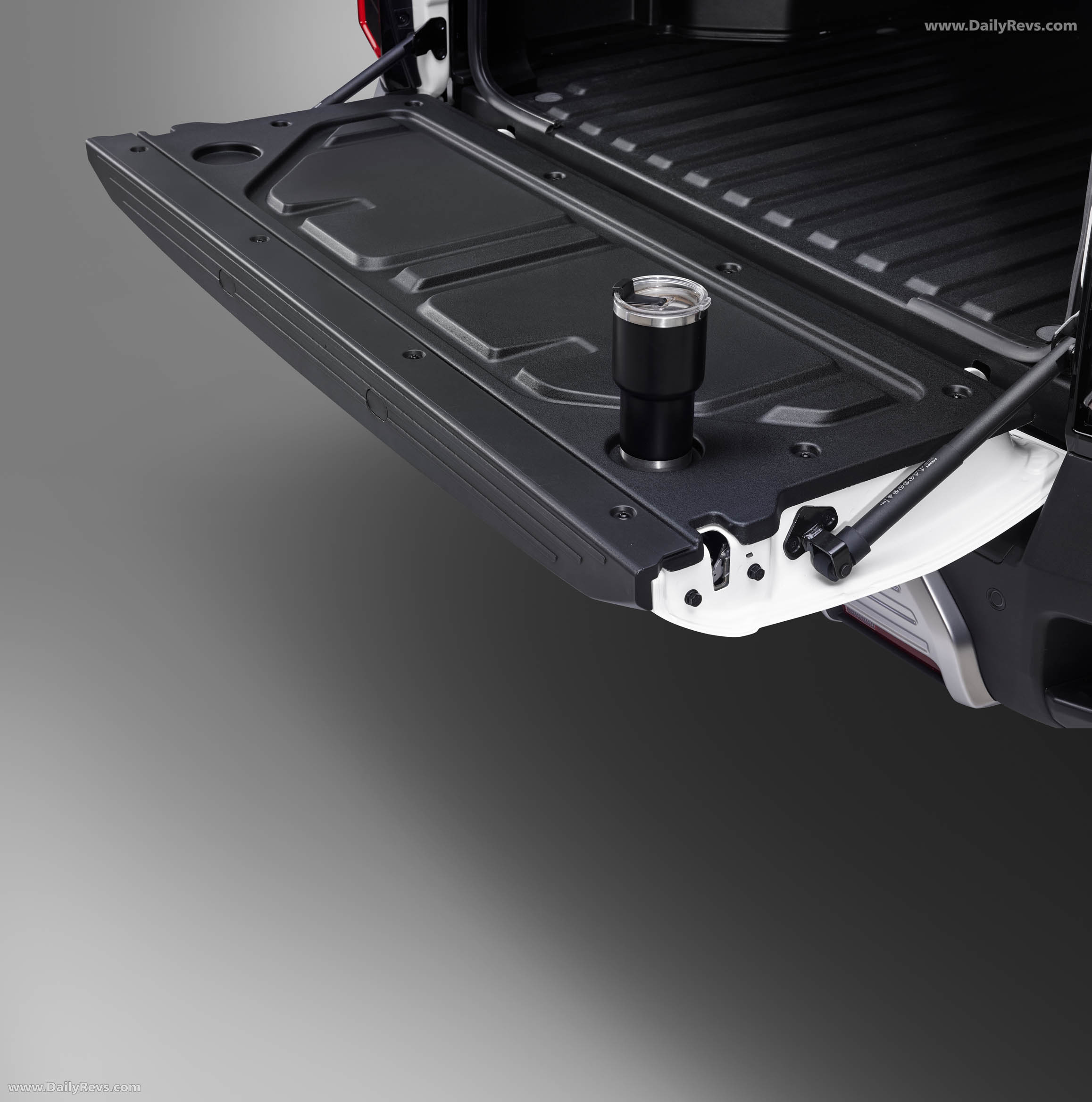

KGM positions the Musso EV as a lifestyle-leaning ute, and the practicality supports that message. The tray carries over the Musso’s dimensions and includes eight tie-down hooks, tub lighting, and a standard molded liner extending over the top edge for added protection. Inside, the second row offers more width and legroom than many mid-size SUVs, while an 80 mm sliding range and 32-degree reclining angle improve comfort on longer trips. A self-levelling rear suspension system automatically maintains ride height when towing or hauling—an important asset for work use and weekend gear alike.

Electric Platform and Driving Range

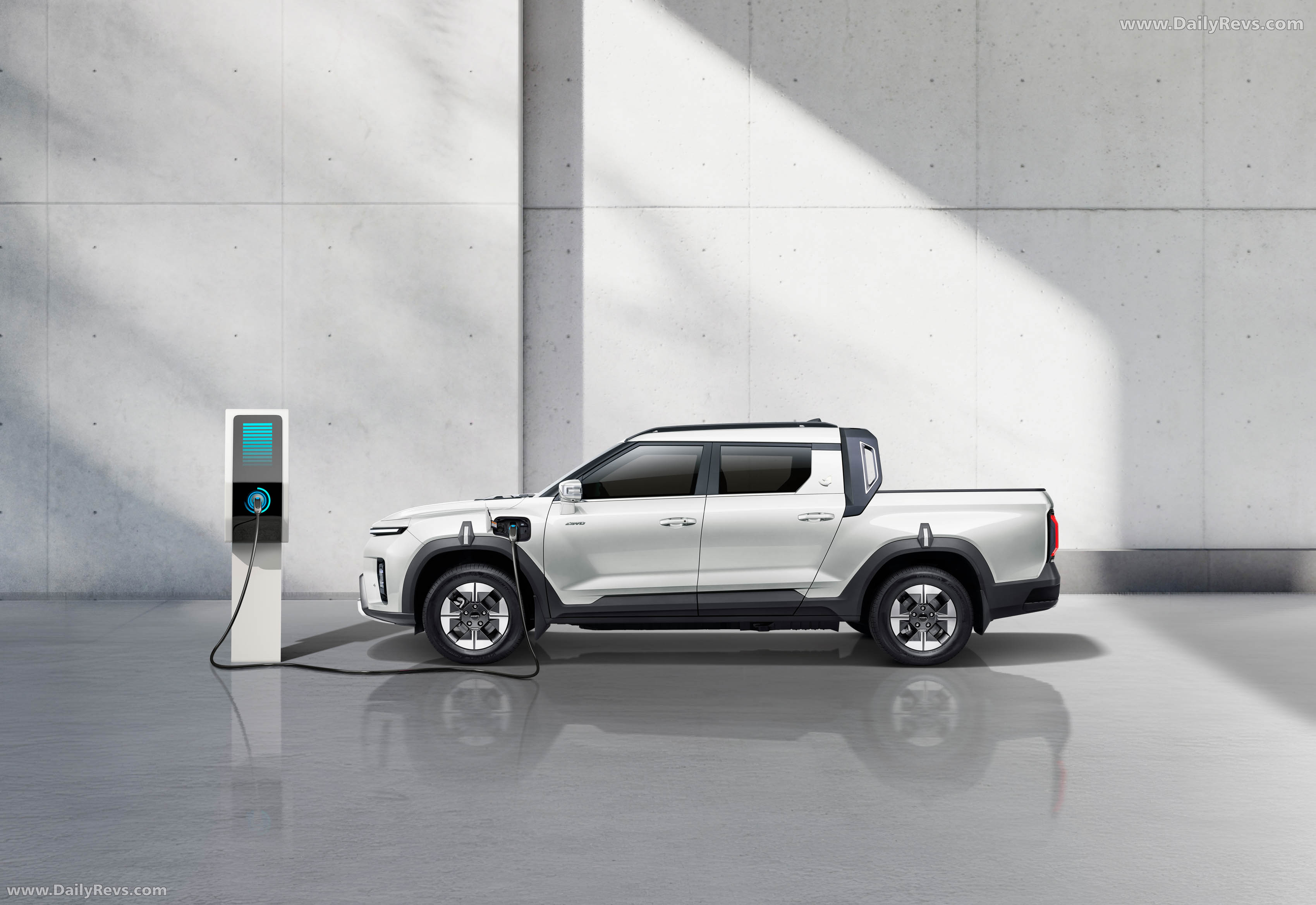

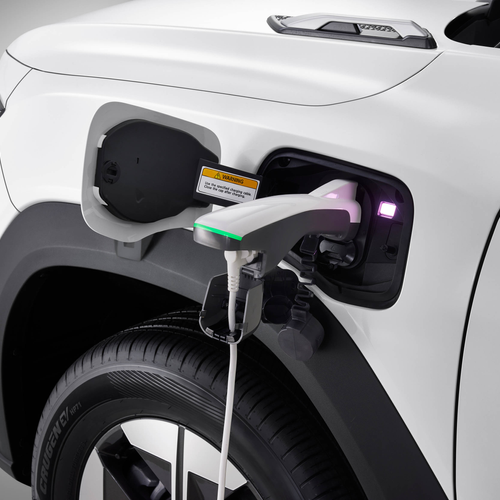

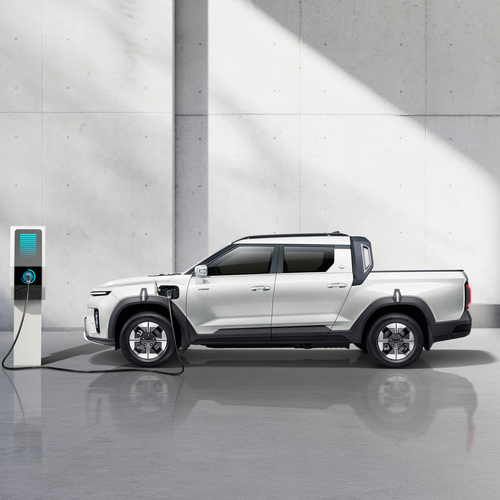

The Musso EV runs an 80.6 kWh LFP blade battery designed for durability and heat resistance. The 2WD variant uses a 152 kW, 339 Nm front motor, while the AWD model adds a rear motor for a combined 266 kW and 630 Nm. Range is rated at 420 km for 2WD and 380 km for AWD under WLTP testing. Regenerative braking offers three levels via steering-wheel paddles, and DC fast charging at up to 300 kW can replenish the battery from 20 to 80 percent in roughly 31 minutes. Vehicle-to-Load capability supports powering tools or campsite appliances.

Technical Specification

Drivetrain

• 2WD Motor Output: 152 kW / 339 Nm
• AWD Motor Output: 152 kW front + 152 kW rear
• AWD Combined Output: 266 kW / 630 Nm
• Motor Type: Interior permanent magnet synchronous motor
• Driven Wheels: 2WD (Front Wheel Drive) / AWD (All Wheel Drive)
• Transmission: 1-speed automatic (reduction gear)

Battery & Charging

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Battery Capacity: 80.6 kWh
• Battery Voltage: 371.2 V
• AC Charging (11 kW): 0–100% approx. 10h 20m
• DC Fast Charging (300 kW): 10–80% approx. 46 min
• DC Fast Charging (100 kW): 10–80% approx. 36 min

Range & Consumption

• 2WD WLTP Range: 420 km
• AWD WLTP Range: 380 km
• Energy Consumption 2WD: 230 Wh/km
• Energy Consumption AWD: 260 Wh/km

Steering

• Type: Electric Power Steering (EPS)
• Turning Circle: 10.8 m
• Suspension & Brakes
• Front Suspension: McPherson strut
• Rear Suspension: Multi-link with self-levelling shock absorbers
• Front Brakes: Ventilated discs
• Rear Brakes: Ventilated discs
• Park Brake: Electronic with Auto Hold

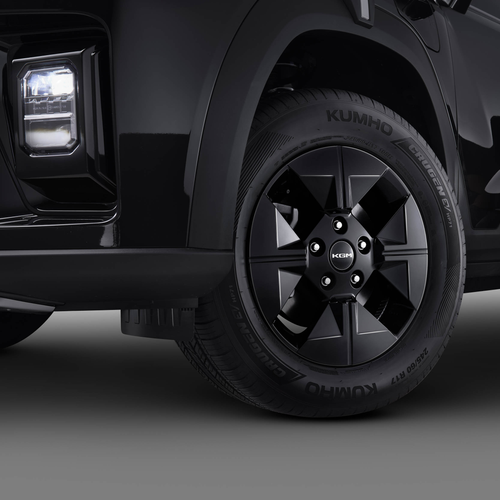

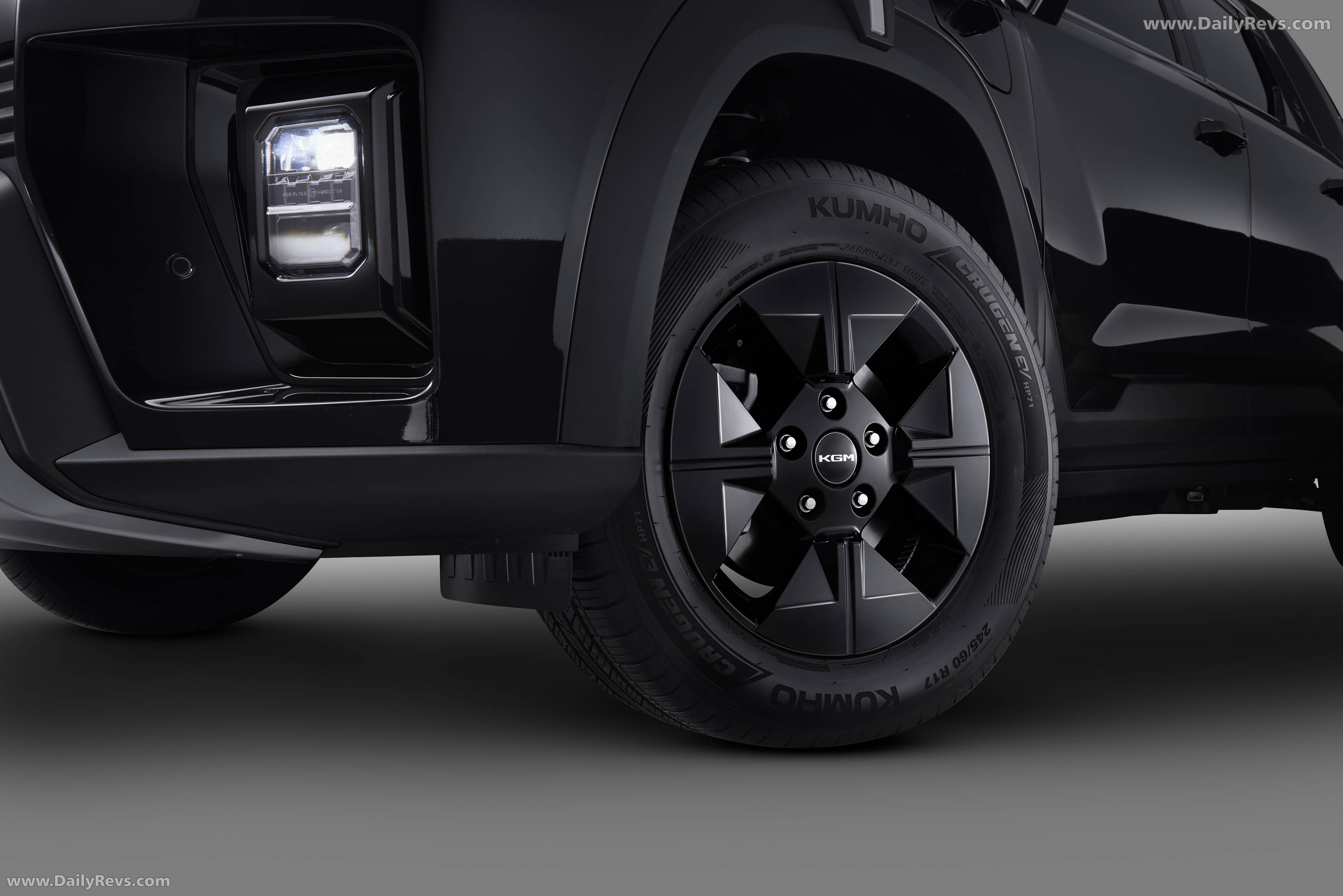

Wheels & Tyres

• Wheel Design: Diamond-cut alloy
• Wheel Size: 17"
• Tyre Size: 245/60 R17
• Spare: Inflator kit

Dimensions

• Length: 5,160 mm
• Width: 1,920 mm
• Height: 1,750 mm
• Wheelbase: 3,150 mm
• Approach / Departure / Breakover: 20.2° / 24.3° / 15.1°
• Ground Clearance: 181 mm
• Track (Front/Rear): 1,635 mm / 1,665 mm
• Overhang (Front/Rear): 935 mm / 1,075 mm

Tub Dimensions

• Length: 1,515 mm
• Width: 1,345 mm
• Depth: 510 mm

Weights

• Kerb Weight: 2WD 2,165 kg / AWD 2,285 kg
• GVM: 2WD 3,070 kg / AWD 3,090 kg
• GCM: 2WD 4,870 kg / AWD 4,890 kg
• Payload: 2WD 905 kg / AWD 805 kg

Towing

• Unbraked: 750 kg
• Braked: 1,800 kg
• Tow Ball Download: 180 kg

Safety & Assistance (Standard Across 2WD & AWD)

• Lane Keeping Assist
• Lane Departure Warning
• High Beam Assist
• Safety Distance Alert
• Blind Spot Detection & Collision Assist
• Lane Change Collision Warning
• Forward Collision Warning
• Autonomous Emergency Braking (pedestrian detection)
• Front Vehicle Start Warning
• Front Cross Traffic Warning with brake & steering intervention
• Rear Cross-Traffic Collision Assist
• Safety Exit Warning
• Centering Lane Keeping Assist
• Multi Collision Braking
• Trailer Sway Control
• ESC, ABS, TCS, ESS, ARP
• Hill Start Assist & Hill Descent Control
• Auto Vehicle Hold
• Brakeforce Assist

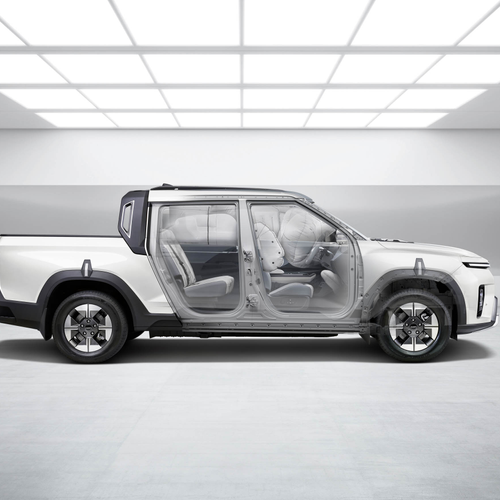

Airbags & Restraints

• Driver & passenger SRS airbags
• Side airbags
• Curtain airbags
• Driver knee airbag
• Front centre airbag
• ISOFIX (2) and top tethers (3)
• Seatbelt pretensioners and reminders (all positions)

Interior & Comfort

• Leather-look seats (2WD) / Leather & Suede (Black Edge)
• Heated & ventilated front seats
• Heated outer rear seats
• Sliding & reclining 60/40 rear bench
• Heated leather steering wheel
• 12.3" digital cluster
• 12.3" touchscreen
• Apple CarPlay & Android Auto
• Ambient lighting (32 colors)
• Dual-zone climate control
• Rear air vents
• Smart key with push-button start
• Regenerative braking paddles

Exterior

• LED headlights & DRLs
• LED indicators & tail lights
• Black roof rails
• Roof spoiler
• Acoustic windscreen

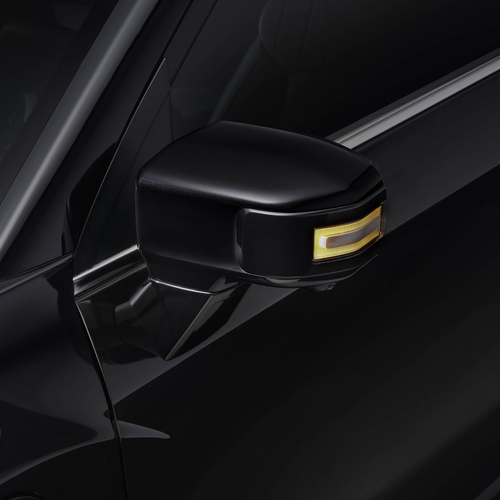

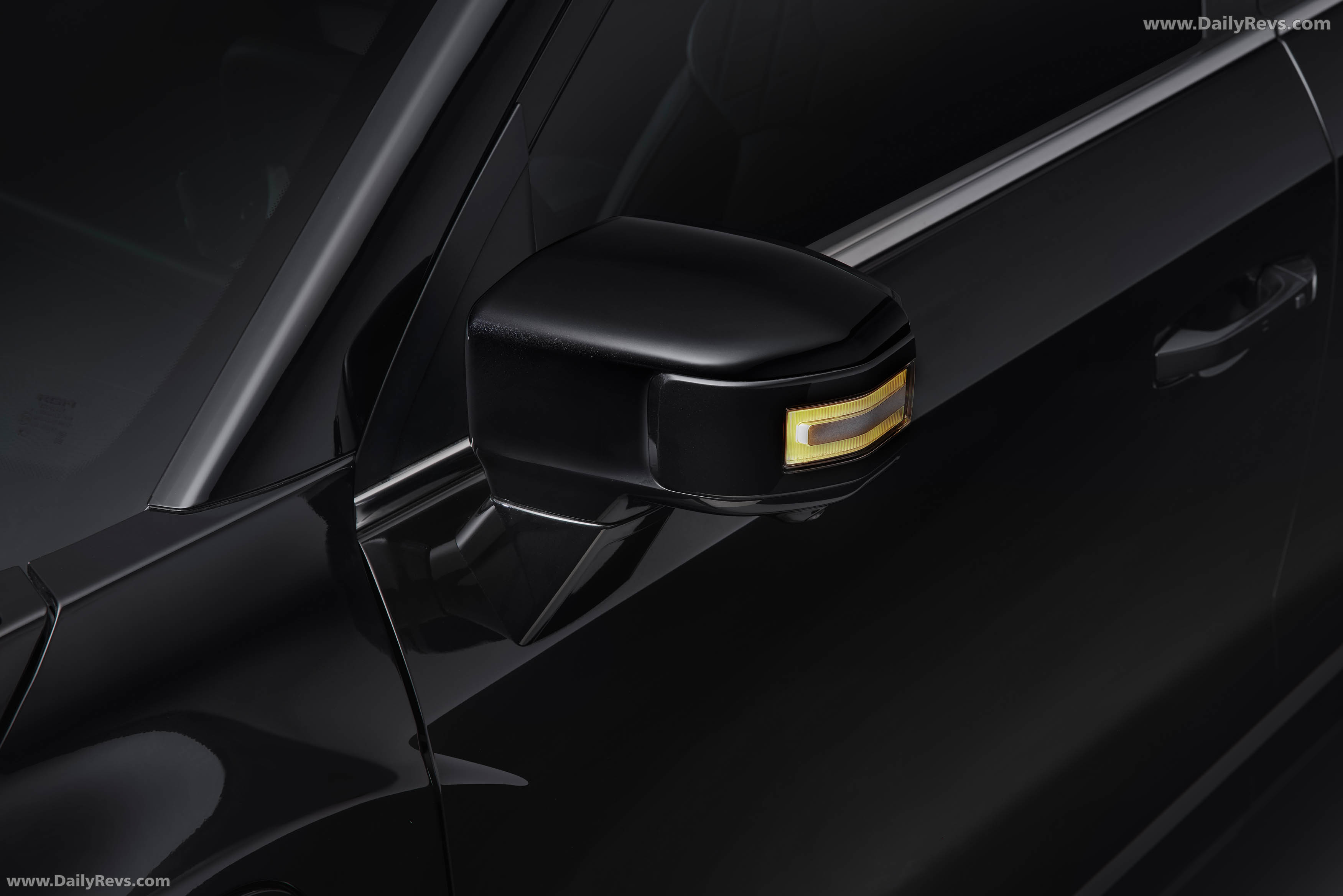

• Power-folding heated mirrors
