1969 Ford Mustang Mach 1 KINGPIN by Ringbrothers

• The 1969 Ford Mustang Mach 1 KINGPIN by Ringbrothers delivers over 800 hp from a Whipple-supercharged 5.0-litre Coyote V8.

• Built on a Roadster Shop FAST TRACK Stage III chassis with Brembo brakes and Fox coilovers.

• Completed after 5,500 hours of craftsmanship, blending metal, carbon fibre, and custom 3D-printed details.

A Reimagined Mach 1 for the Modern Era

The 1969 Ford Mustang Mach 1 KINGPIN by Ringbrothers isn’t a restomod — it’s a complete rethinking of Ford’s muscle icon. Revealed at the 2025 SEMA Show in Las Vegas, KINGPIN arrives as the Wisconsin builder’s latest statement on what happens when obsessive craftsmanship meets modern engineering.

The team spent 5,500 hours crafting KINGPIN, starting from a Mach 1 shell and re-engineering nearly every inch. The goal wasn’t nostalgia — it was dominance. “The client wanted something sinister,” explained co-founder Jim Ring. “We asked ourselves, what would the final boss in a John Wick film drive? This was the result.”

Power and Precision Engineering

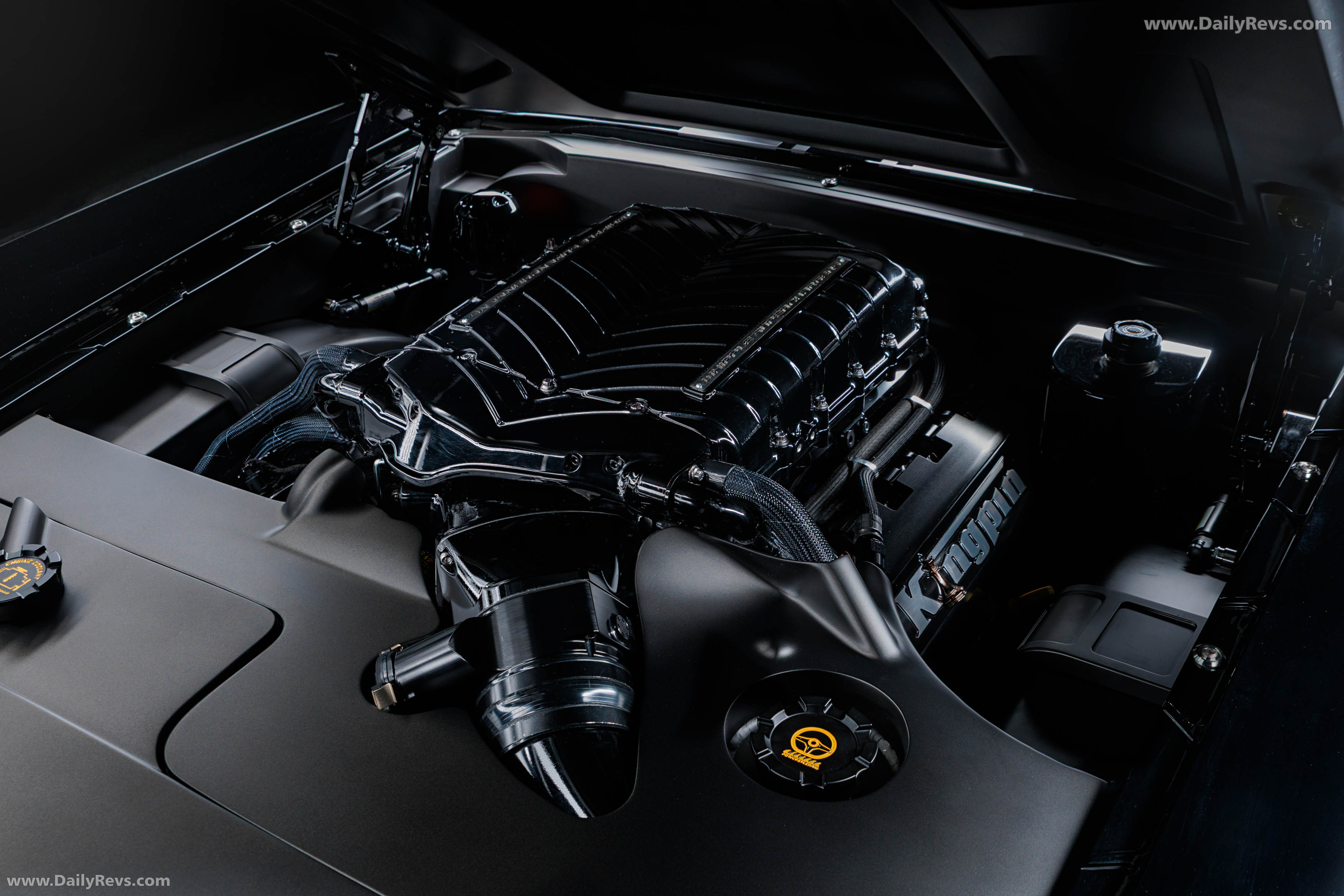

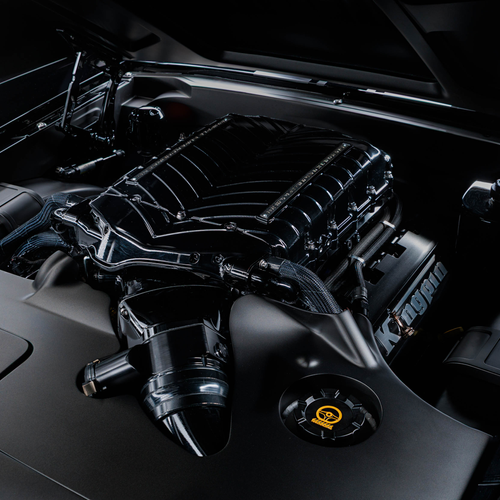

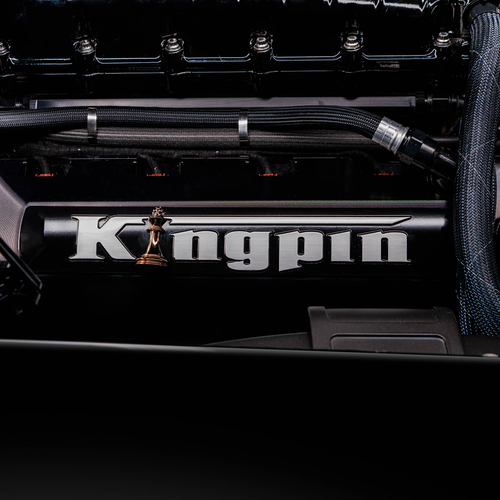

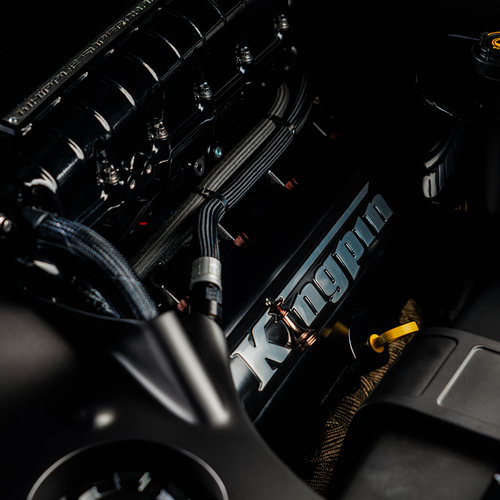

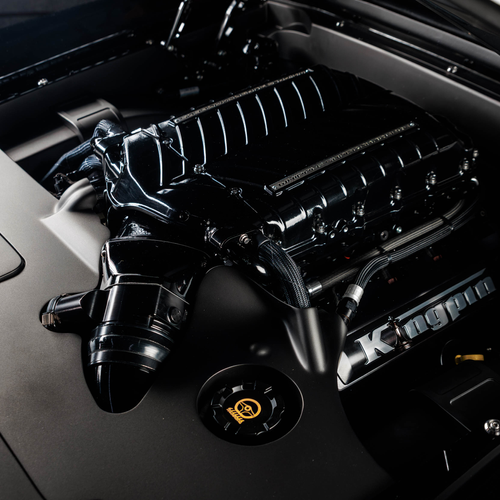

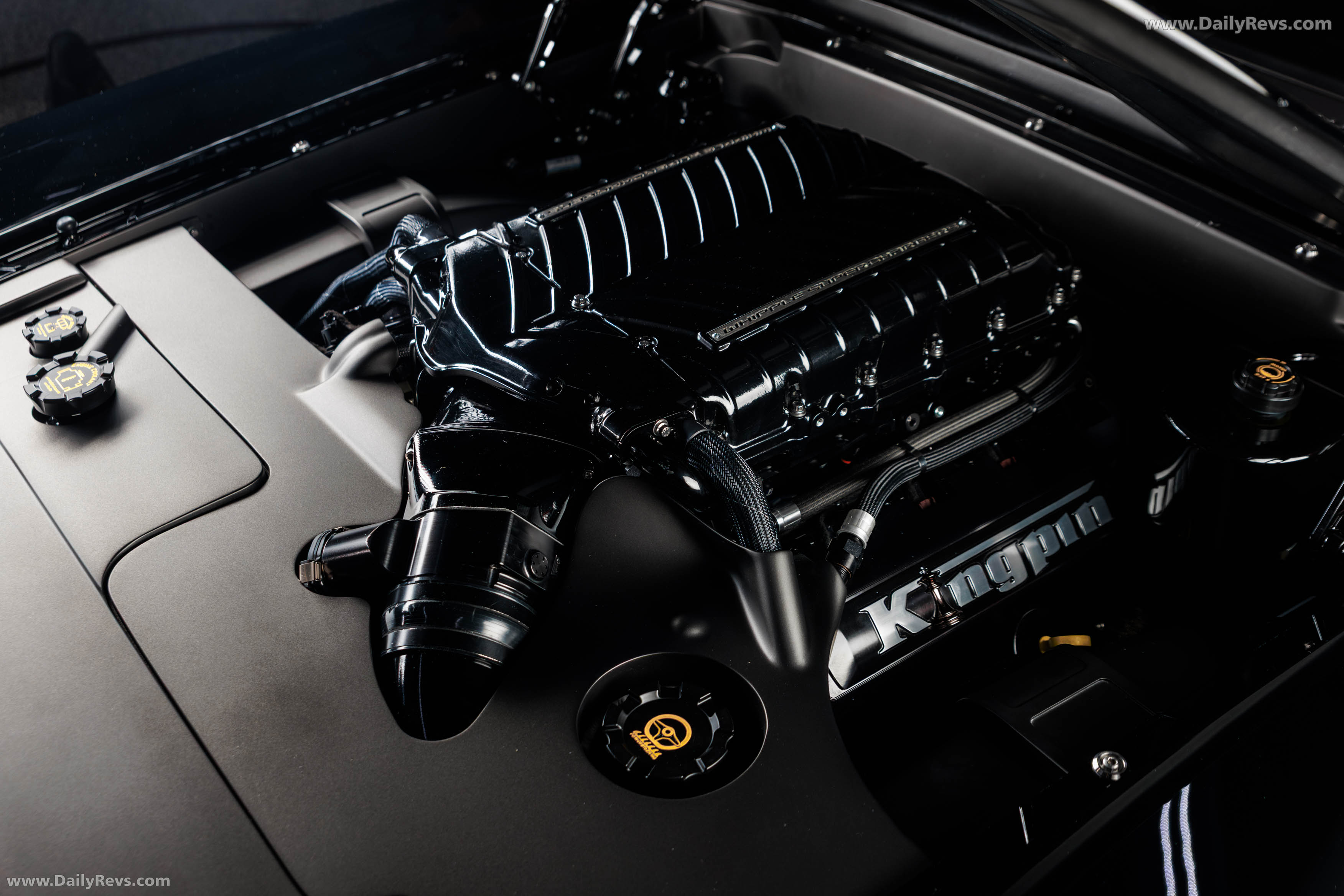

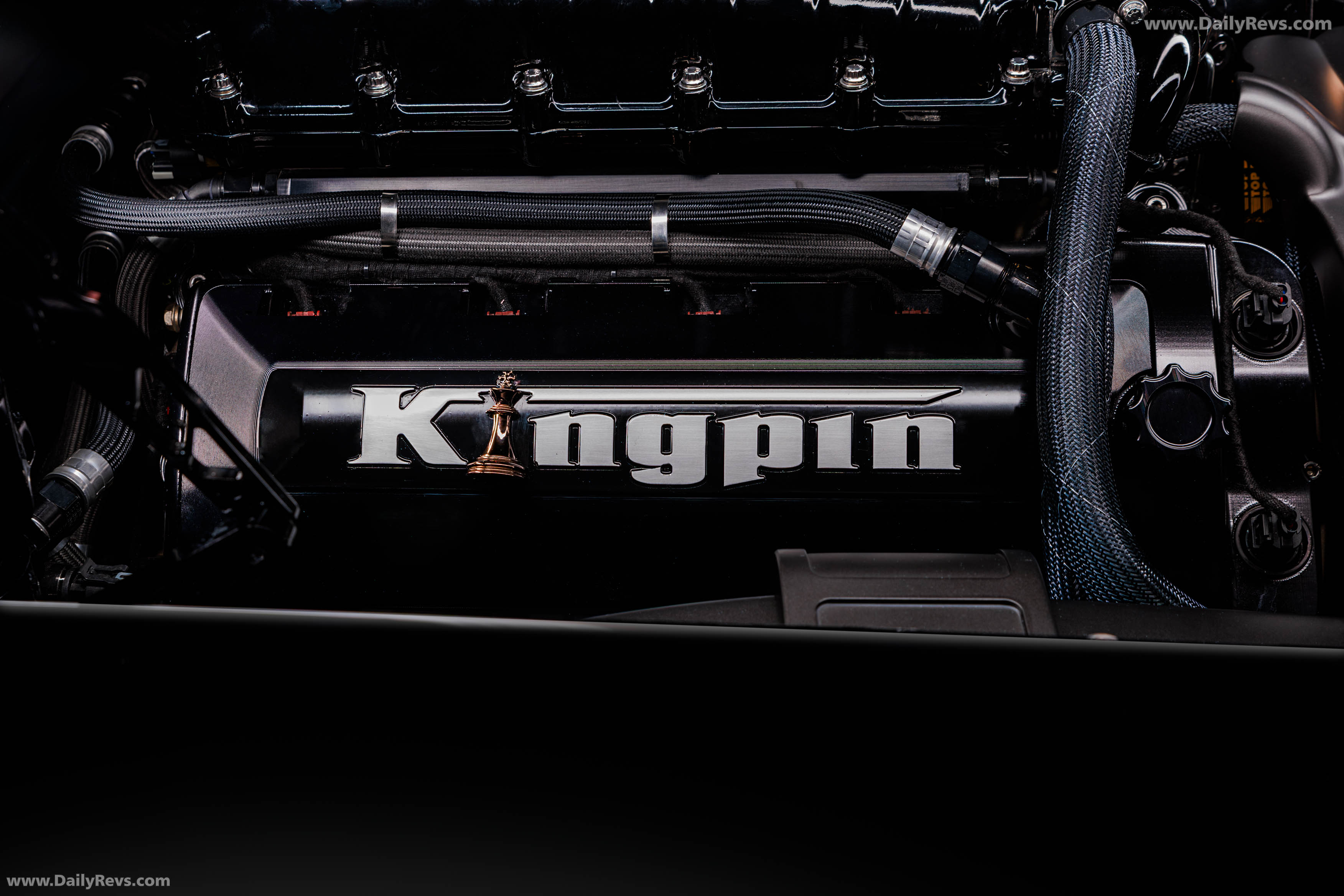

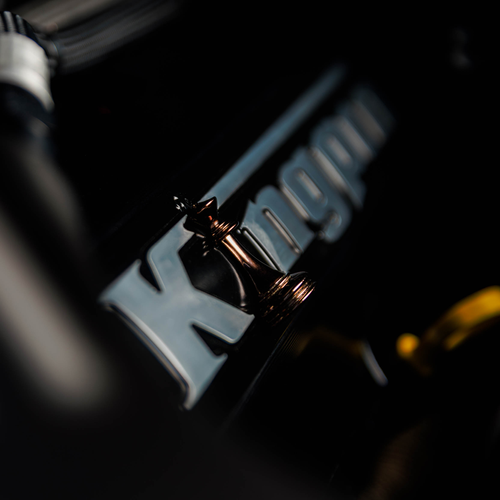

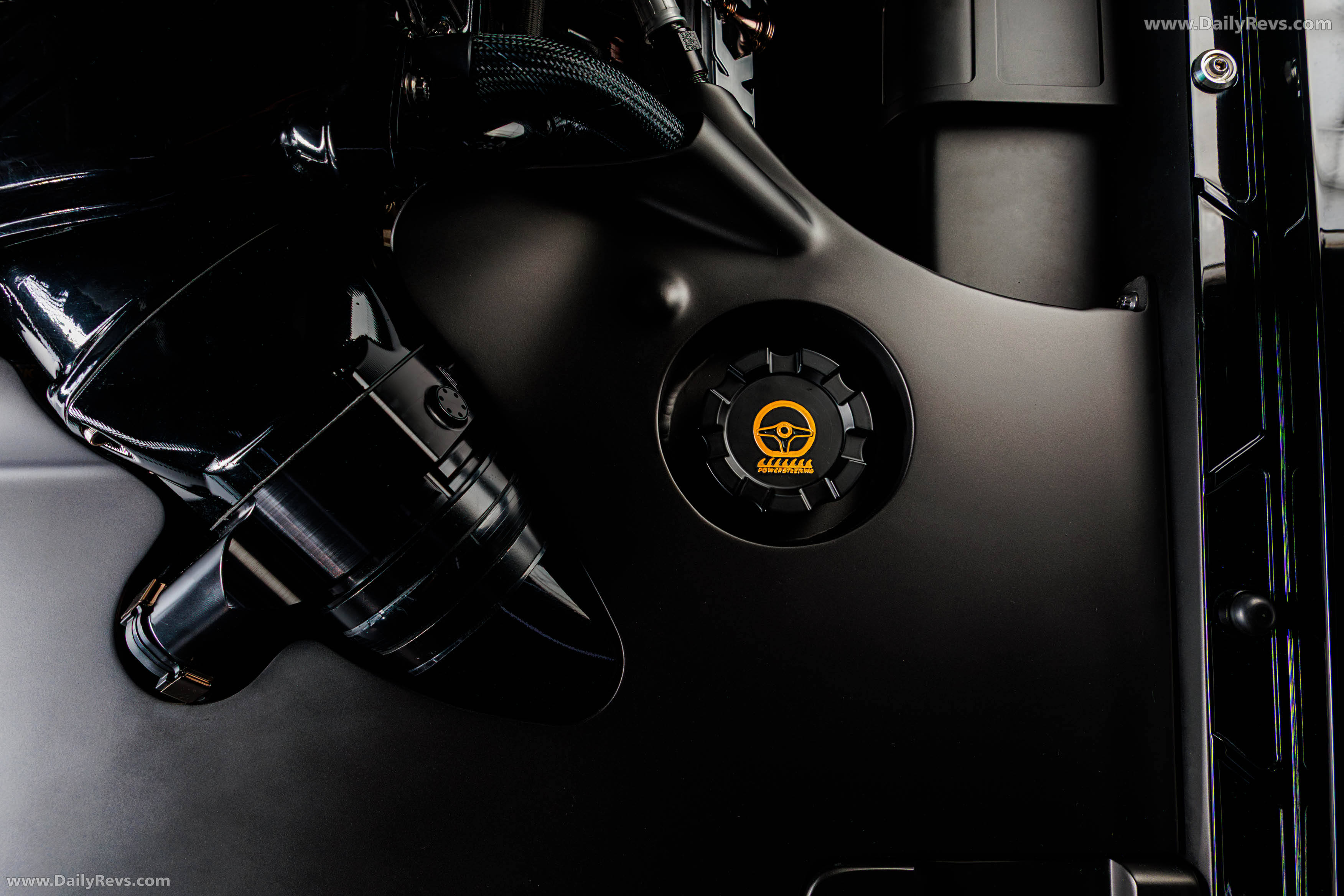

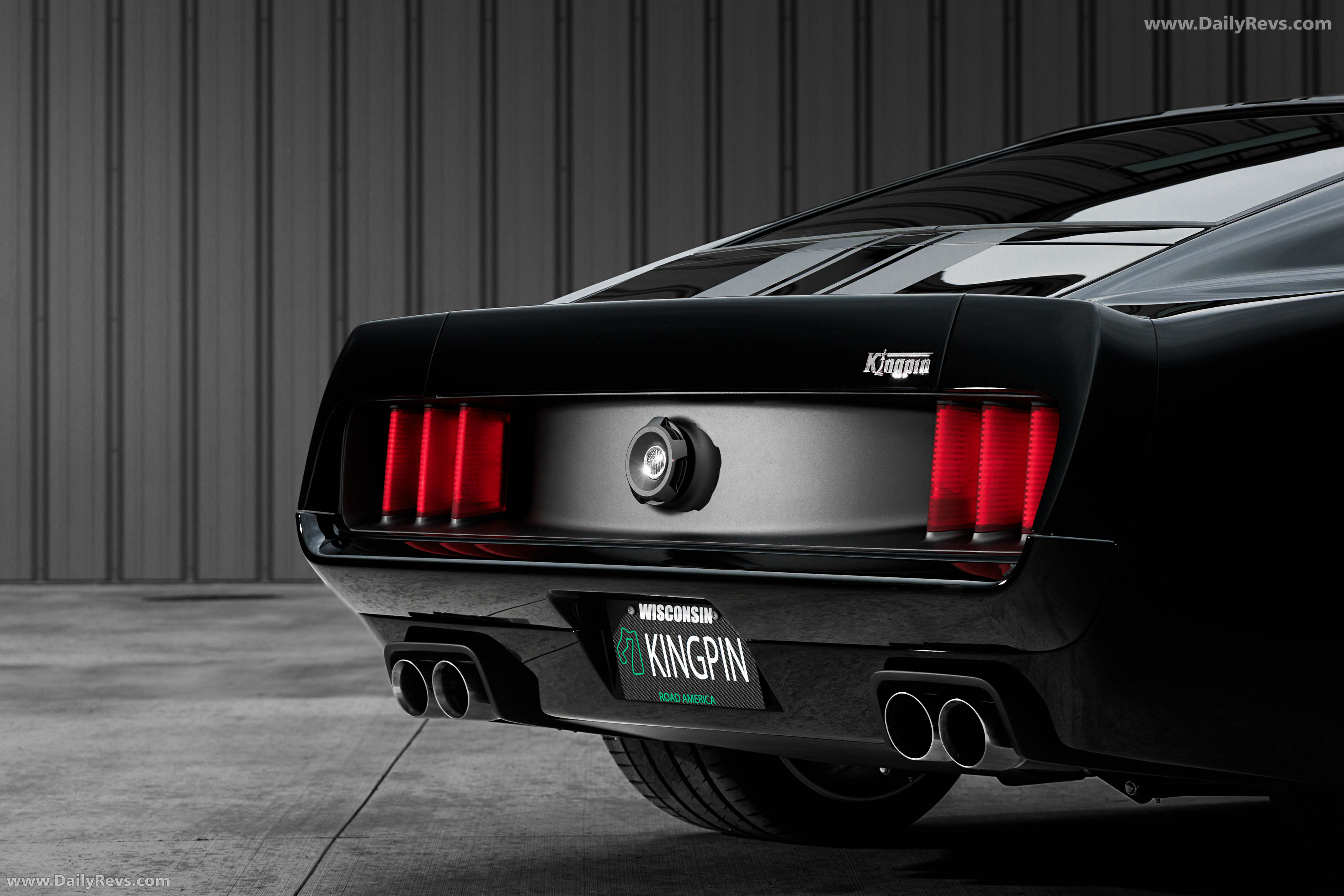

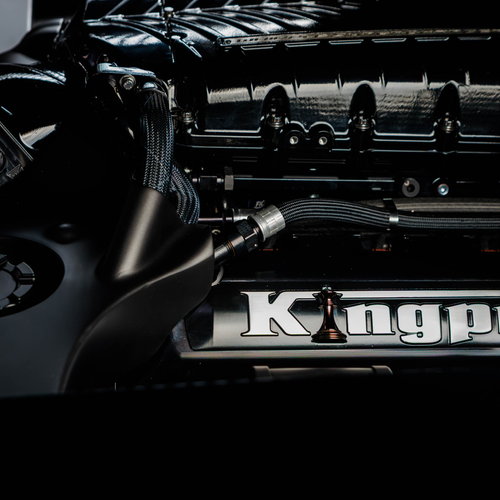

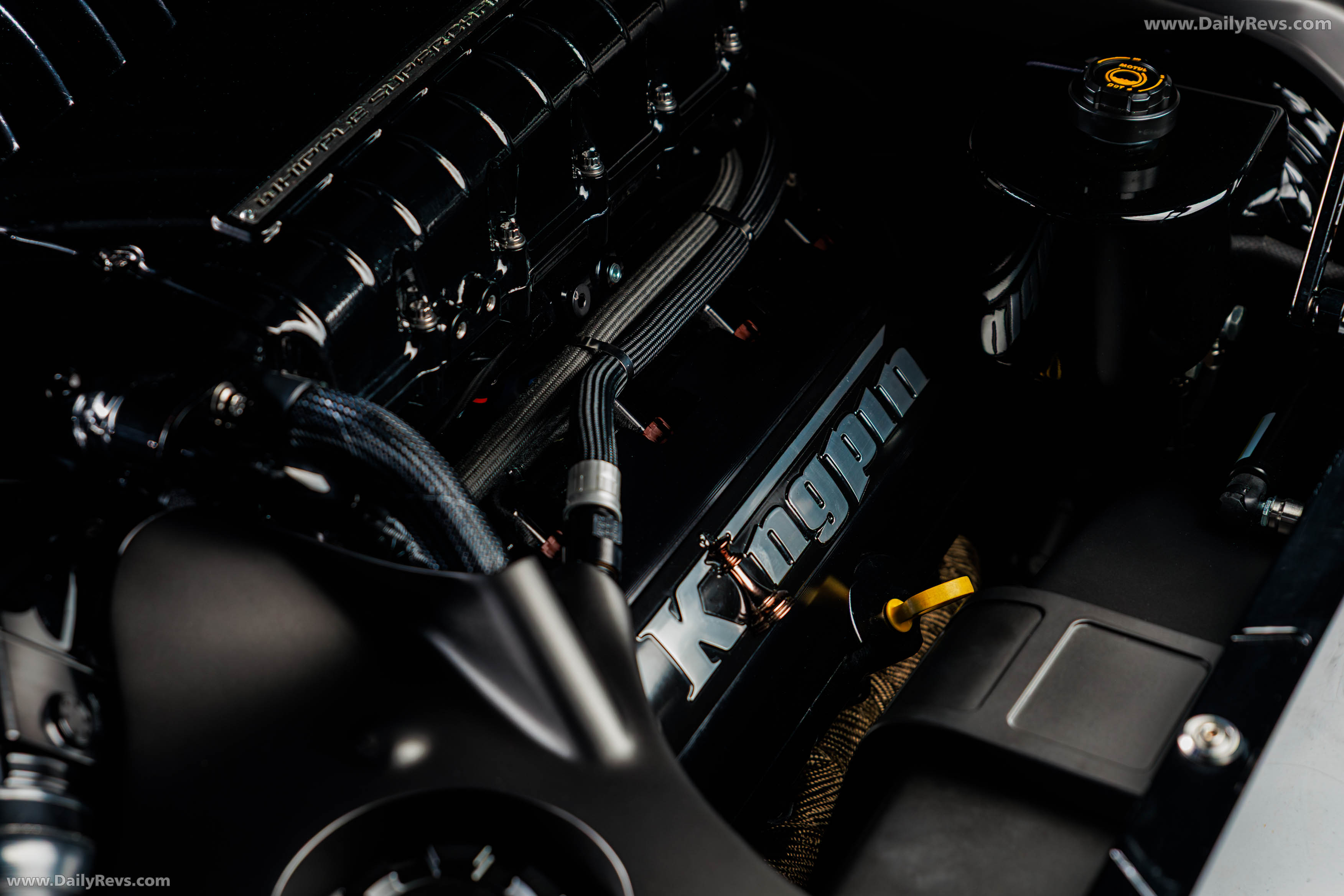

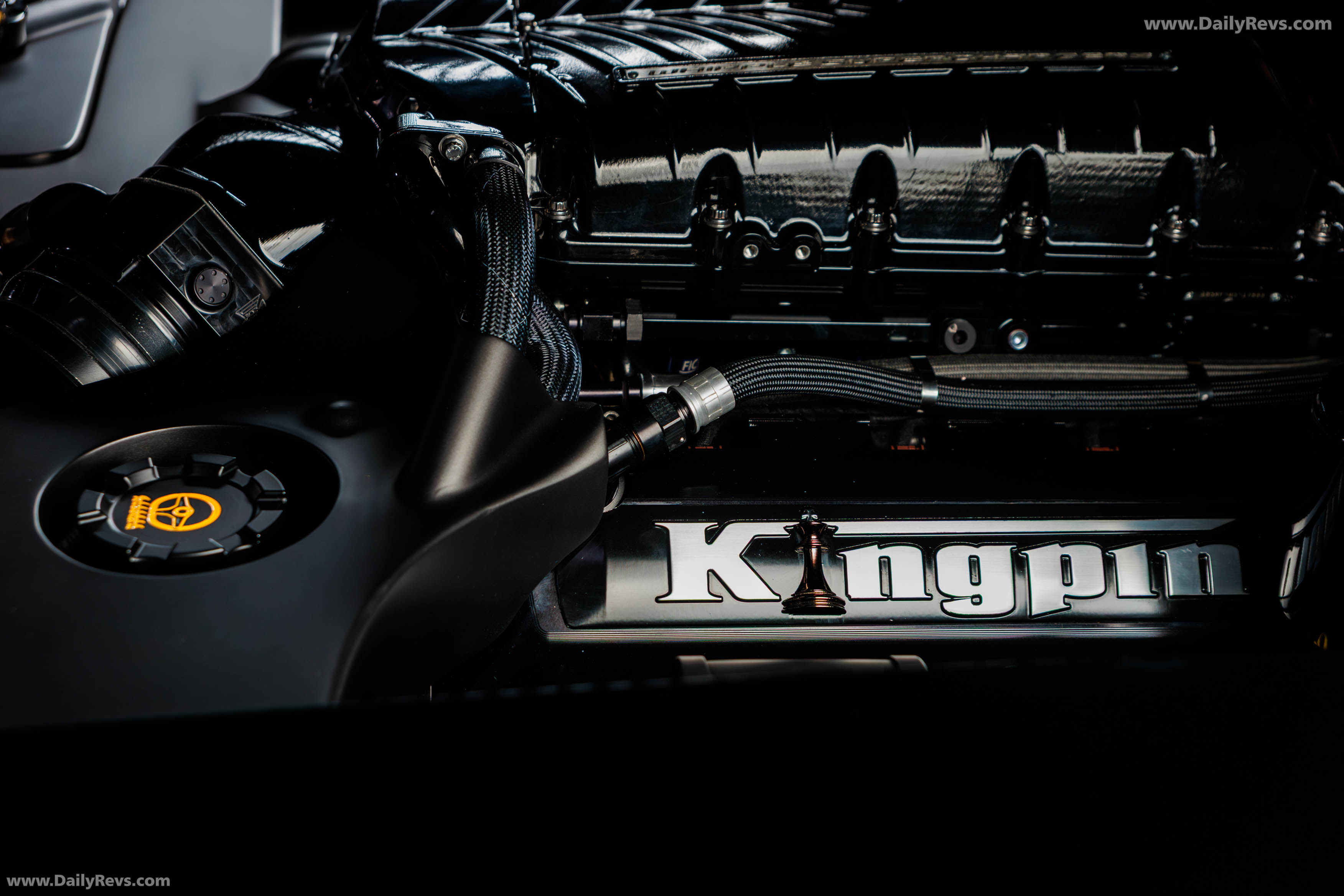

Under its Bootleg Black hood lies a Wegner Motorsports 5.0-litre Coyote V8, topped with a Whipple supercharger pushing output well beyond 800 horsepower. Power travels through a Bowler Carbon Edition six-speed manual gearbox, while custom Ringbrothers headers feed a Flowmaster Super 44 exhaust, delivering the kind of mechanical theatre only a hand-built V8 can produce.

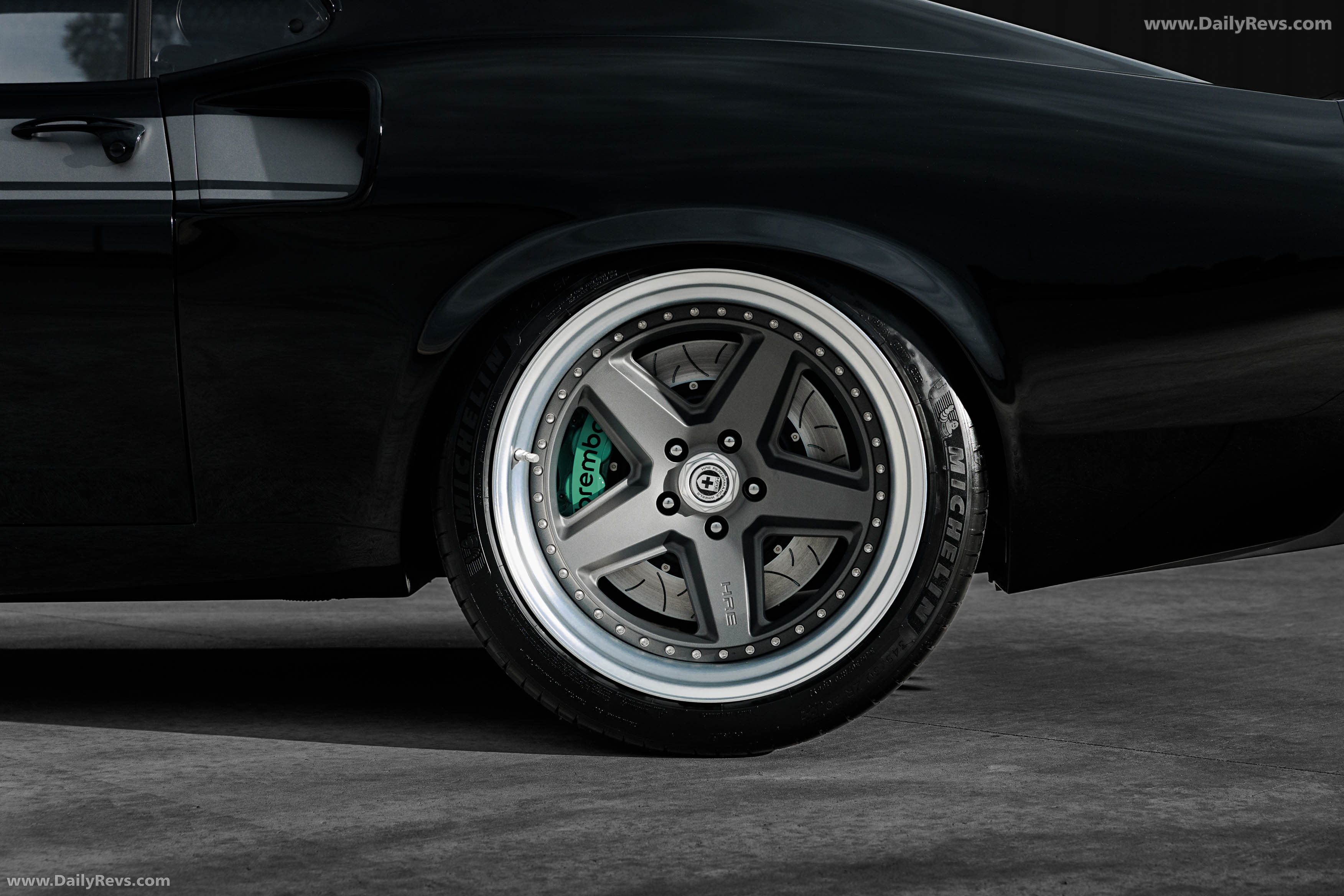

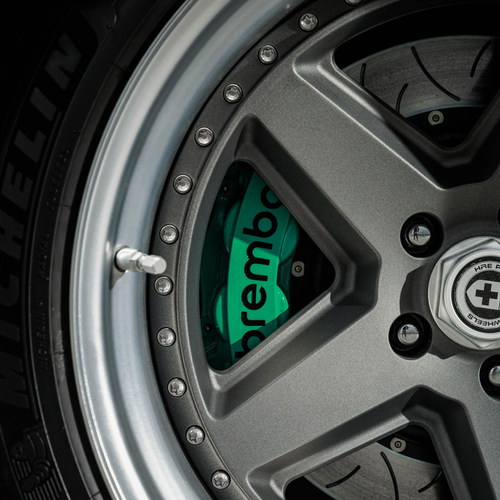

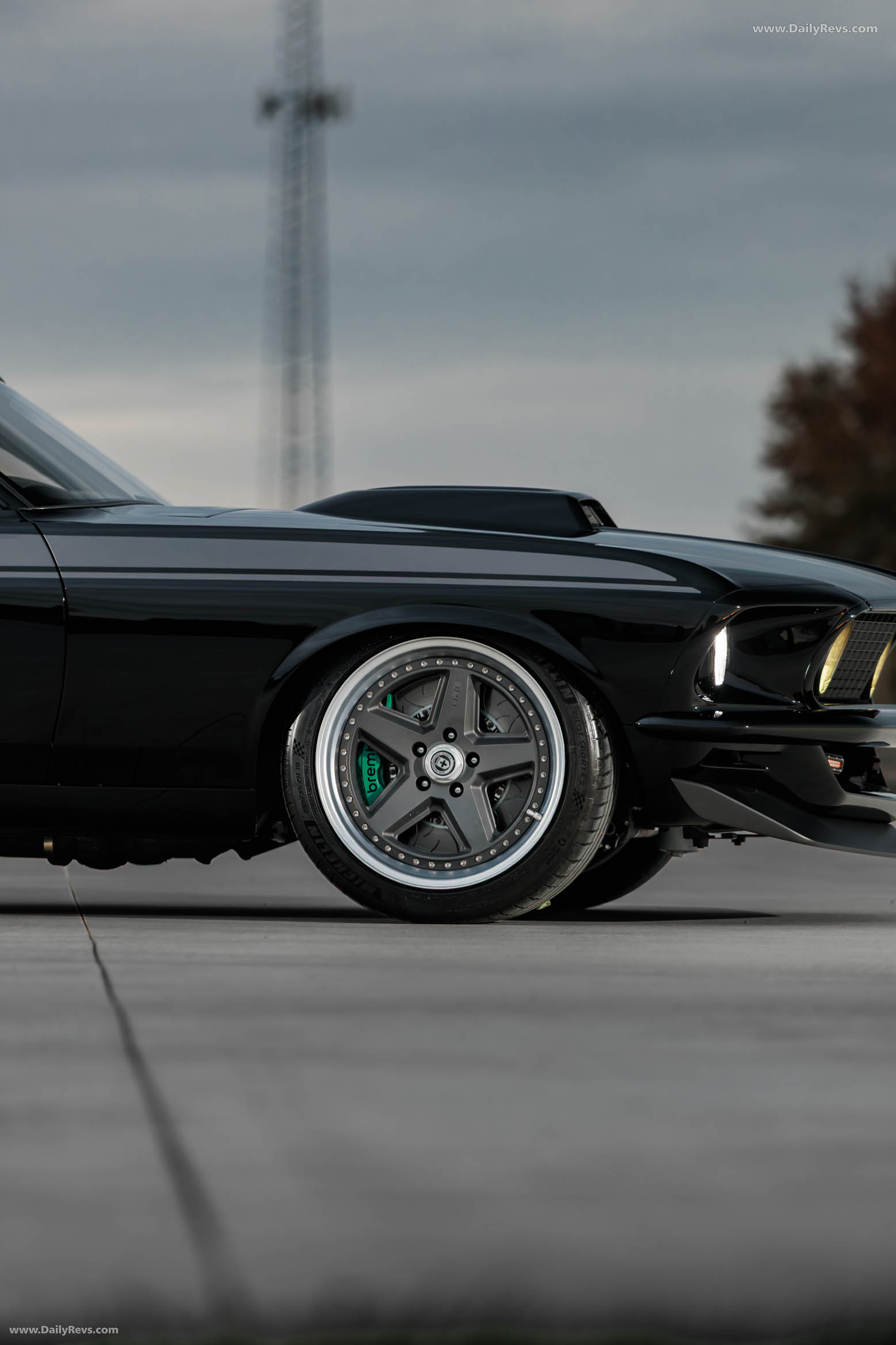

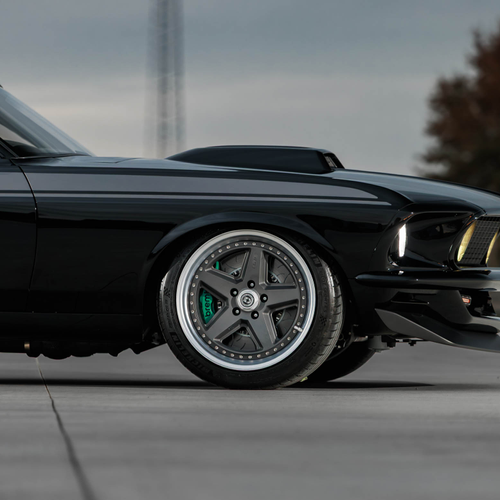

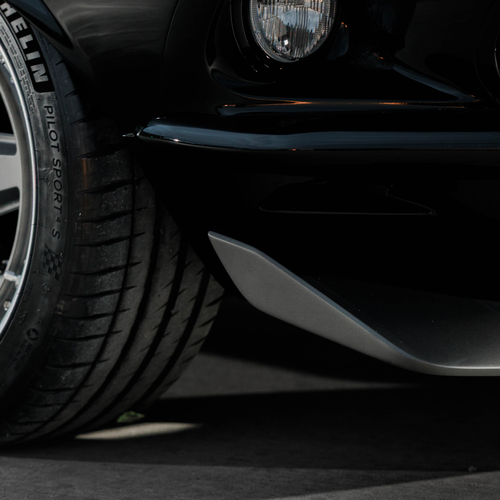

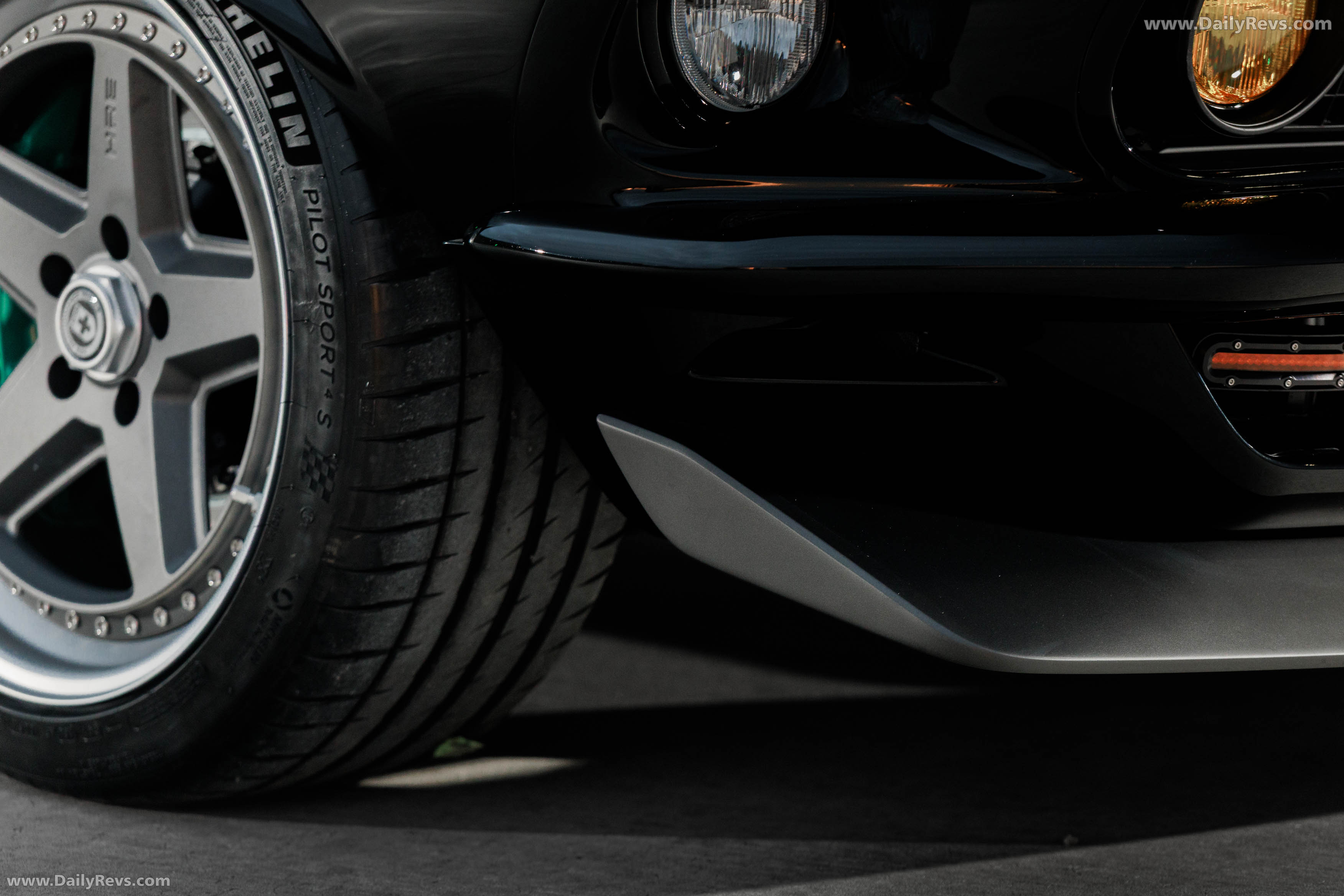

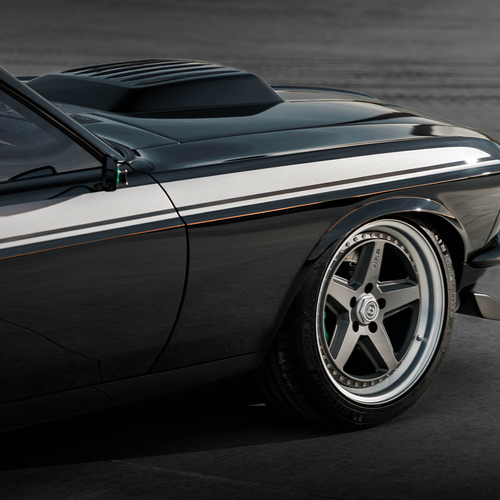

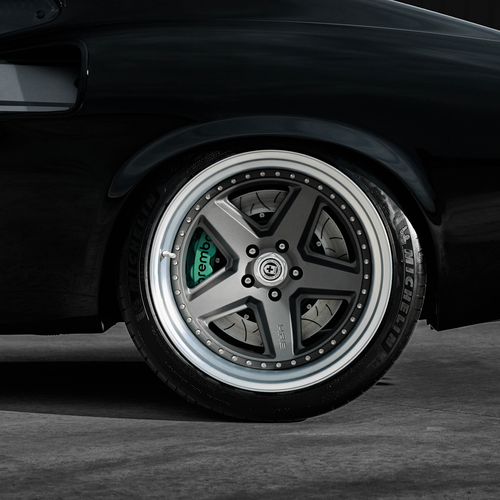

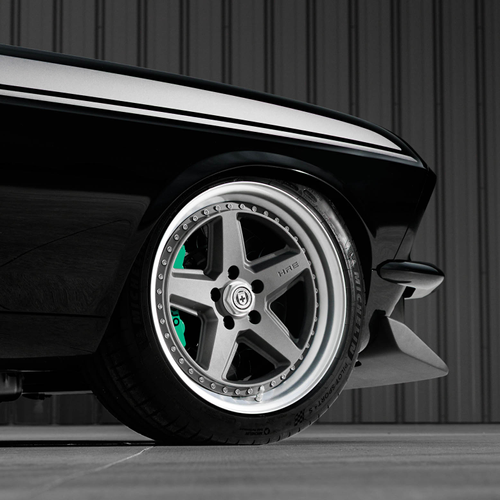

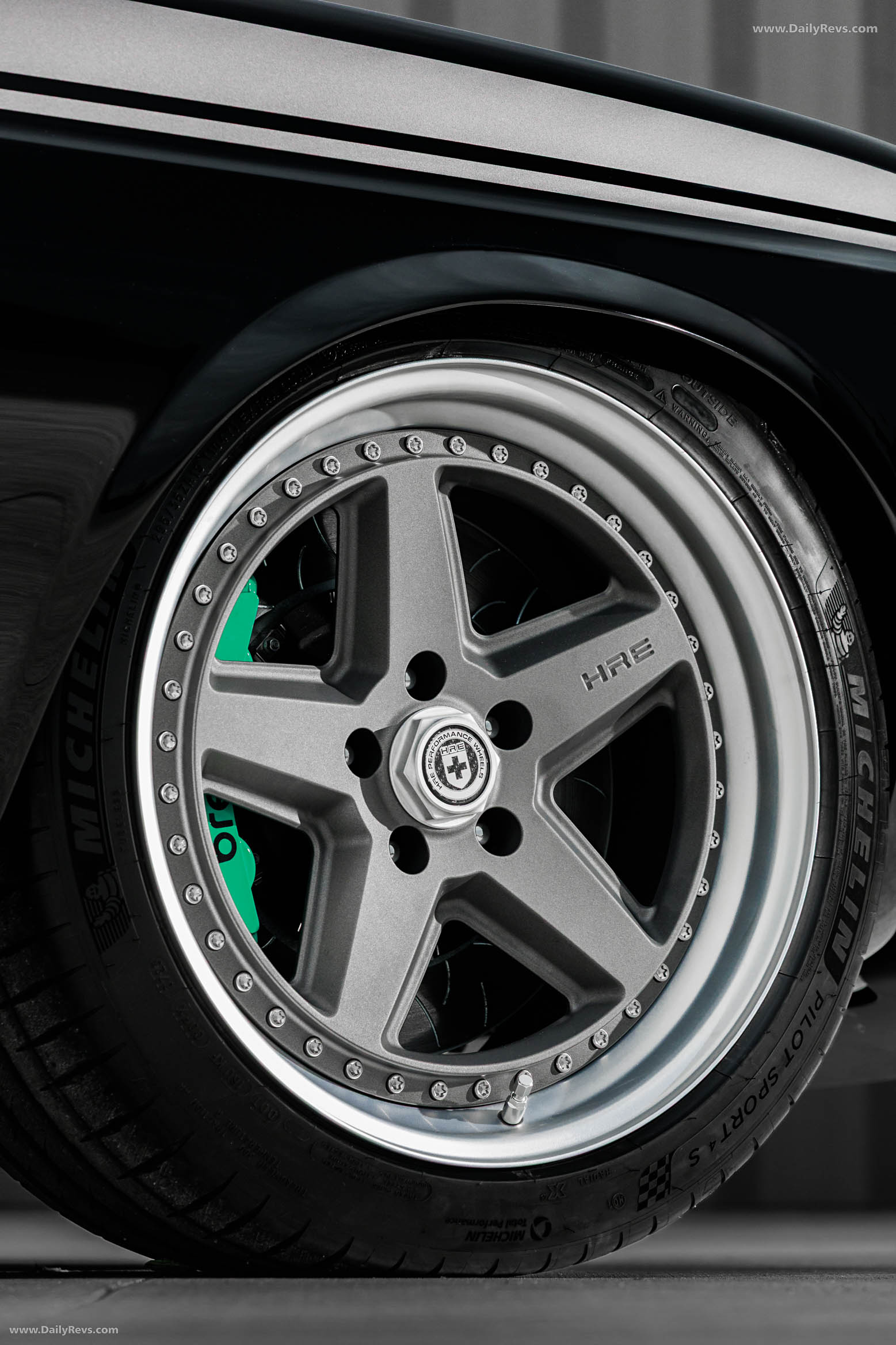

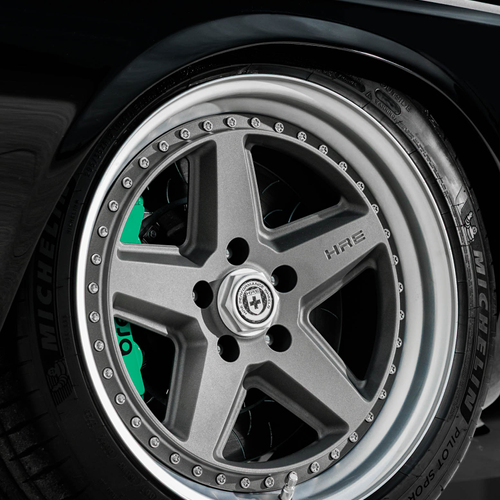

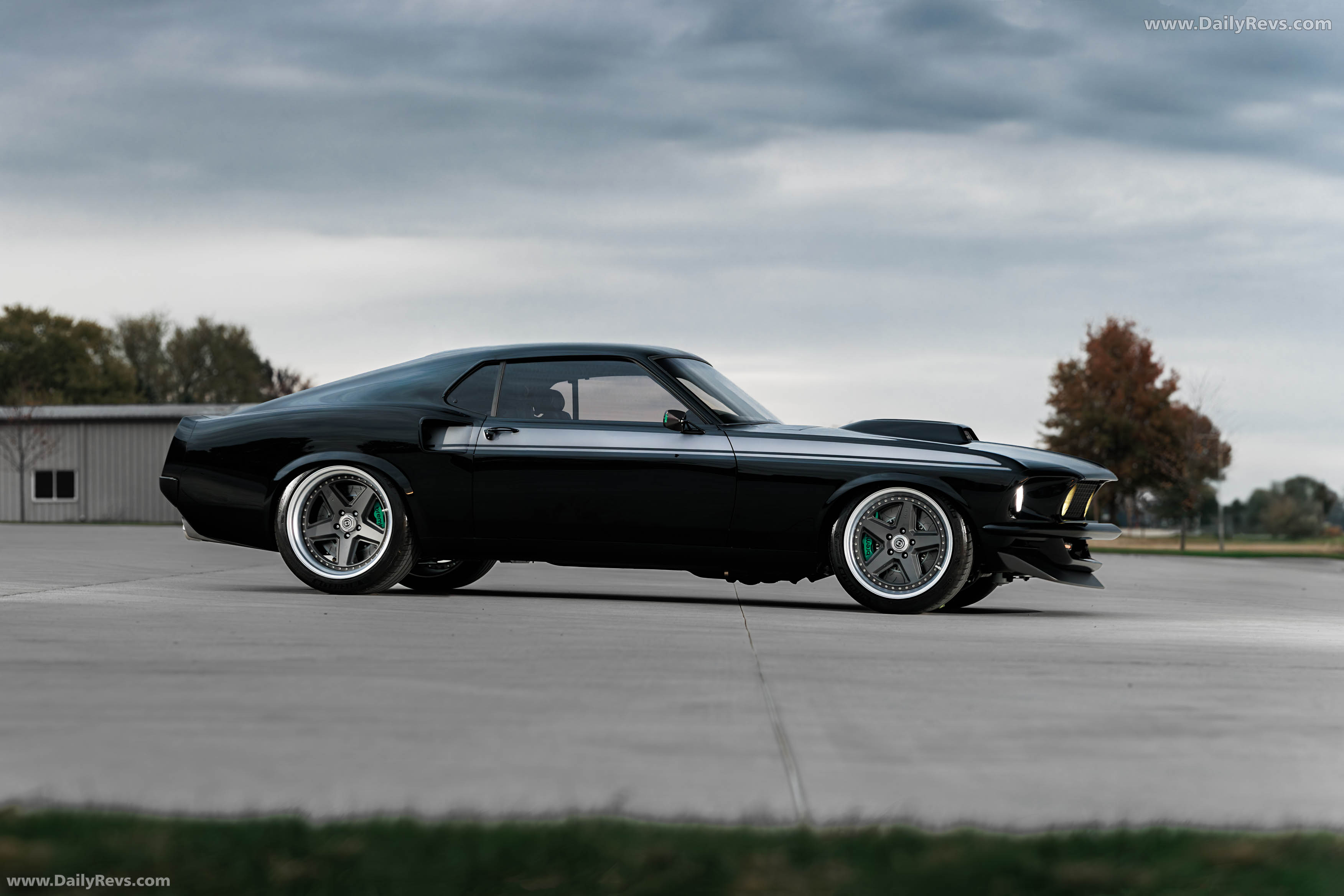

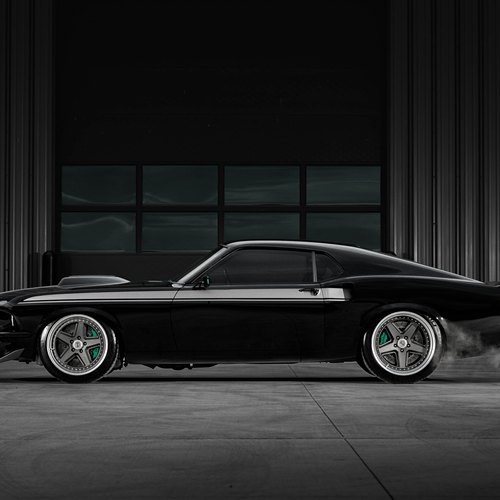

The chassis is a masterwork in itself — a Roadster Shop FAST TRACK Stage III unit converted back into a unibody structure. The body was widened two inches at the front and 3.5 inches at the rear, with the wheelbase stretched by 1.5 inches. The car rides on Michelin Pilot Sport 4S tyres, wrapped around HRE Vintage Series 517 wheels, with Fox RS coilovers and Brembo brakes providing modern control over classic aggression

A Design That Amplifies Its Era

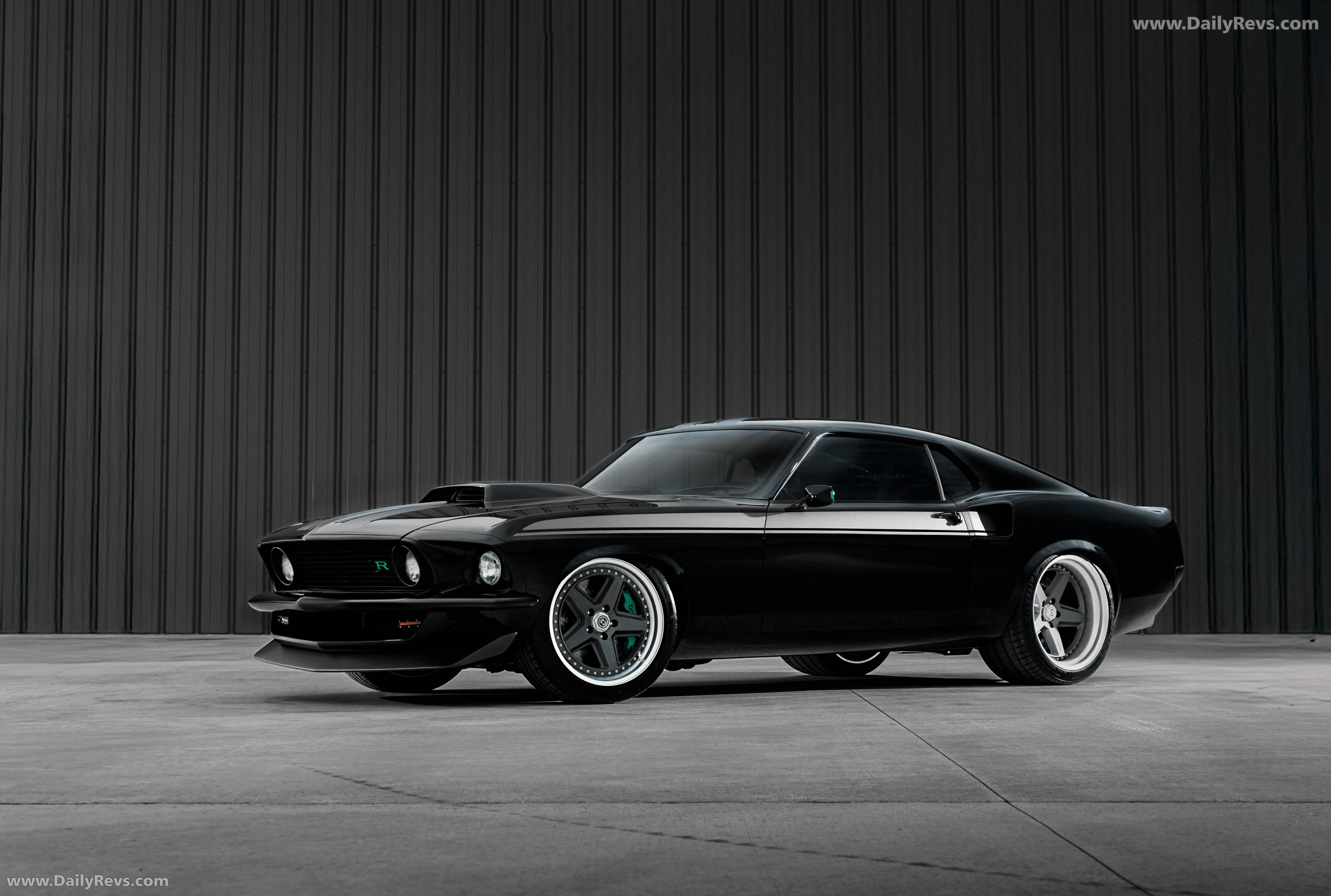

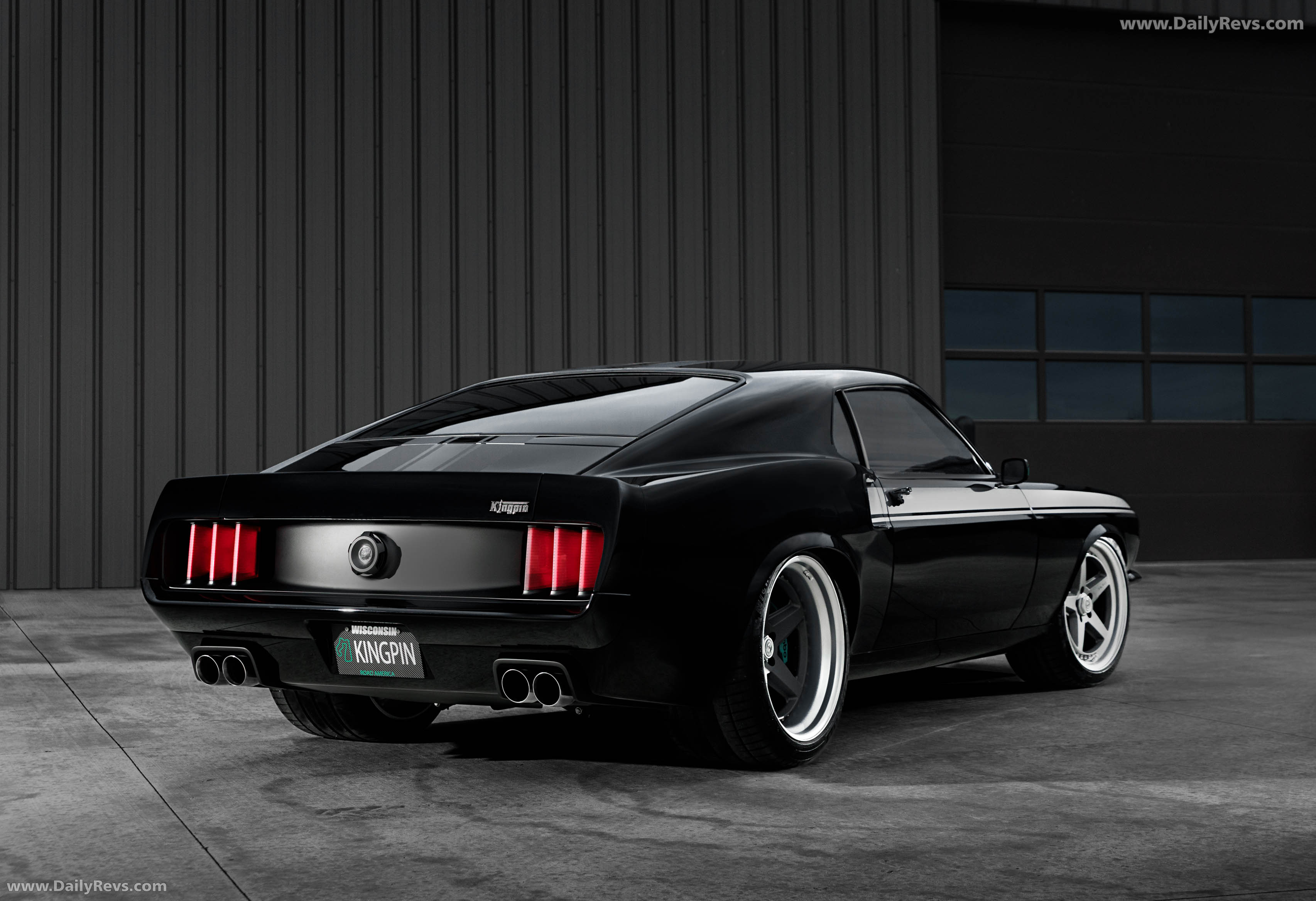

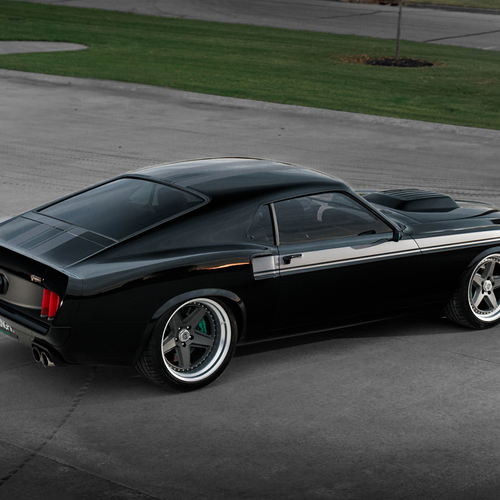

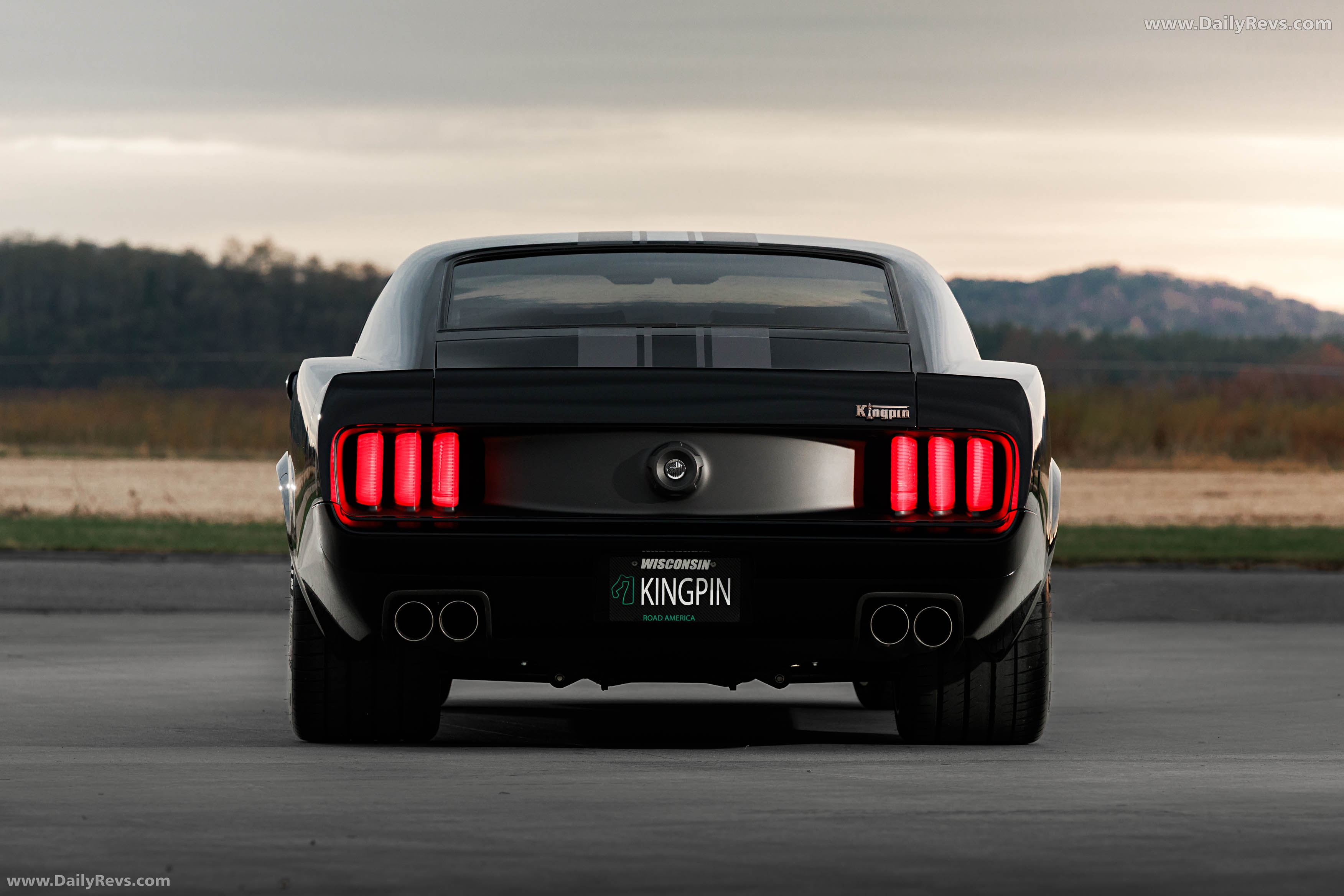

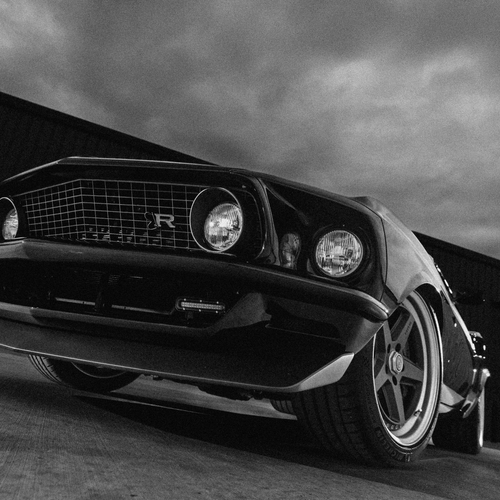

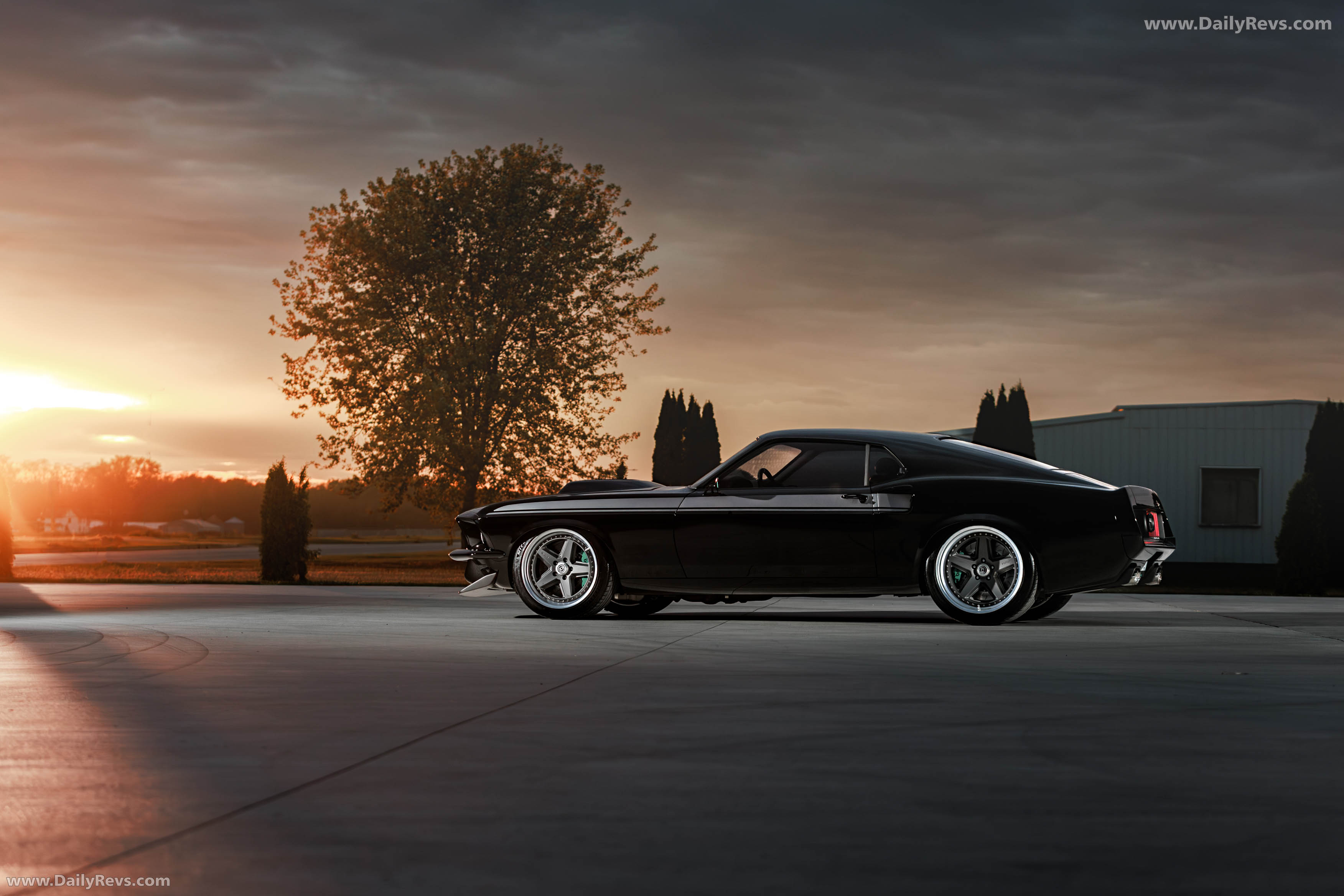

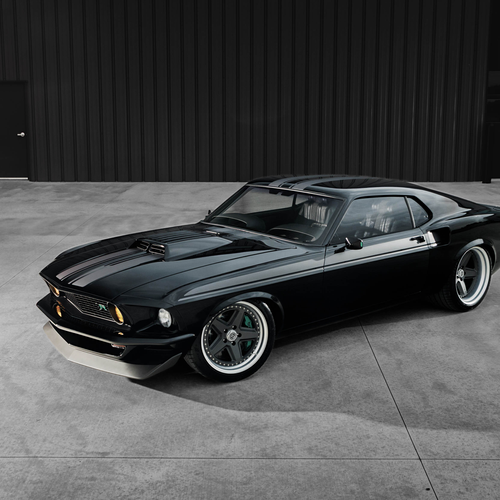

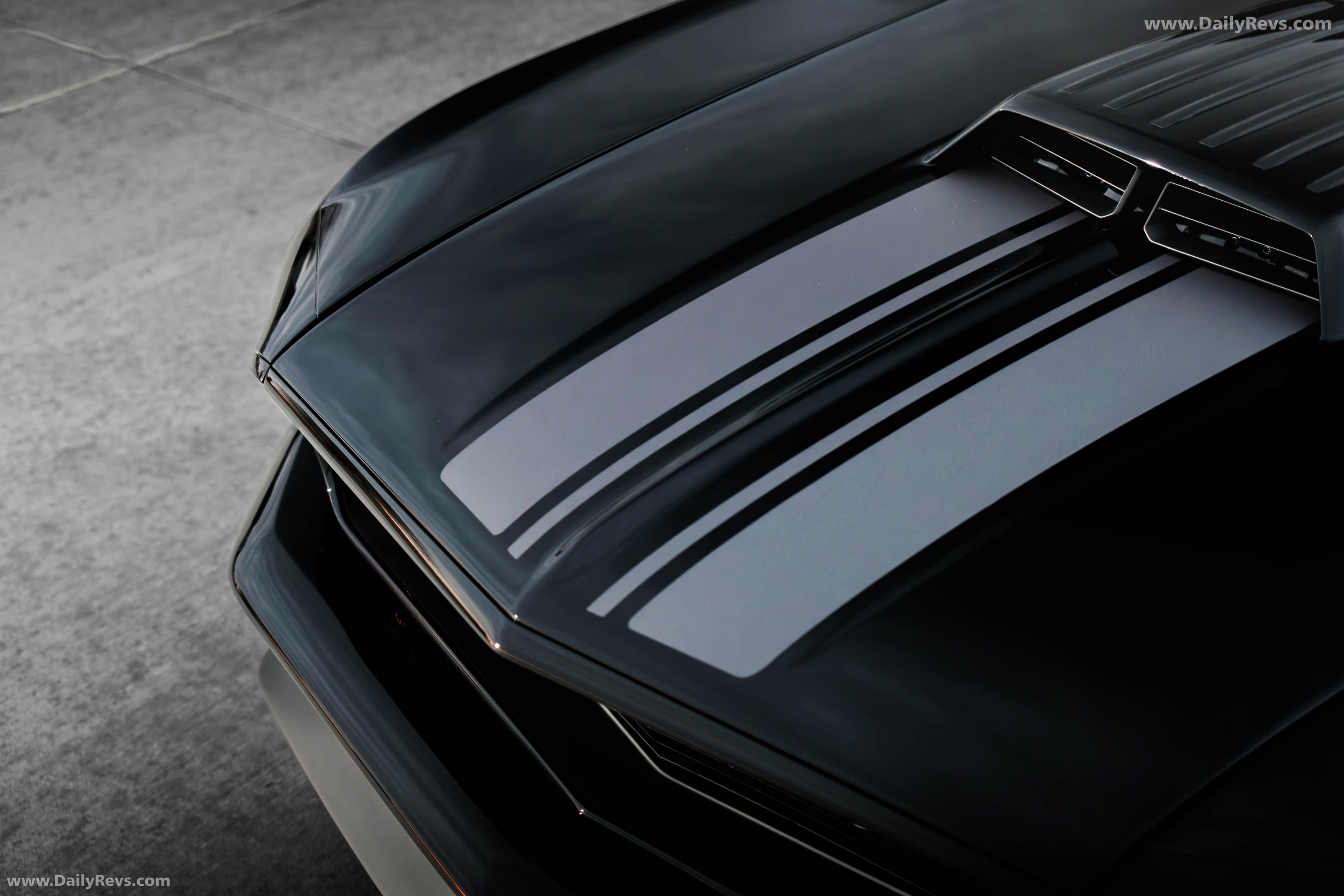

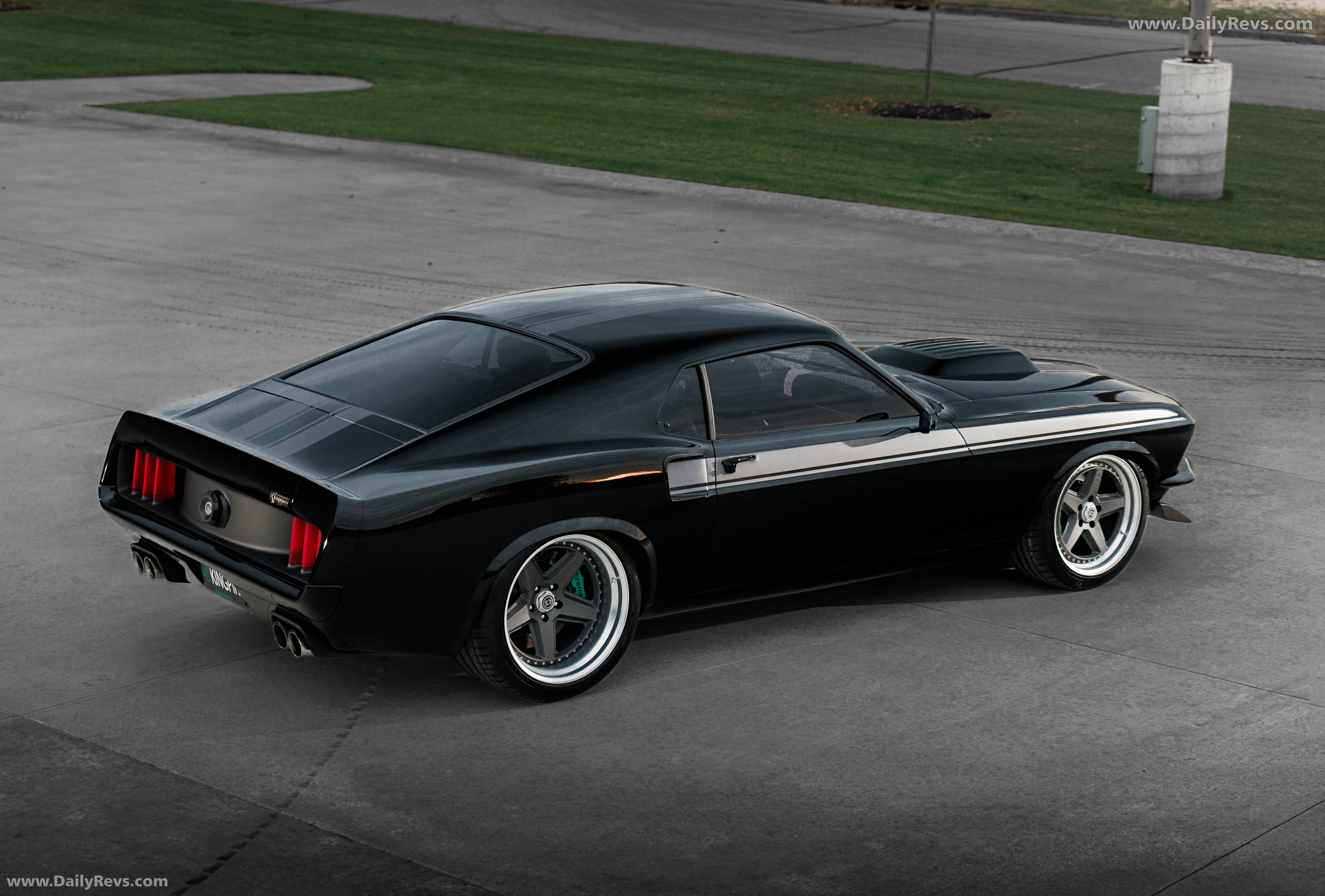

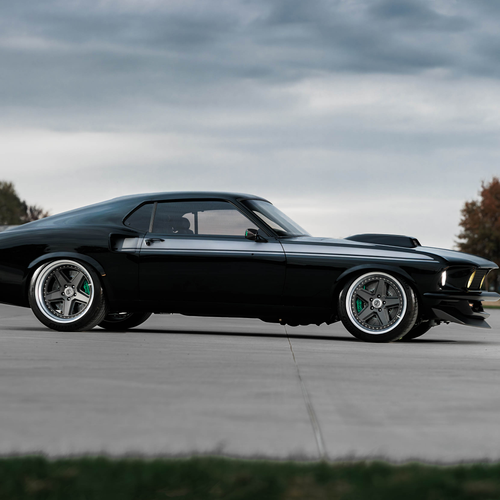

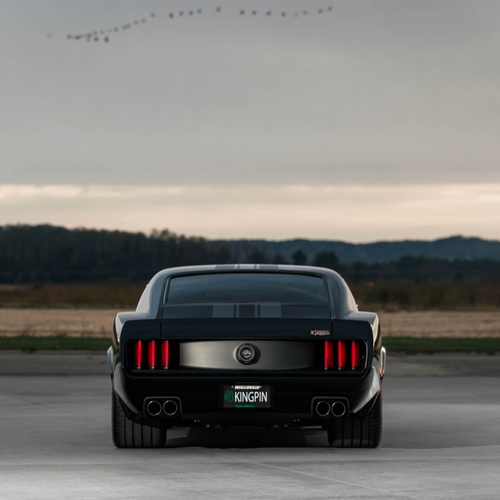

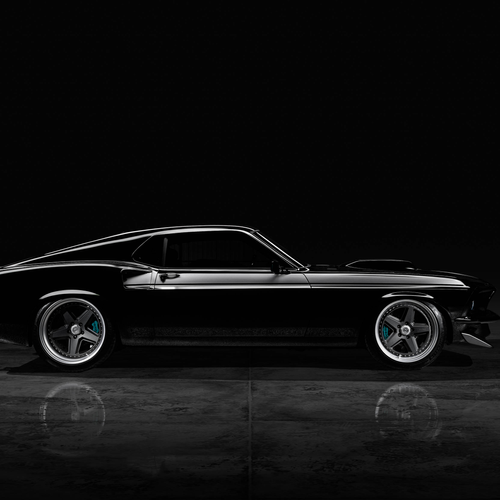

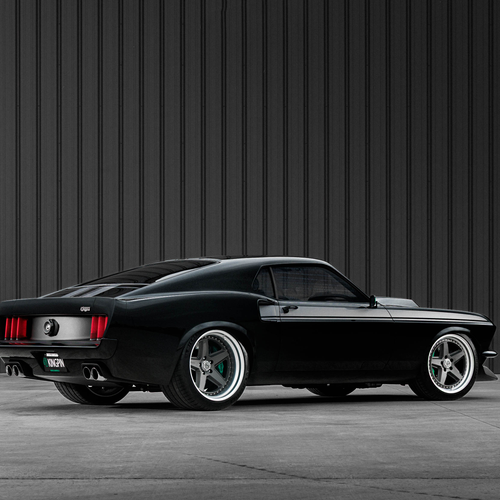

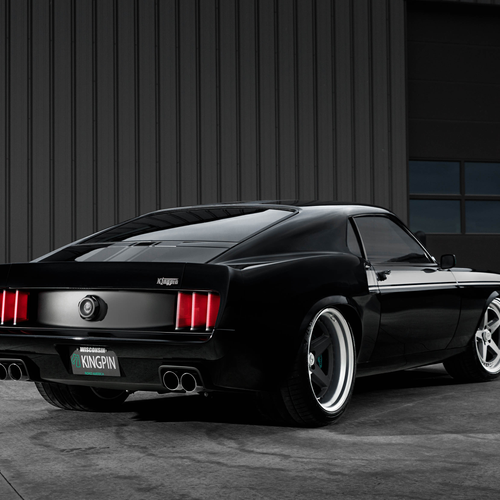

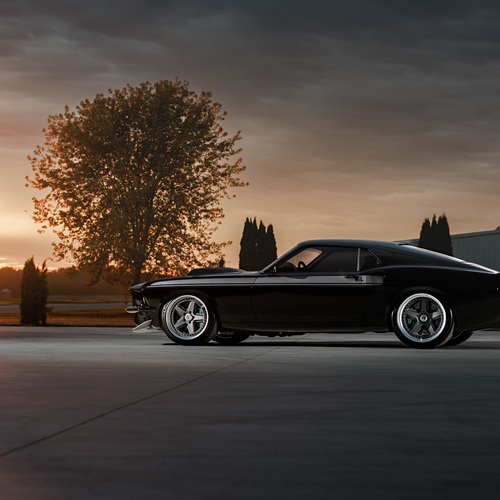

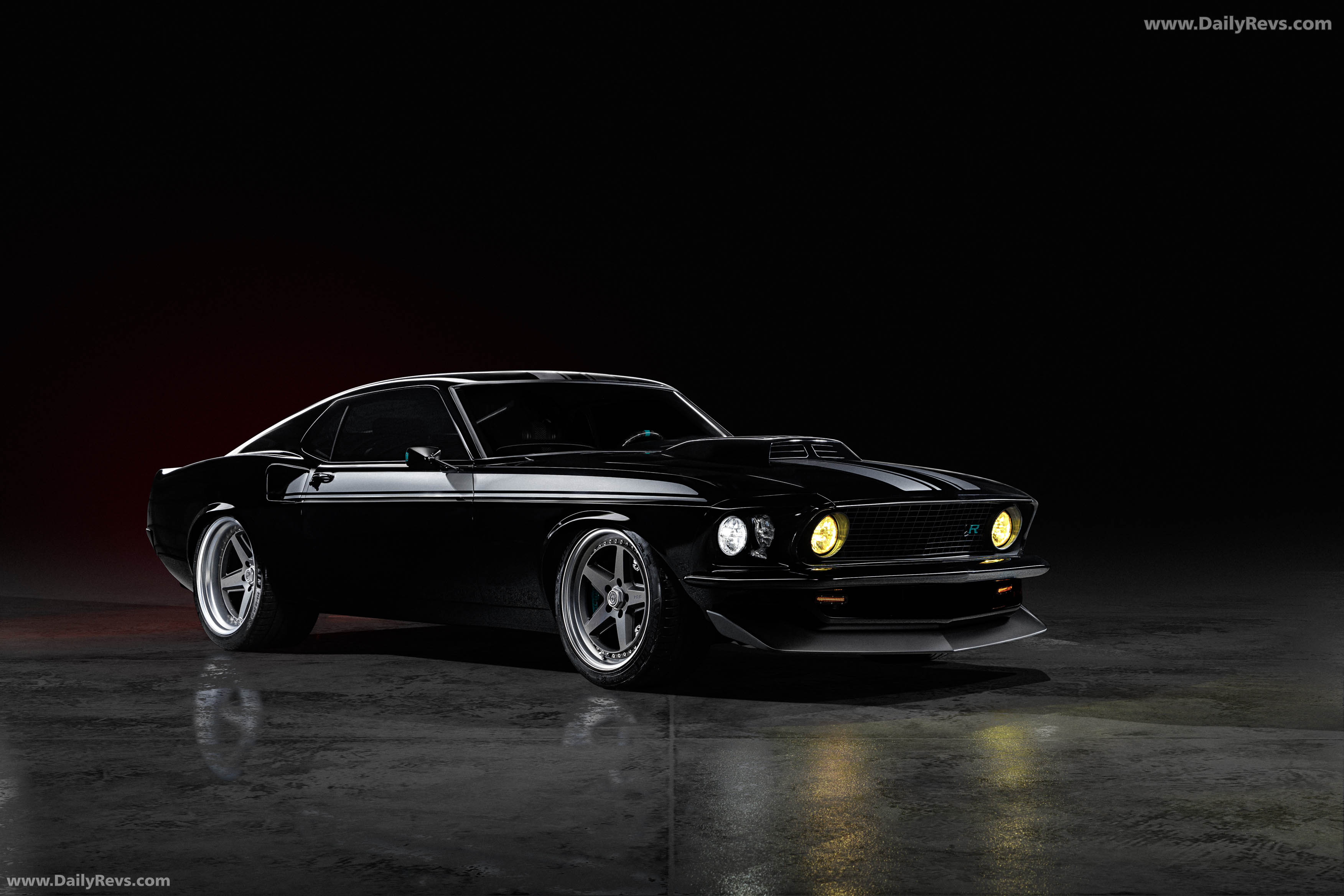

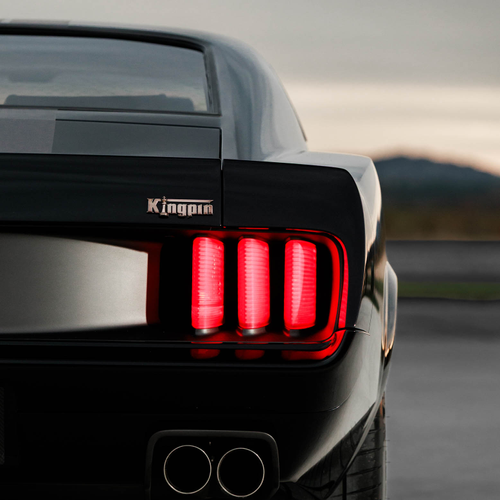

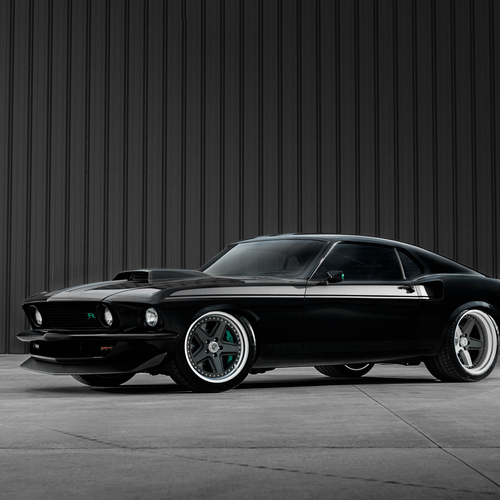

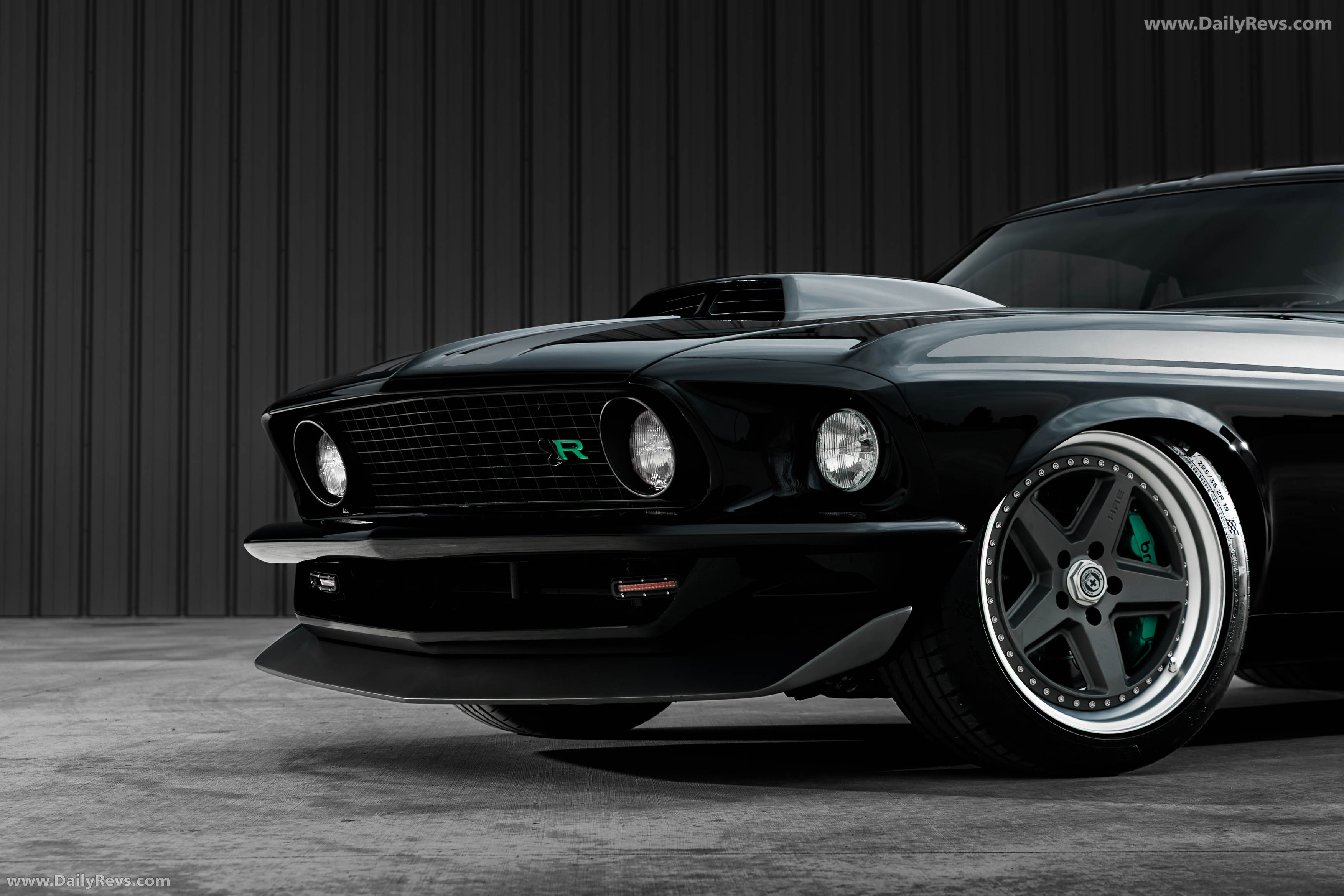

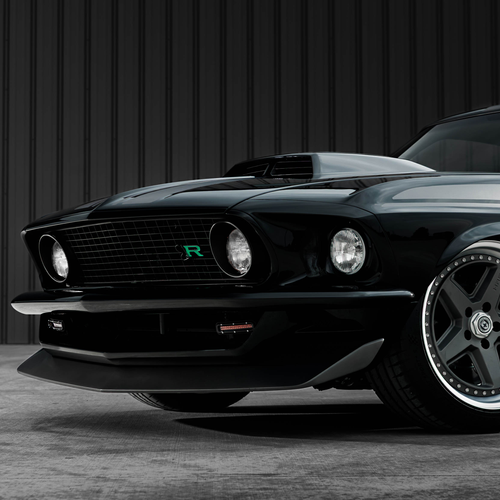

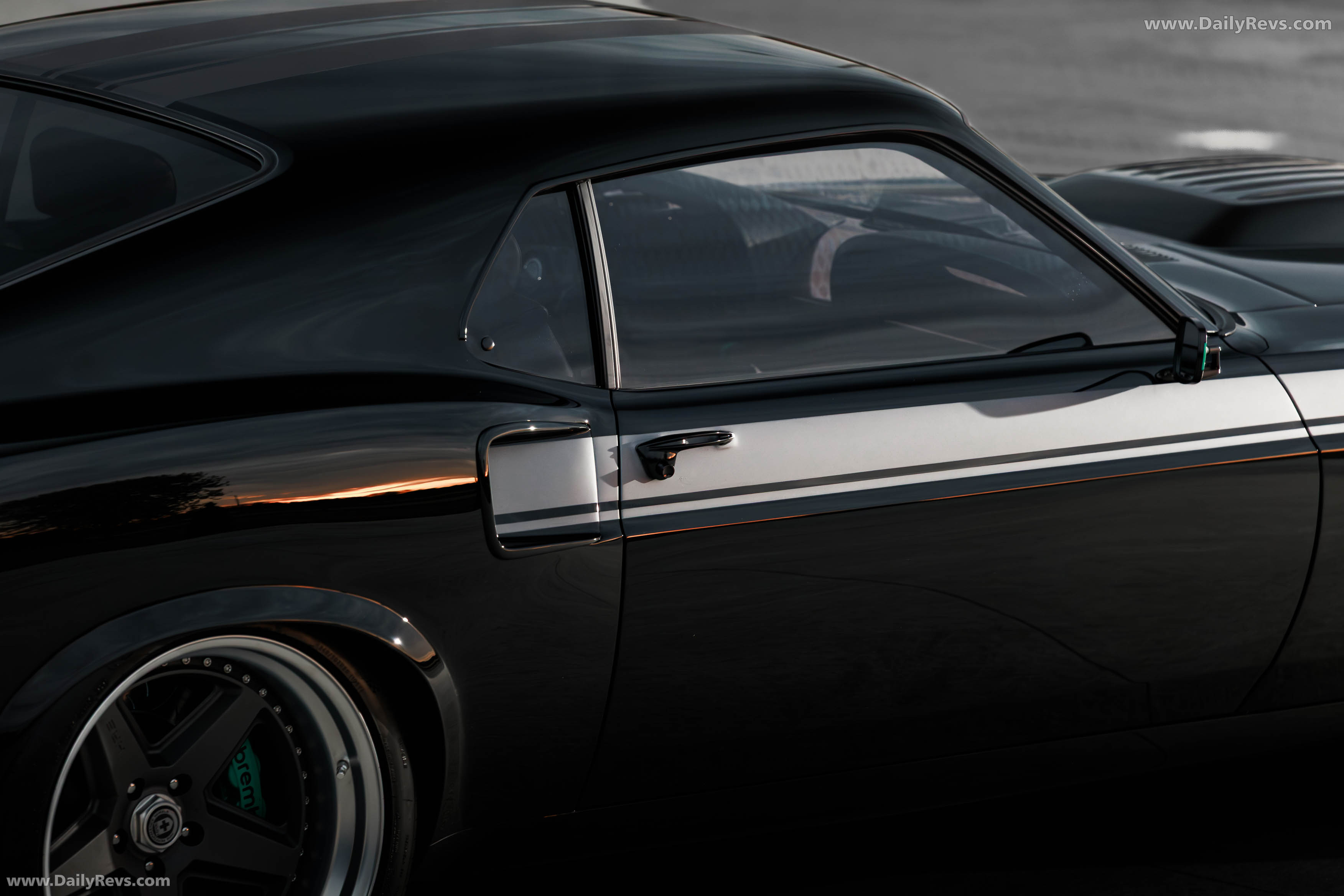

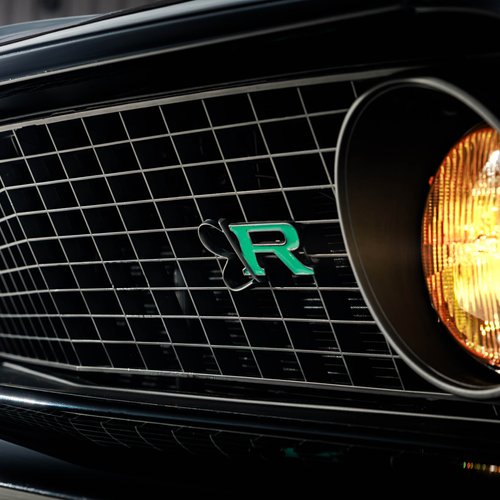

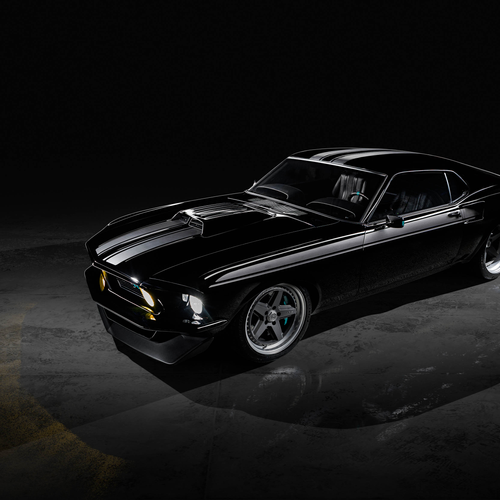

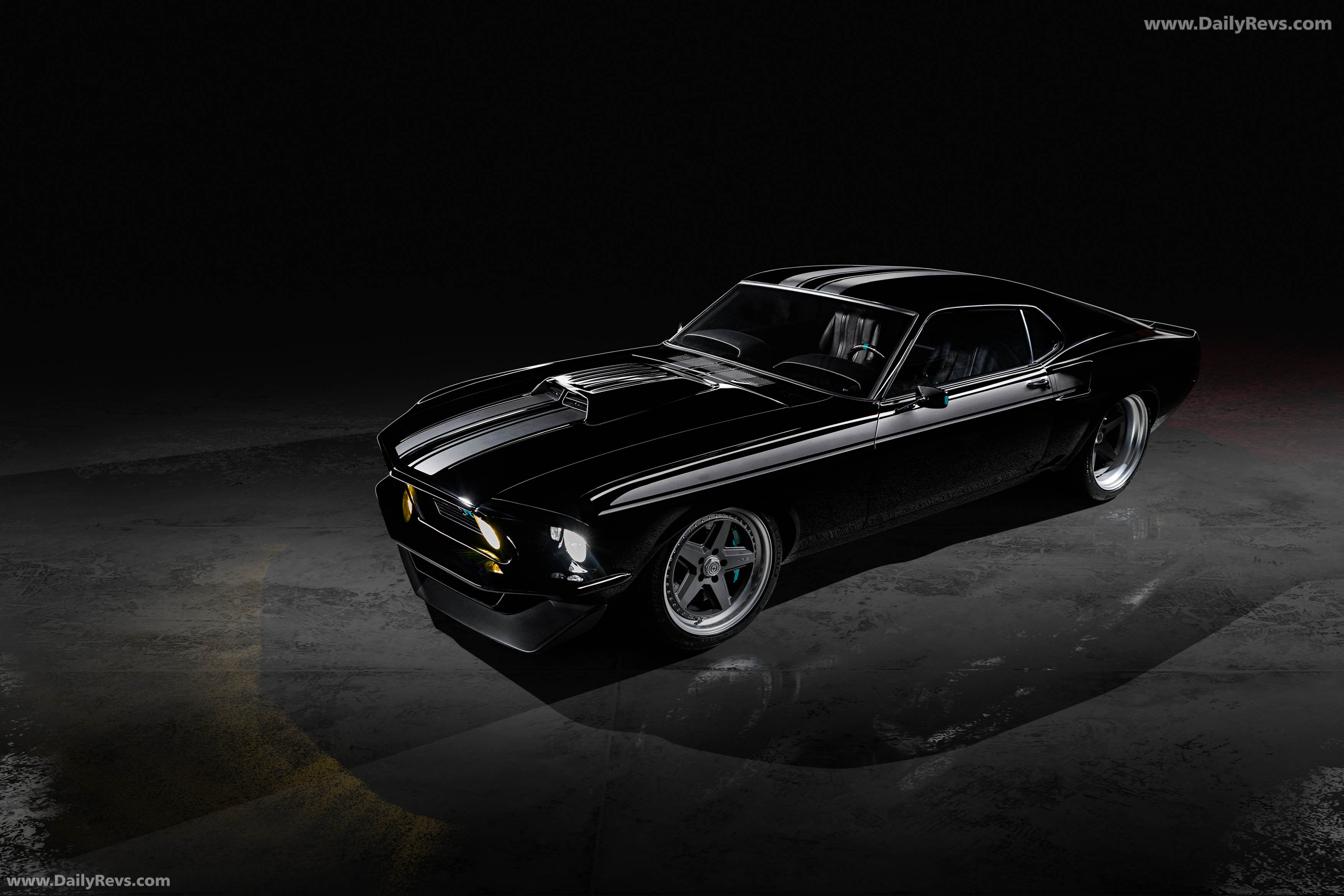

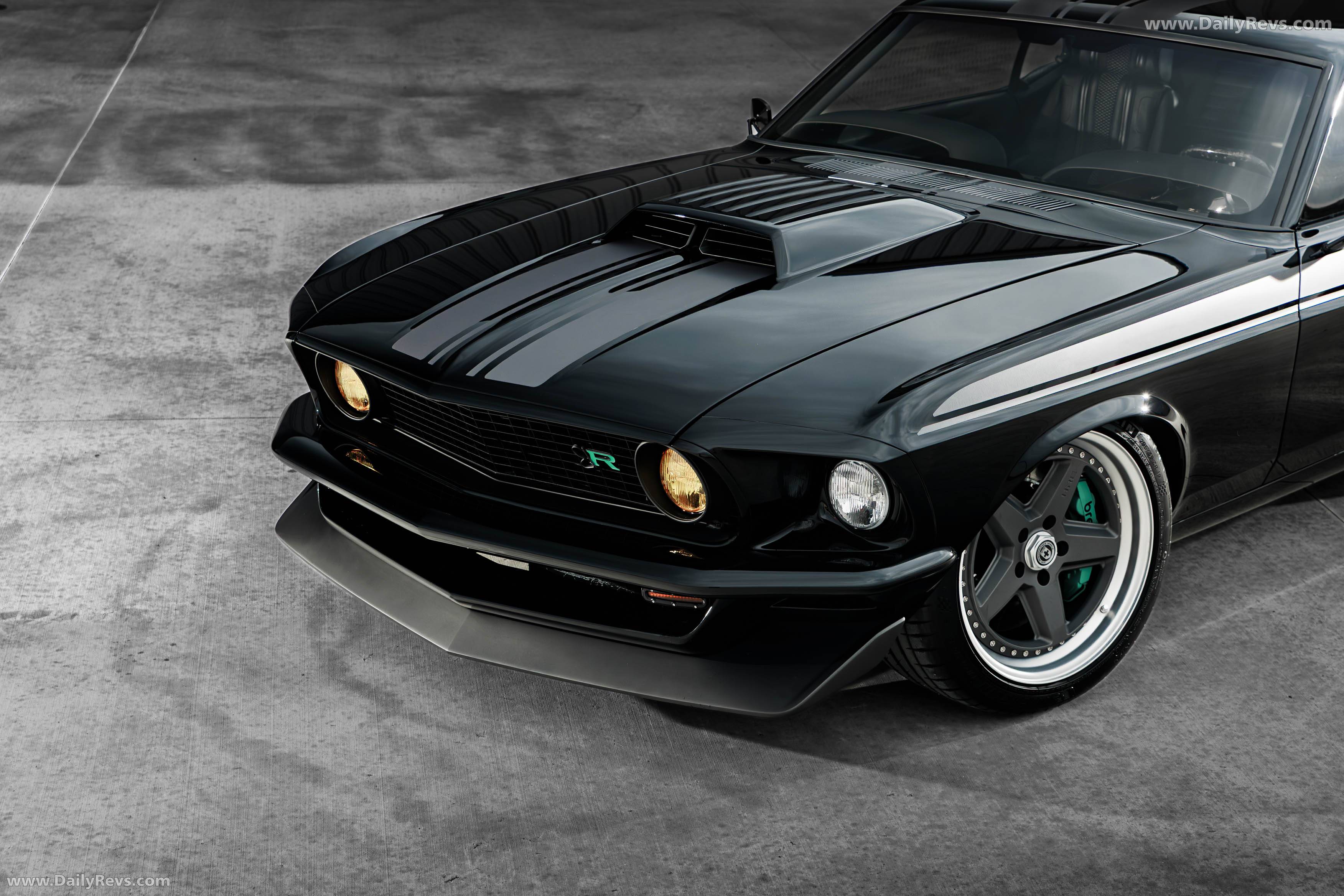

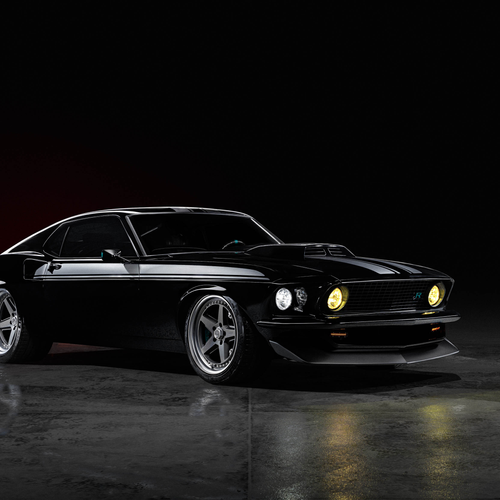

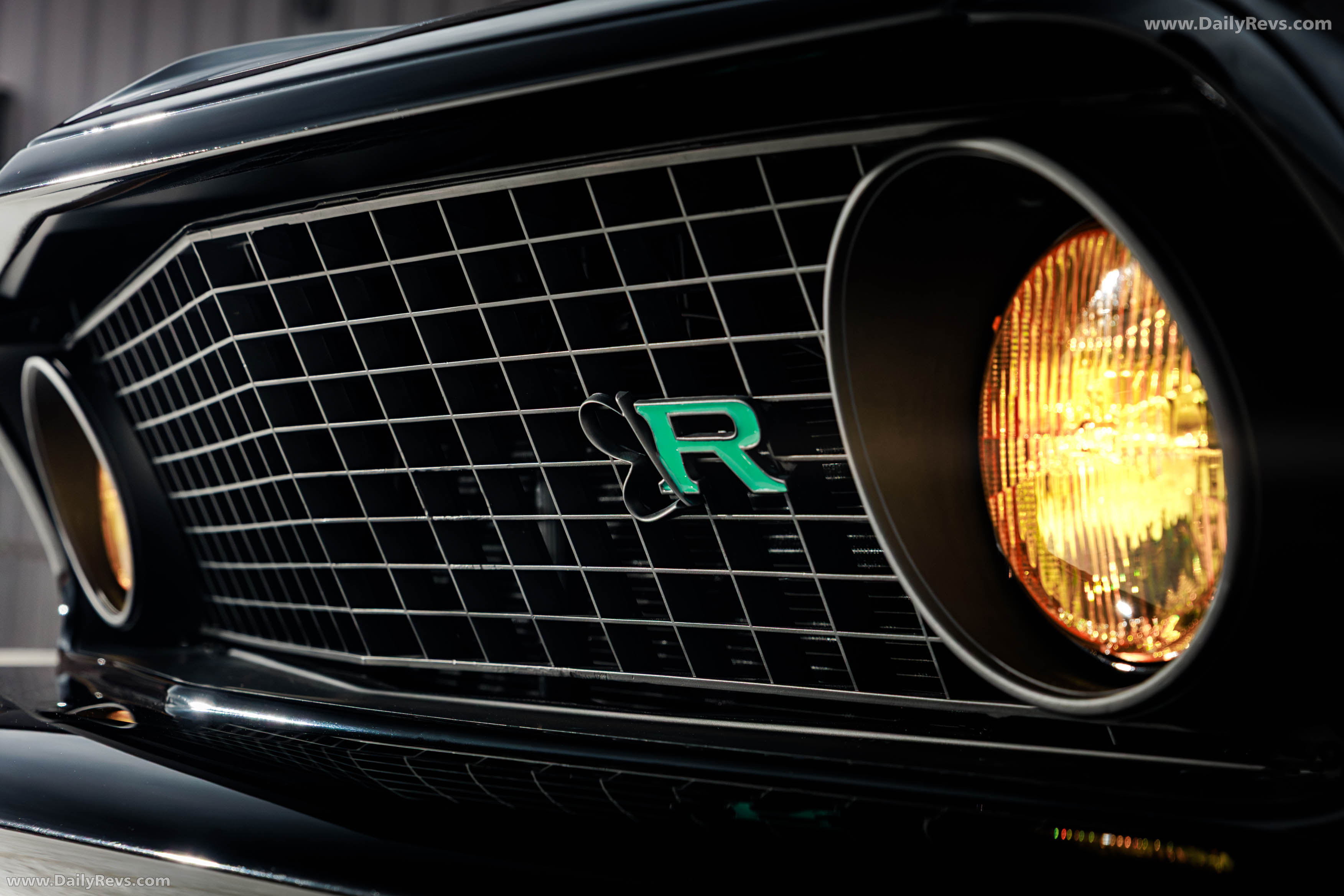

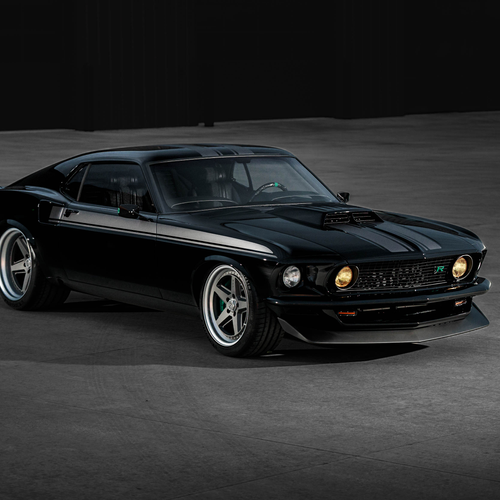

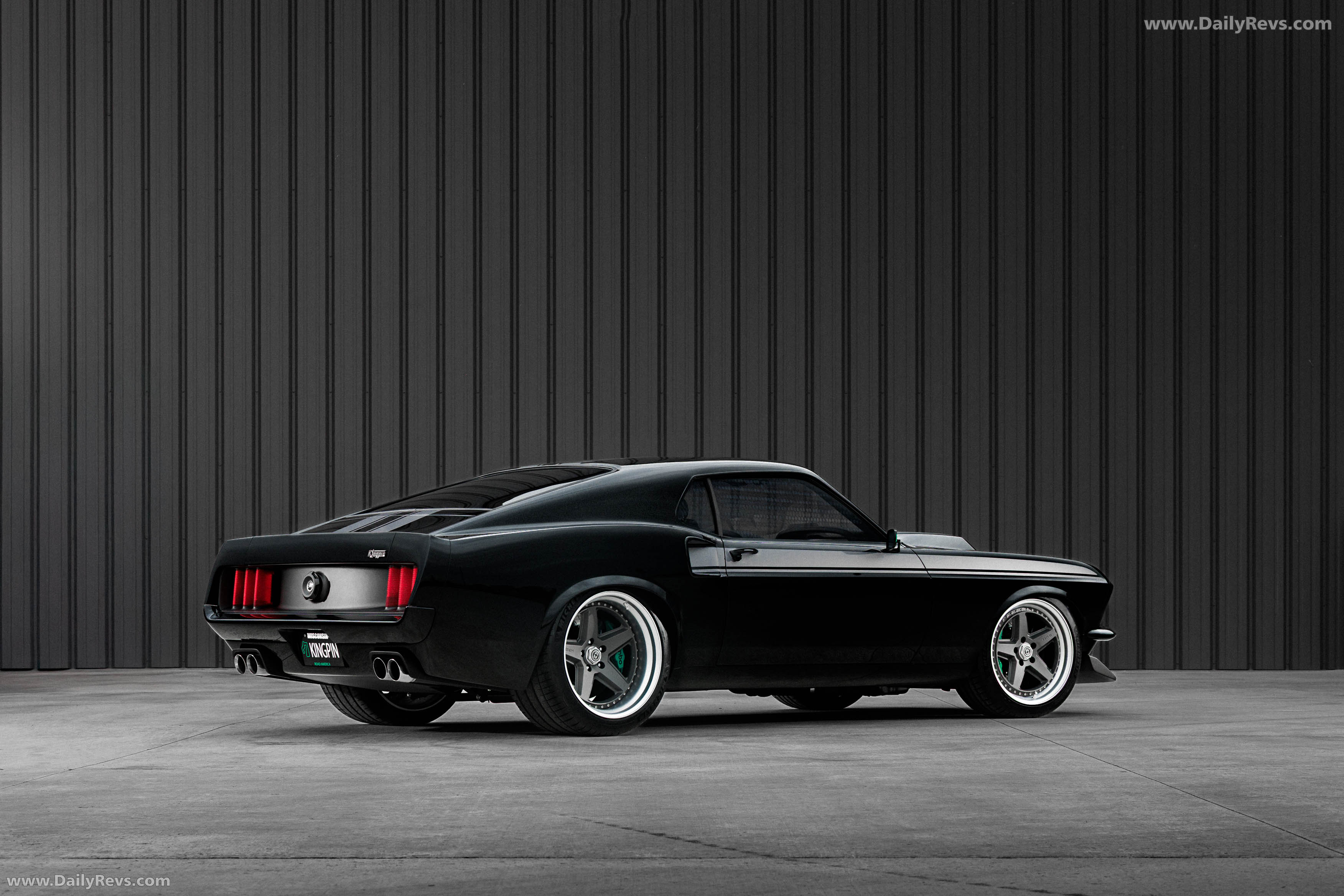

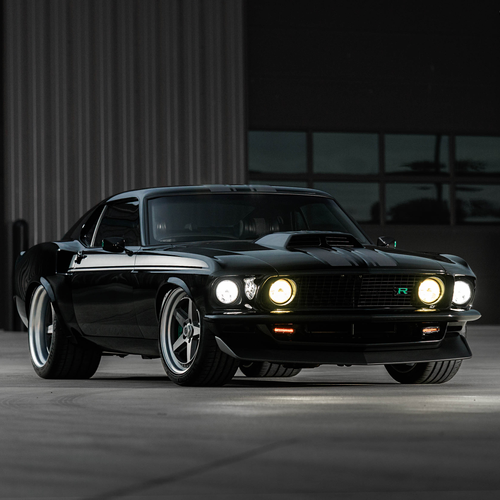

Visually, KINGPIN walks a fine line between menace and artistry. The custom BASF Bootleg Black paint absorbs light, while the trim’s Grab-Her Green accents nod to Ford’s Grabber Green heritage. The car’s widened haunches and lowered stance give it the presence of a track machine wearing a tuxedo.

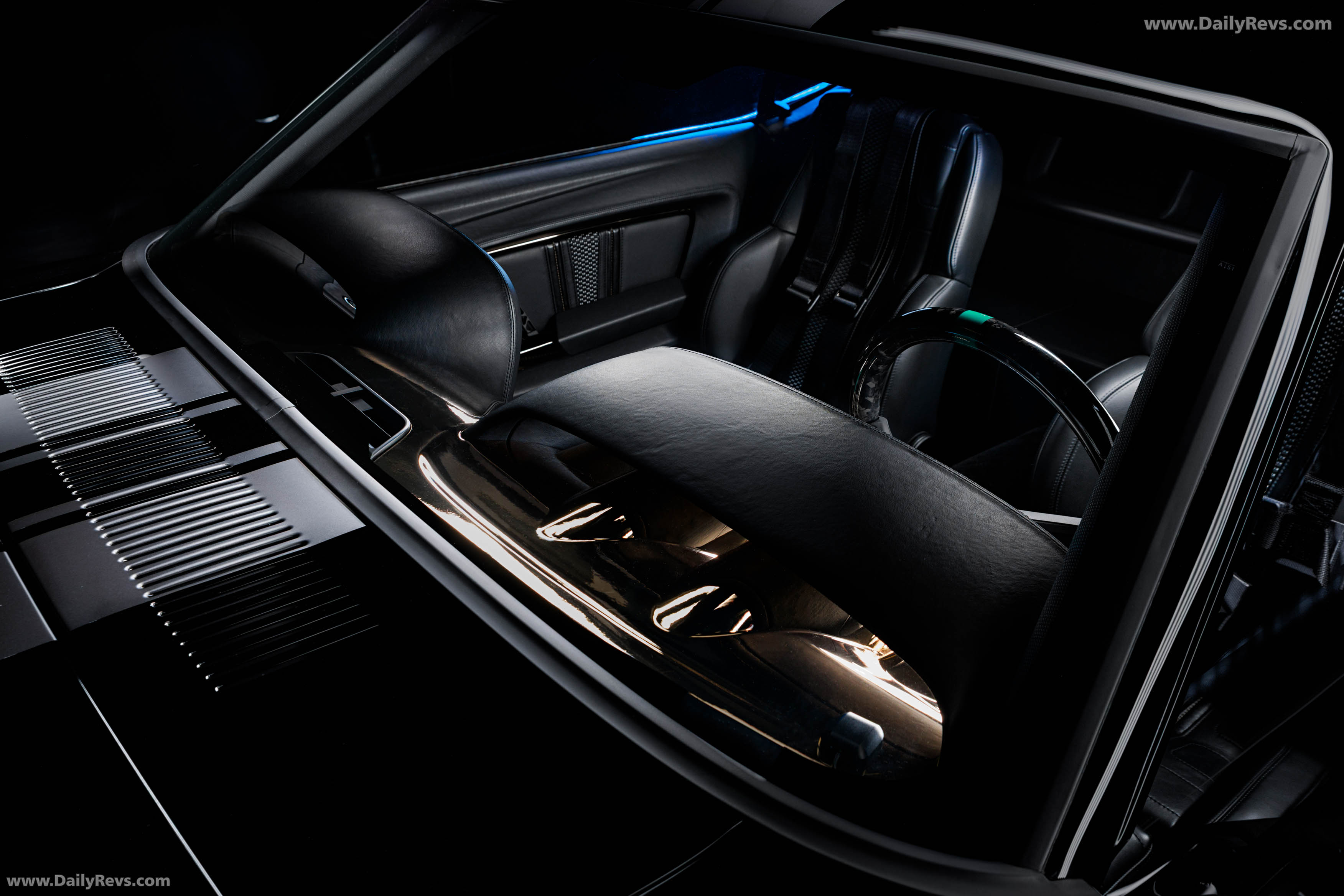

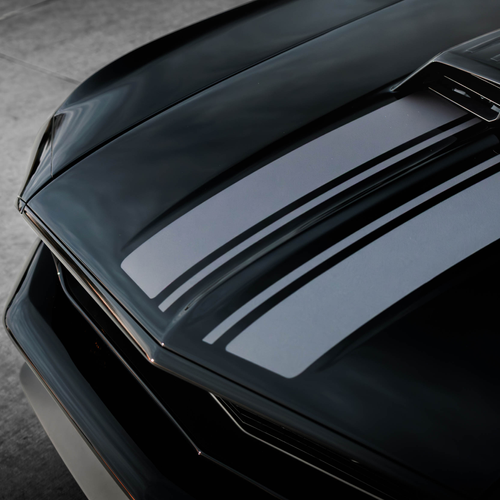

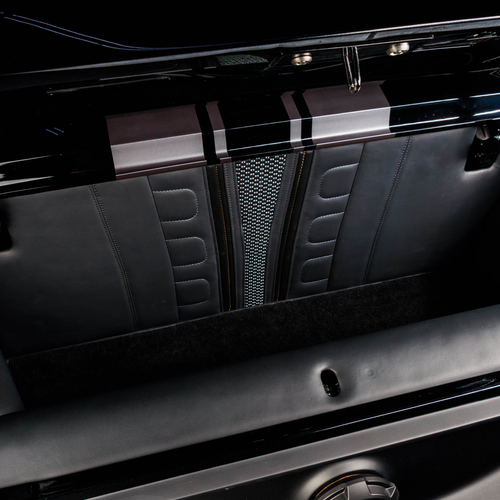

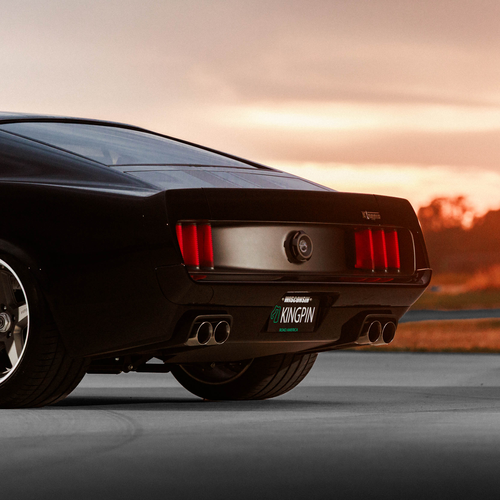

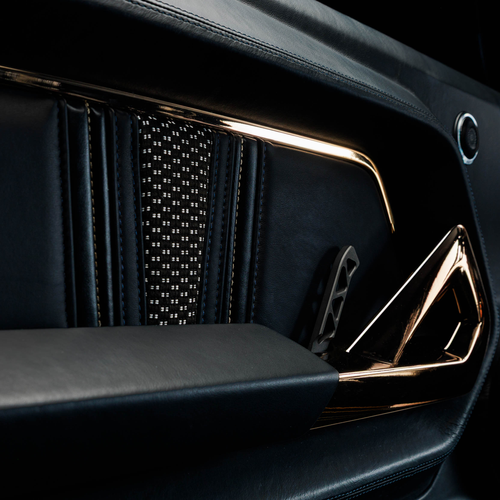

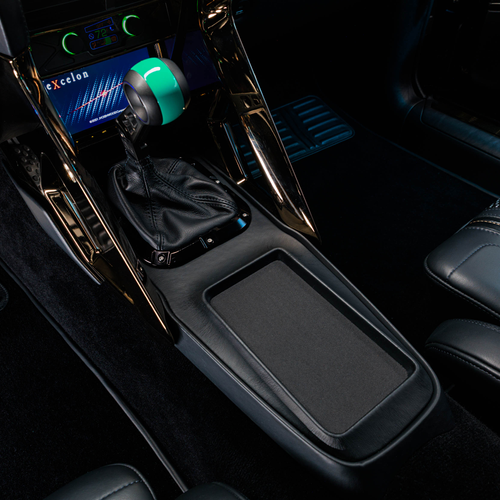

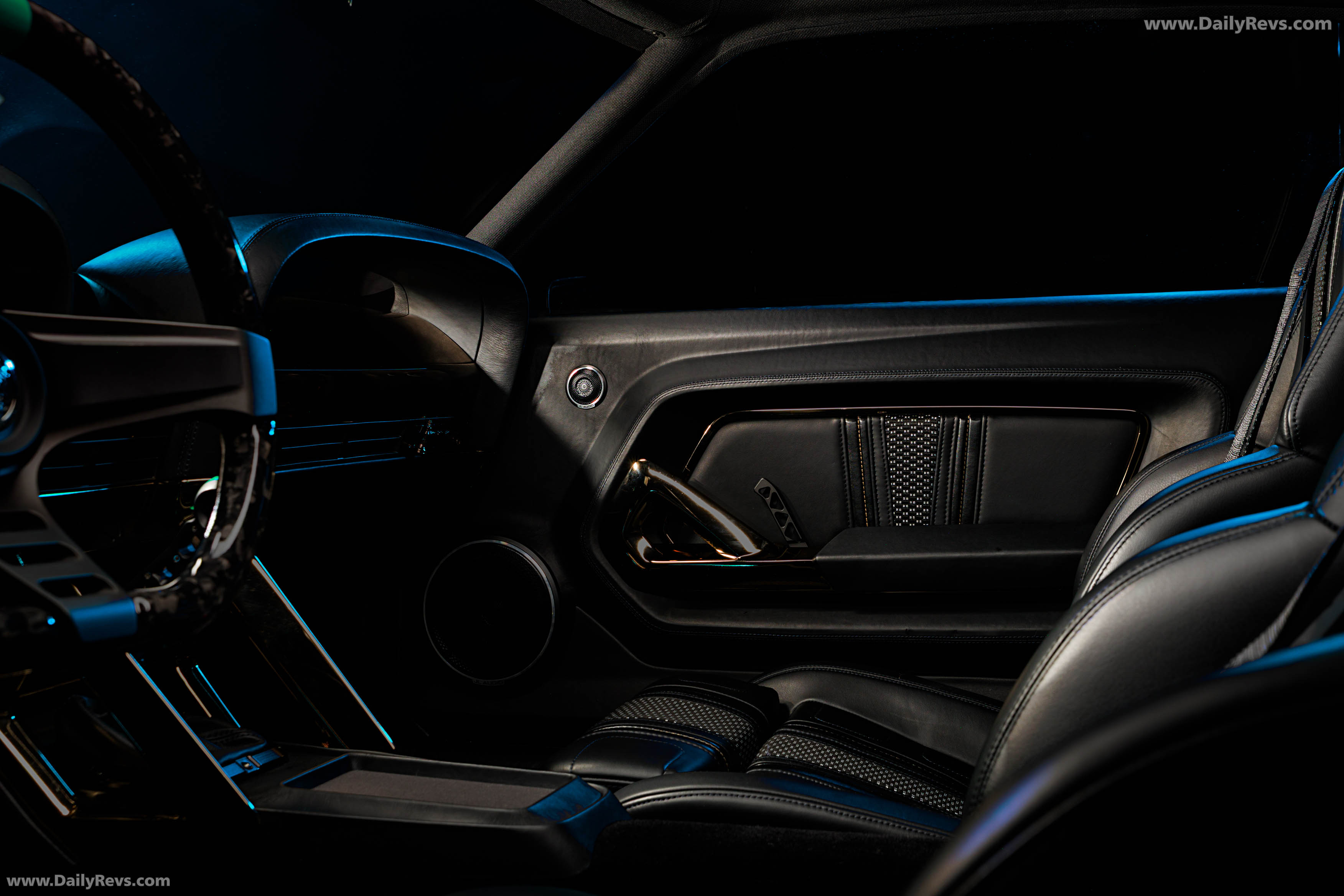

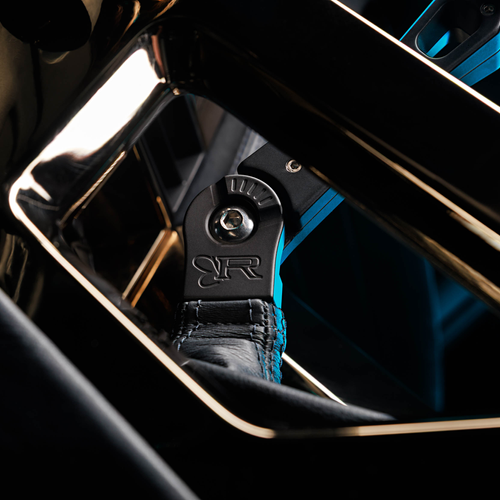

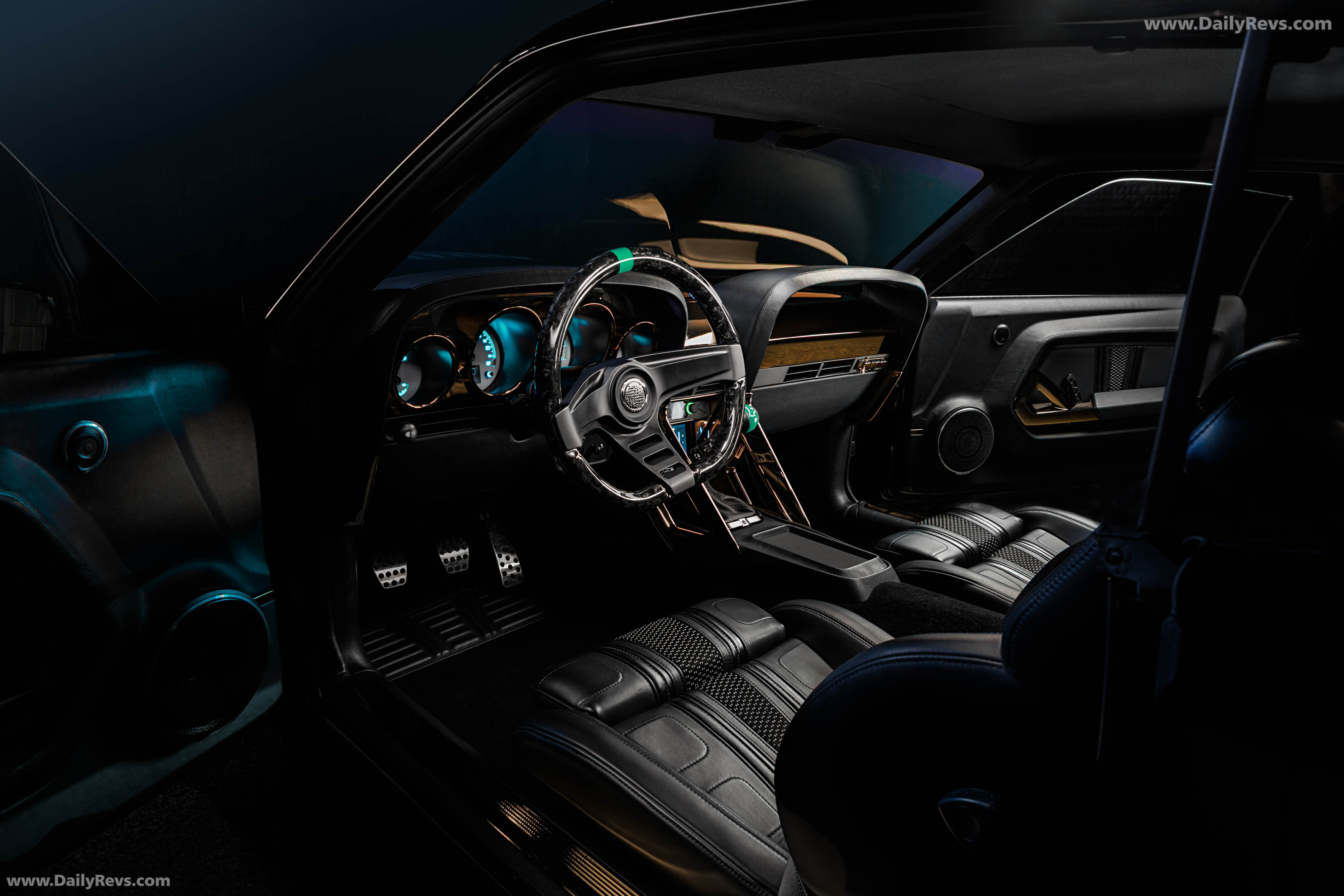

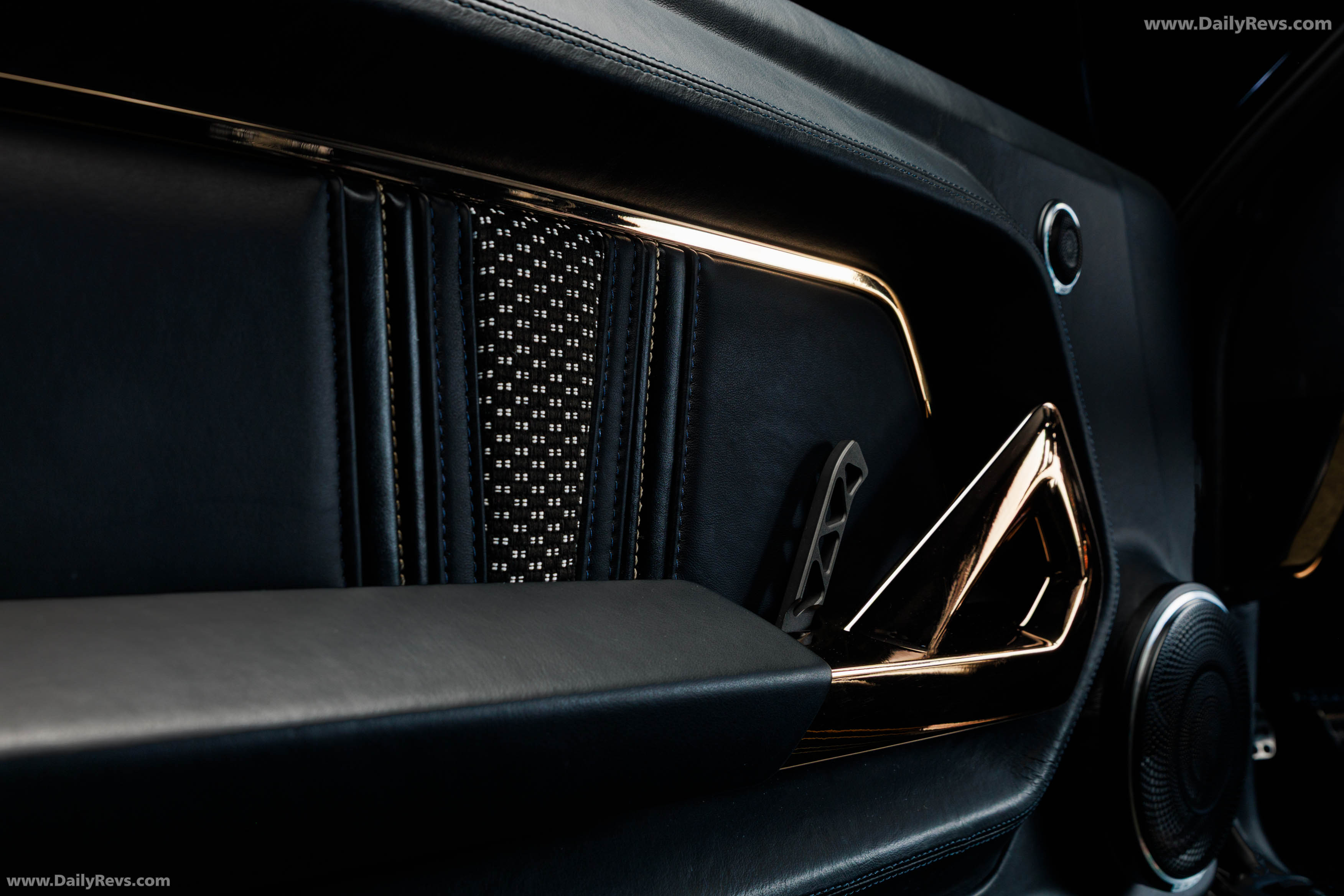

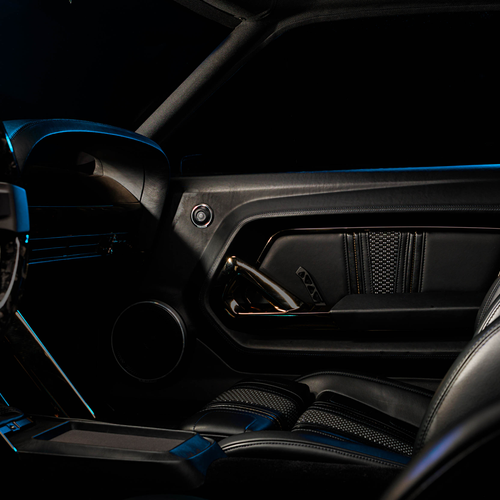

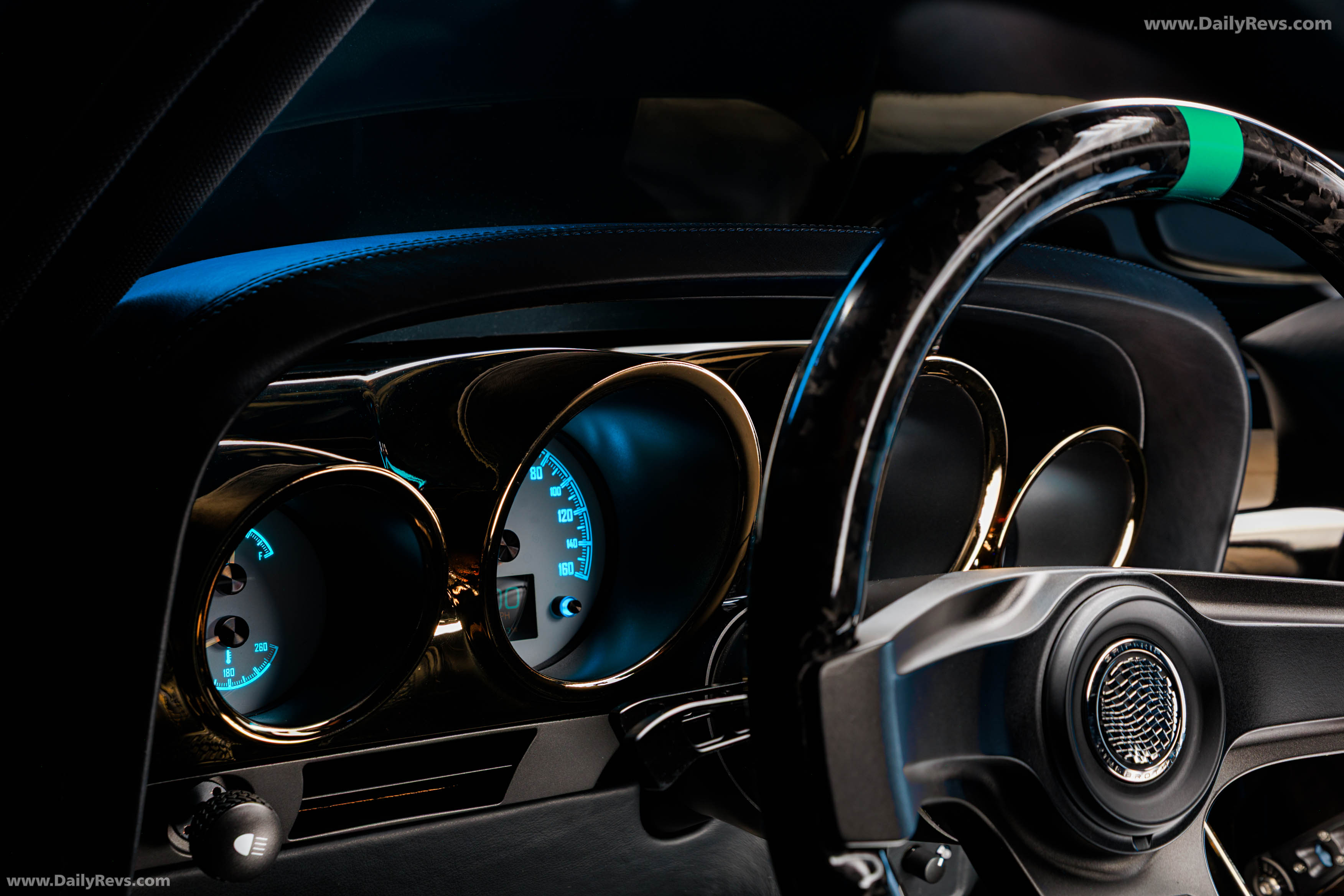

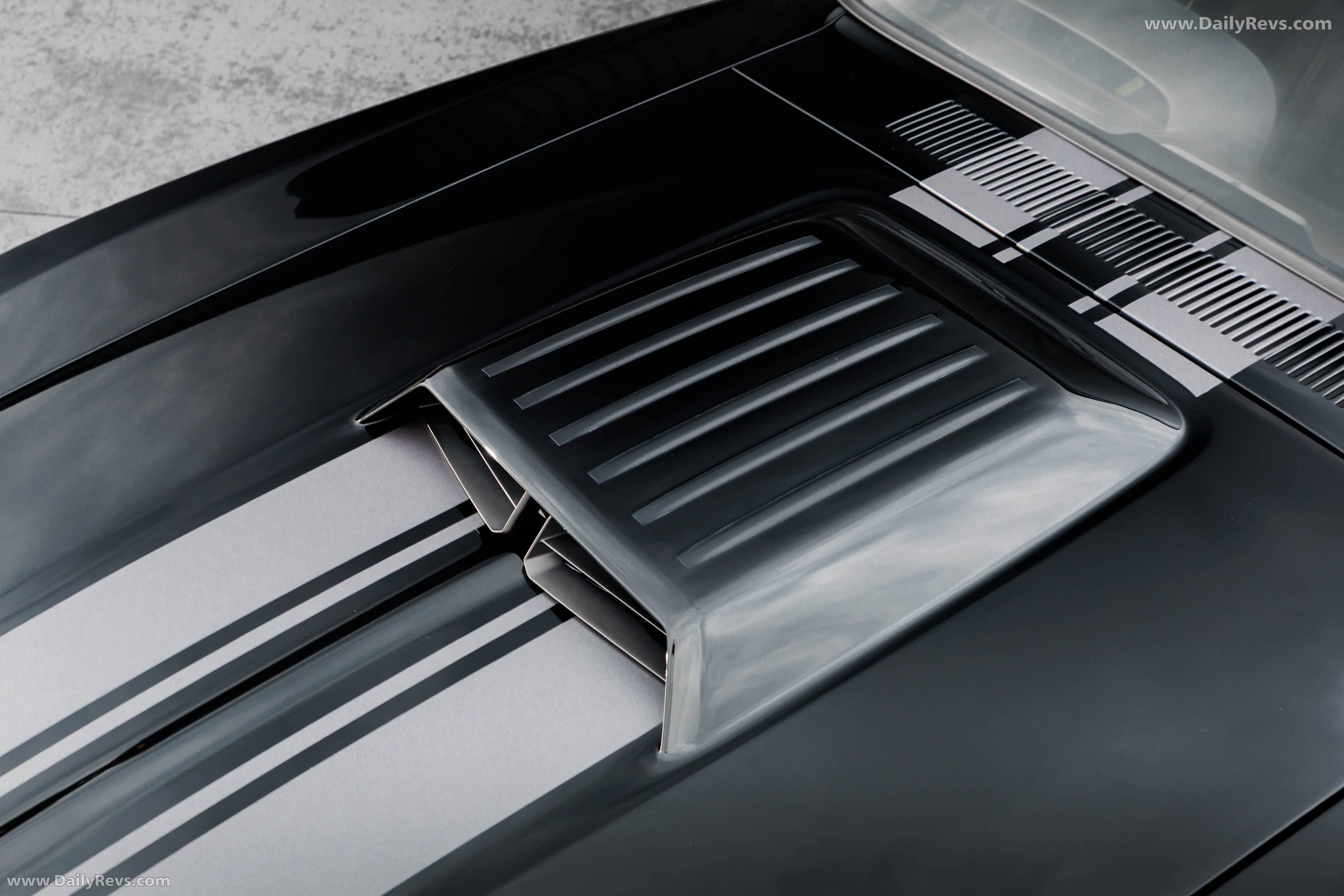

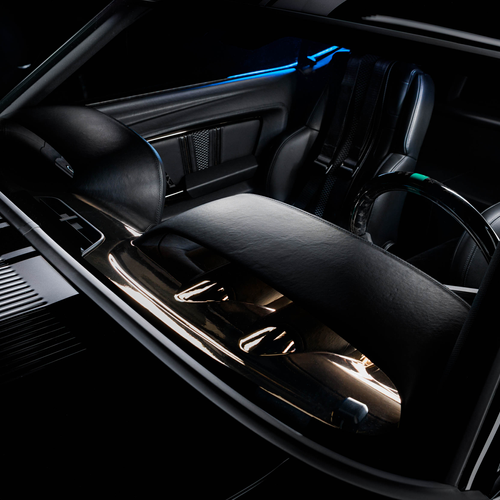

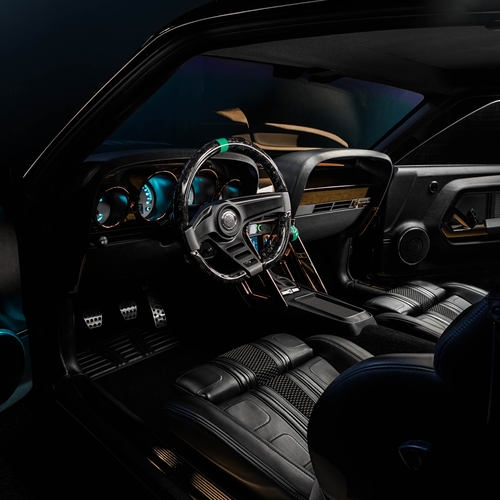

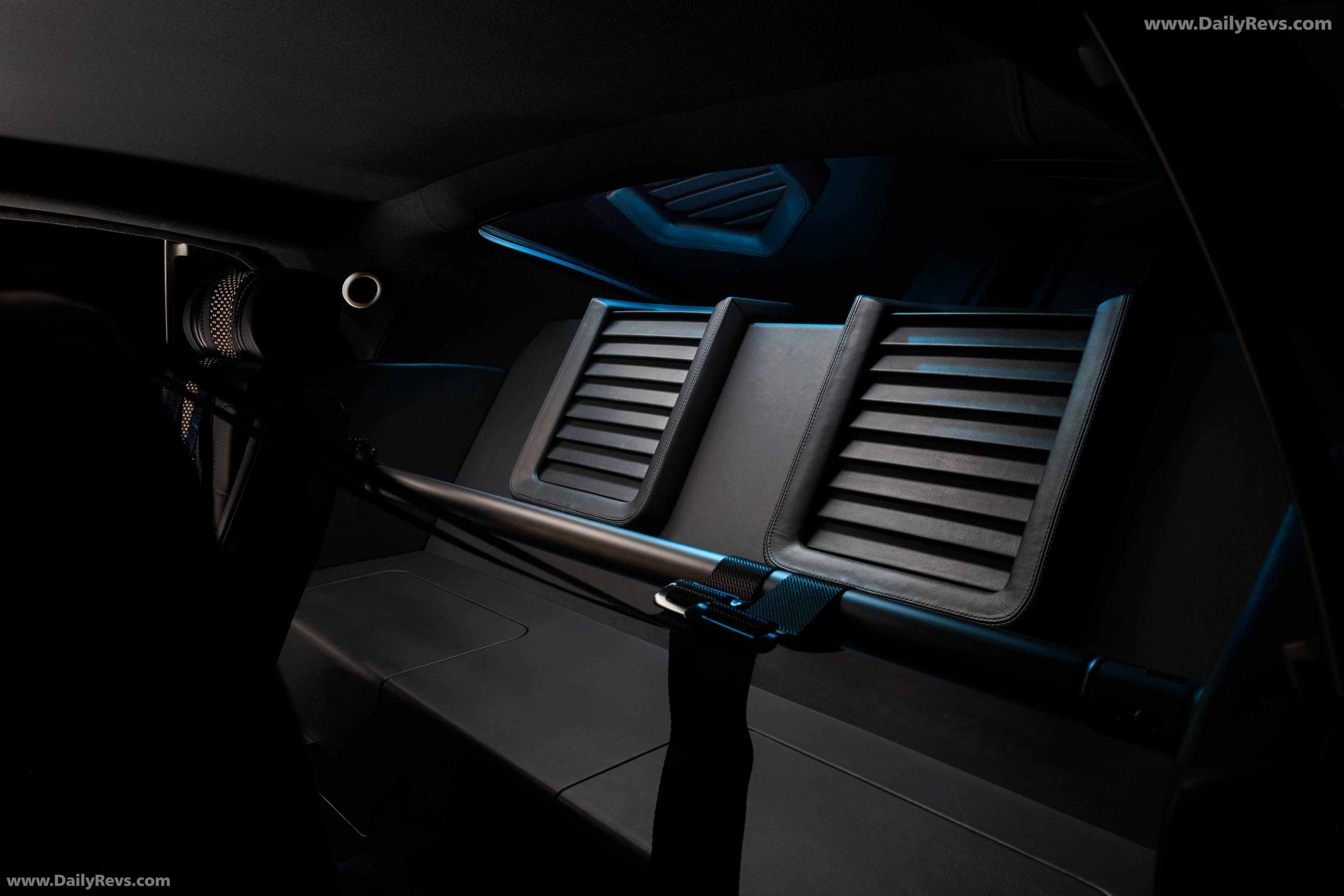

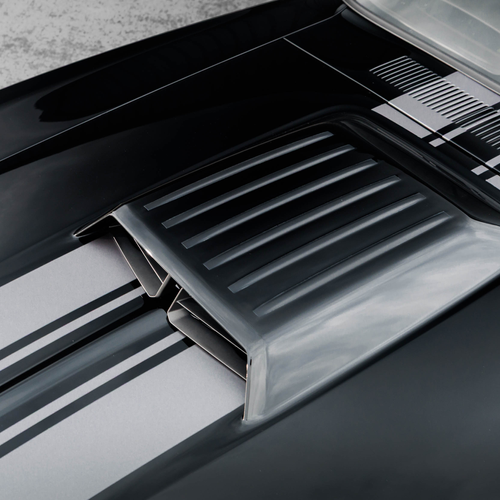

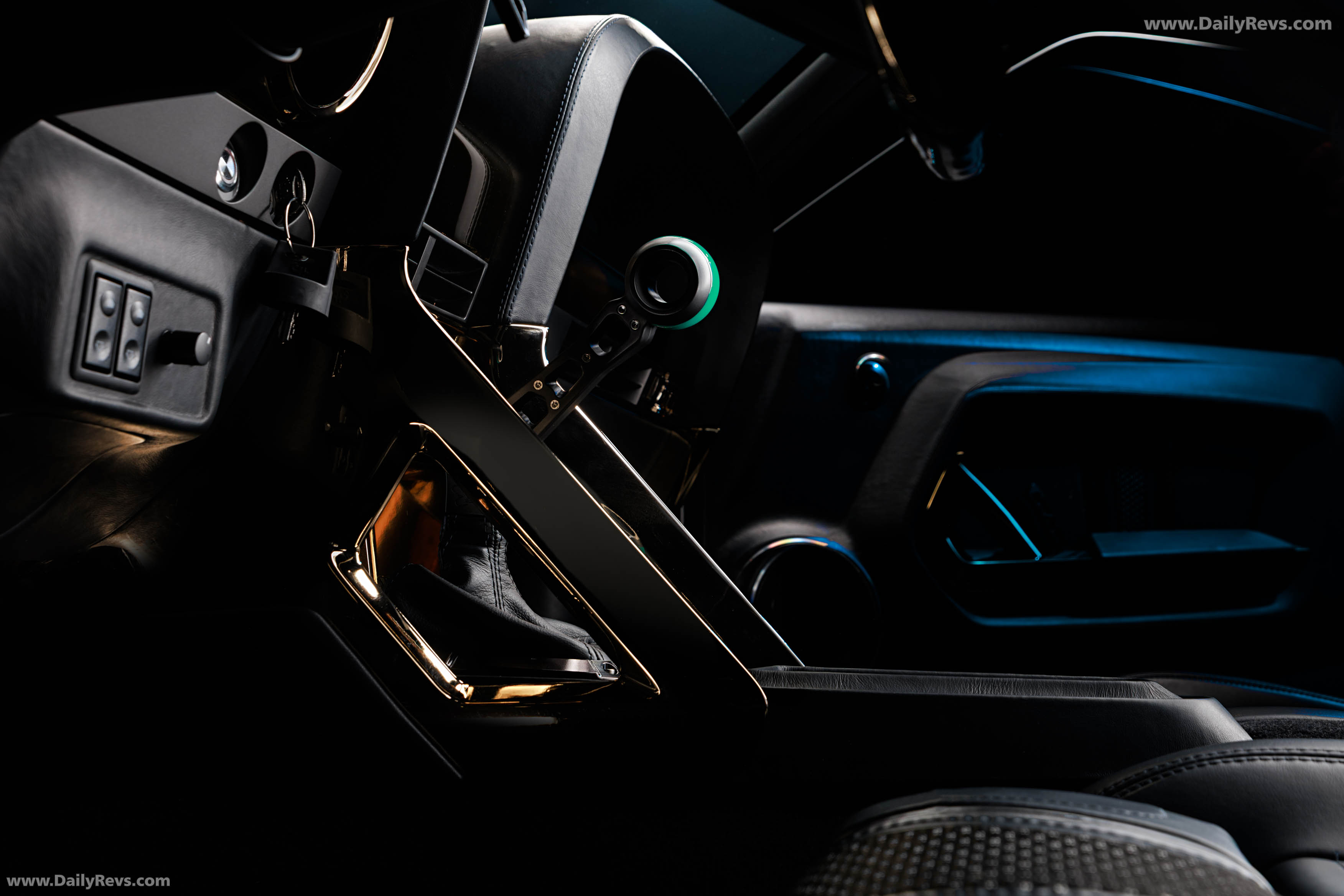

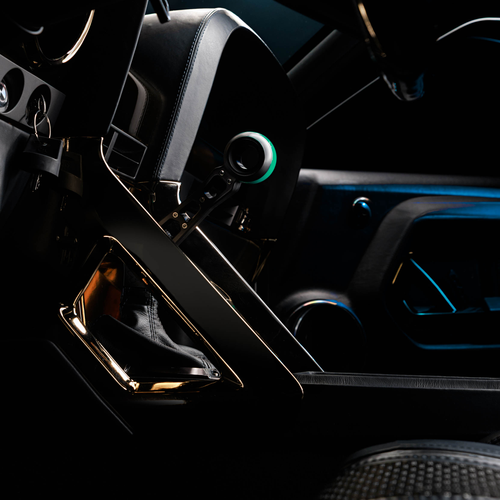

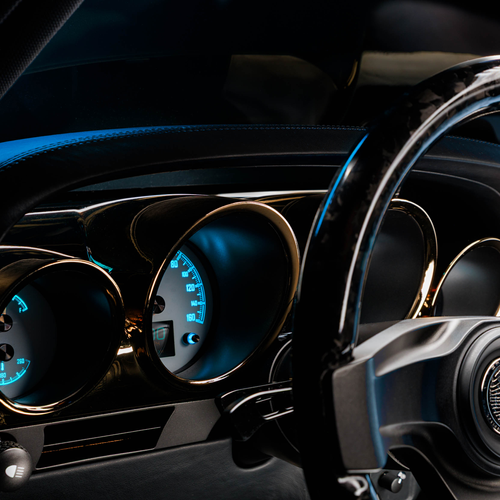

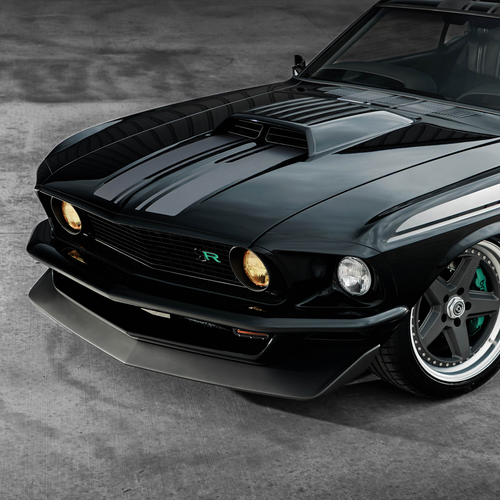

A full suite of carbon-fibre components — diffuser, hood, valance, and tail panel — define its surfaces. Inside, the details are just as intricate: 3D-printed brightwork, machined aluminium trim, and a Ringbrothers “ENYO” crushed-carbon steering wheel. The cabin is modern yet faithful, featuring Dakota Digital gauges and a Vintage Air Gen IV climate system.

Craftsmanship Beyond Custom

Co-founder Mike Ring calls KINGPIN “a study in refinement.” Every surface has been reshaped, every contour sharpened. “We kept the Mach 1’s aggression but gave it composure,” he said.

It’s a philosophy that extends across the build — a car that looks like it could have rolled out of Dearborn in 1969, if Dearborn had access to CNC machines, carbon fibre, and 21st-century precision. KINGPIN isn’t about retro; it’s about evolution.

Technical Specifications

• Model Name: 1969 Ford Mustang Mach 1 “KINGPIN”

• Builder: Ringbrothers (Spring Green, Wisconsin, USA)

• Debut: November 2025 – SEMA Show, Las Vegas

• Build Time: 5,500 hours

• Vehicle Type: Custom-built restomod performance coupé

• Chassis: Roadster Shop FAST TRACK Stage III platform (modified unibody conversion)


Engine:

• Type: Wegner Motorsports-built Ford 5.0-litre Coyote V8
• Induction: Whipple supercharger
• Power Output: Over 800 horsepower
• Exhaust: Custom Ringbrothers headers with Flowmaster Super 44 system
• Cooling: Custom-designed aluminum radiator and airflow ducting

Transmission and Driveline:

• Gearbox: Bowler Carbon Edition six-speed manual transmission
• Driveshaft: Carbon-fibre
• Rear Differential: Independent rear setup (FAST TRACK Stage III architecture)
• Drivetrain Layout: Rear-wheel drive (RWD)

Chassis and Suspension:

• Frame: Roadster Shop FAST TRACK Stage III, fully integrated into a re-engineered unibody
• Front and Rear Suspension: Independent with custom geometry
• Dampers: FOX RS coilovers (adjustable)

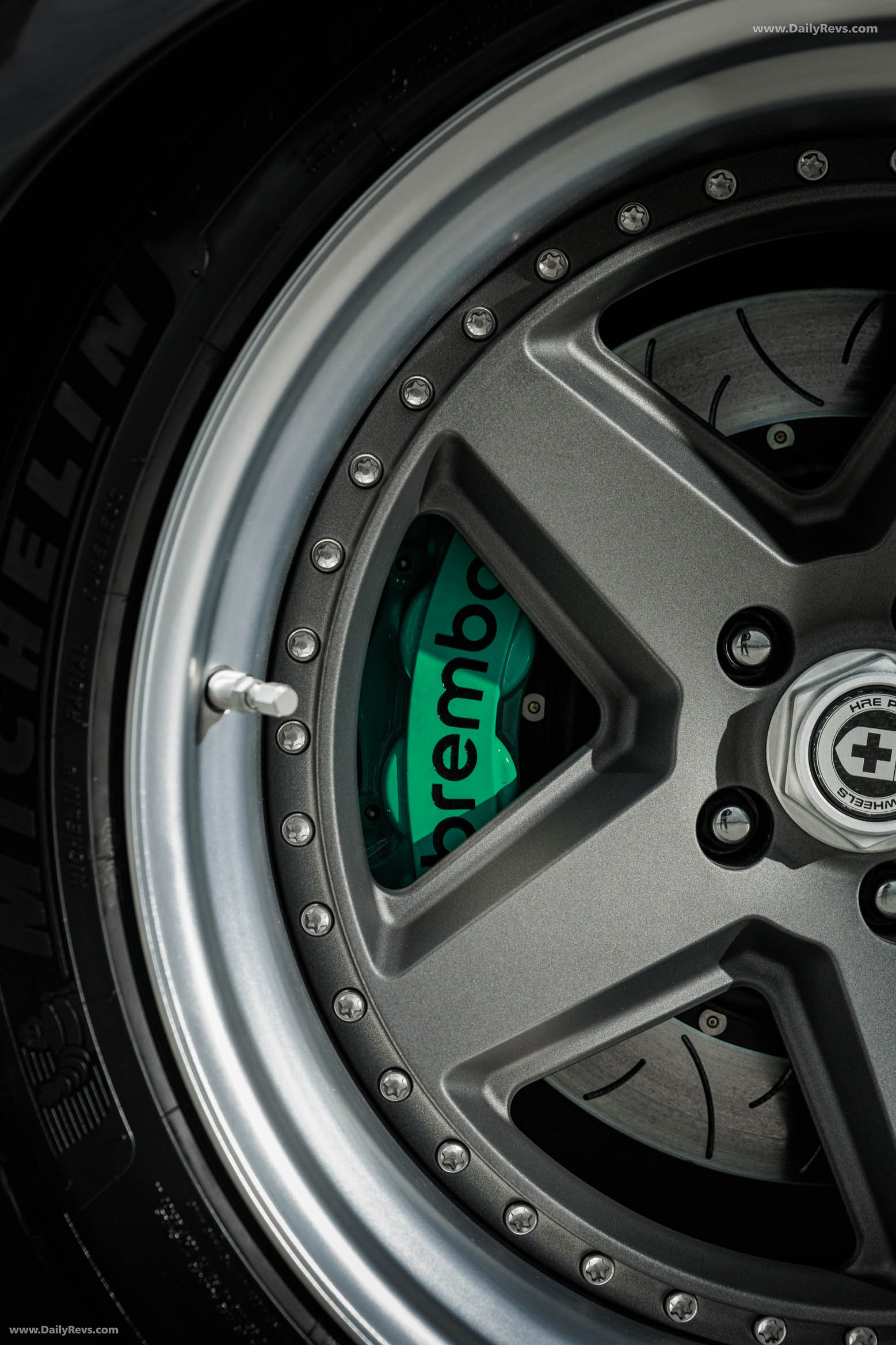

• Brakes: Brembo high-performance system

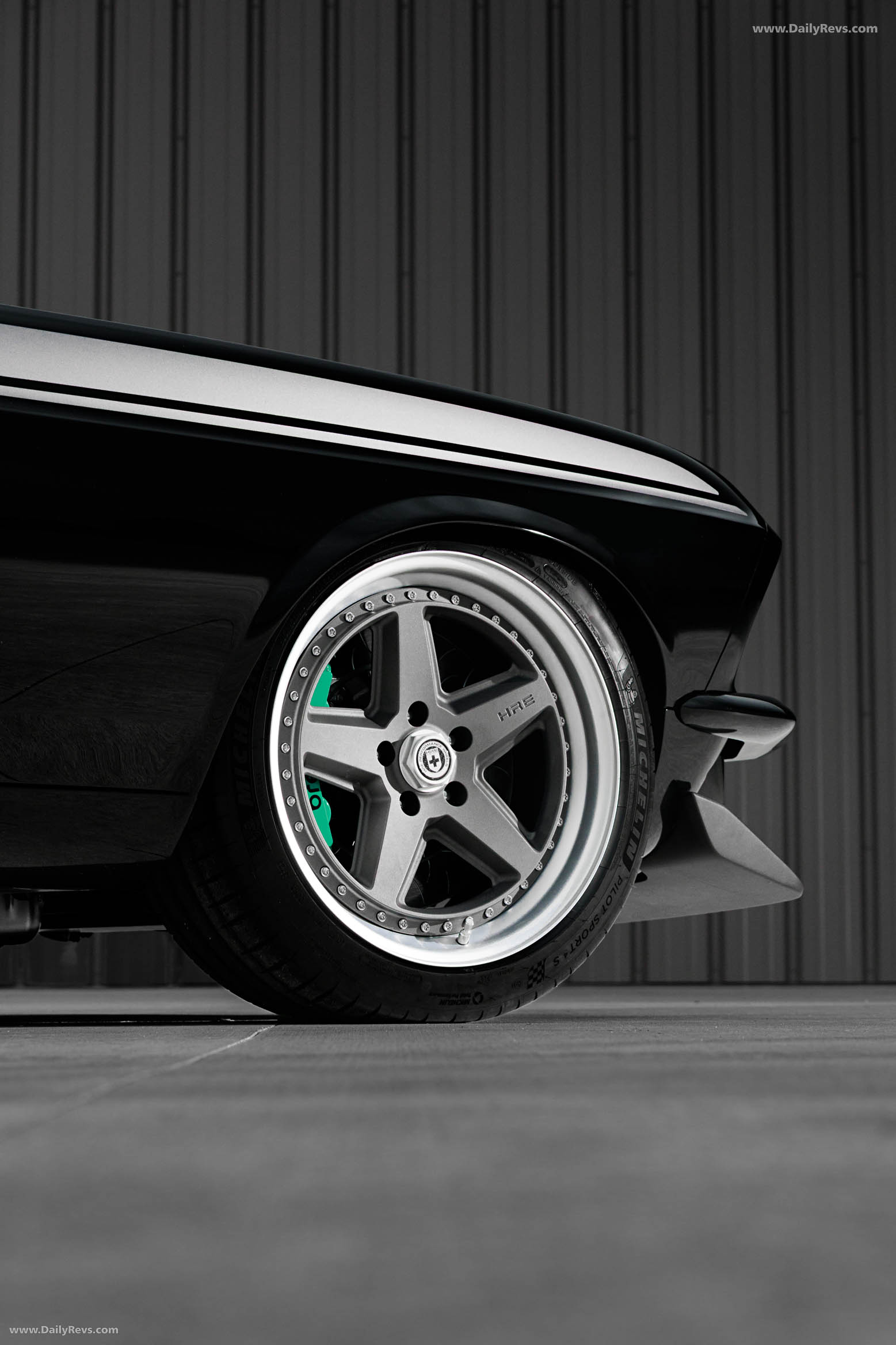

• Wheels: HRE Vintage Series 517 forged alloys
• Tyres: Michelin Pilot Sport 4S

Body and Exterior:

• Base Vehicle: 1969 Ford Mustang Mach 1 (extensively re-engineered)

Body Modifications:

• Widened by 2 inches at front, 3.5 inches at rear
• Wheelbase stretched by 1.5 inches
• Custom-fabricated panels and reshaped proportions
• Body Material: Combination of hand-formed metal and carbon fibre components

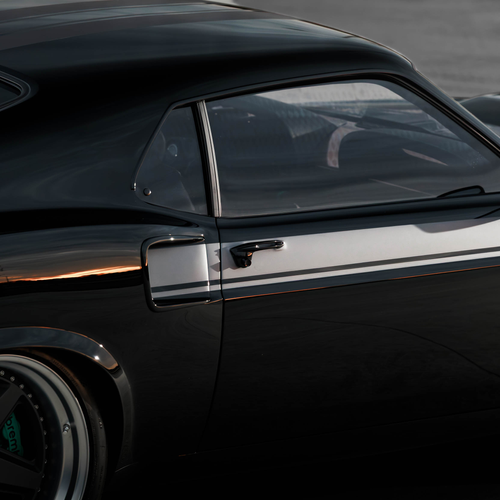

• Exterior Finish: BASF “Bootleg Black” with “Grab-Her Green” accents
• Aerodynamic Elements: Carbon-fibre diffuser, hood, front valance, and rear panel

Interior:

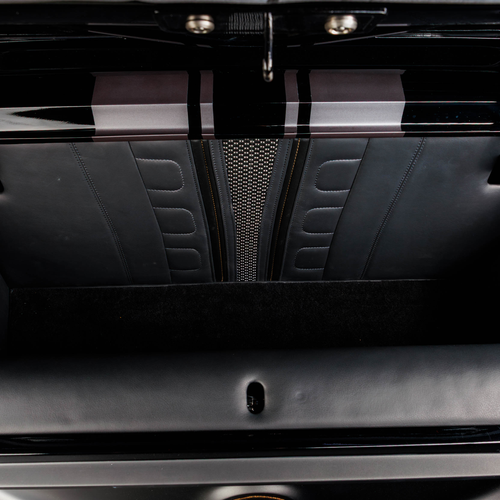

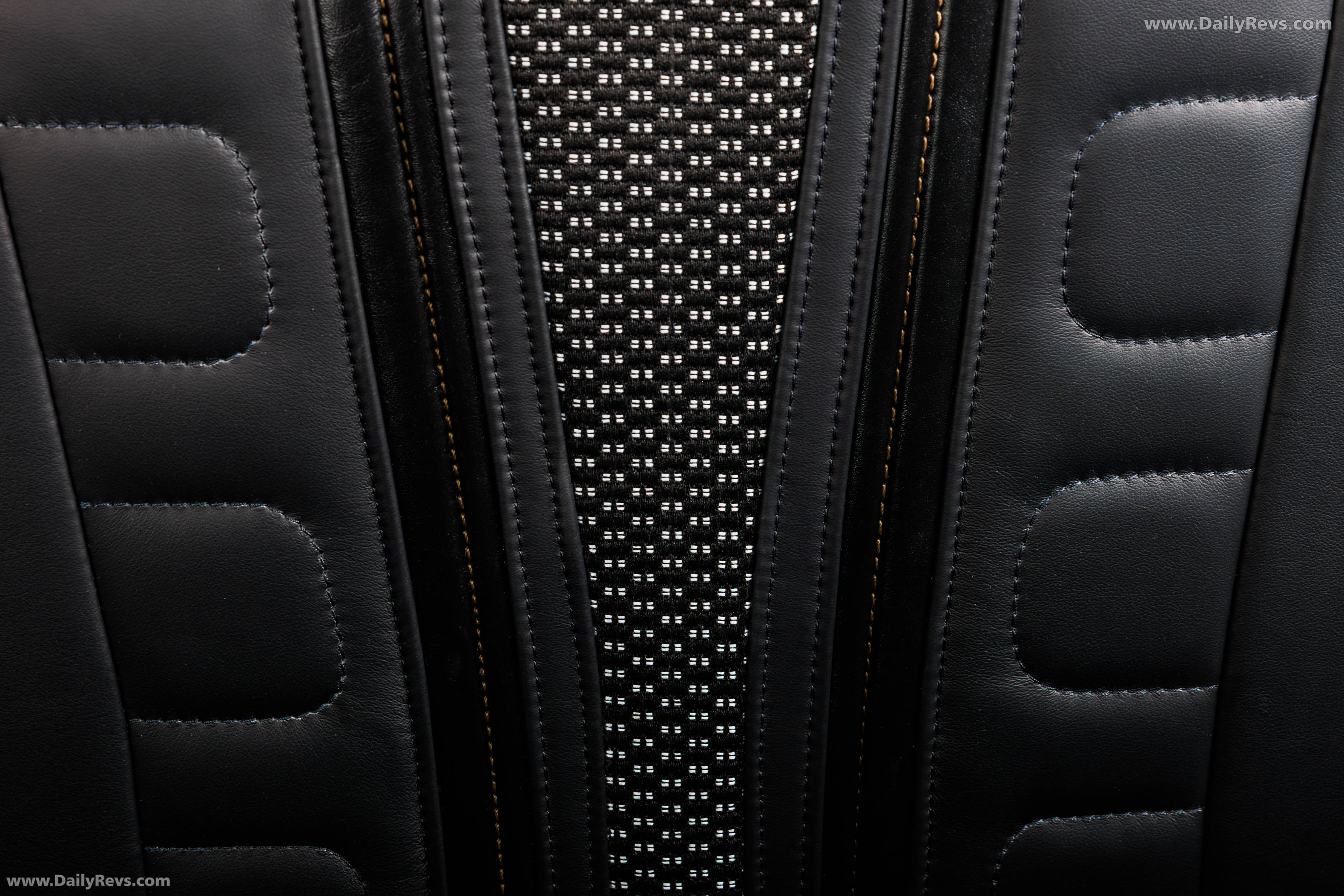

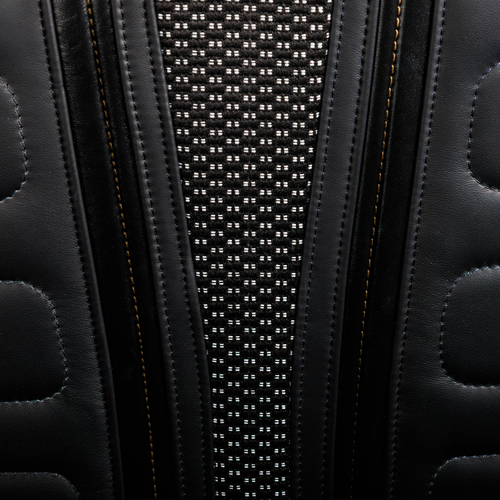

• Seats: Bespoke leather-trimmed sport seats

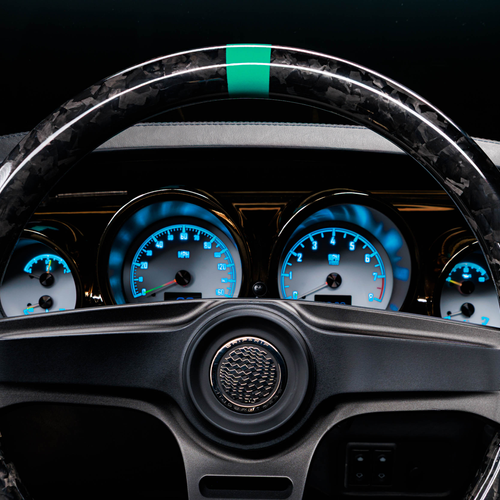

• Steering Wheel: Ringbrothers “ENYO” crushed-carbon fibre design
• Instrumentation: Dakota Digital gauges
• HVAC: Vintage Air Gen IV climate control

Trim and Detailing:

• Custom 3D-printed brightwork
• Machined aluminium hardware
• Upholstery and detailing by Avant-Garde Interiors

Dimensions (Modified Layout):

• Front Track: +2 inches over standard 1969 Mach 1
• Rear Track: +3.5 inches over standard
• Wheelbase: +1.5 inches over standard

Paint and Finish:

• Paint: BASF Glasurit Bootleg Black
• Accent Color: Grab-Her Green (custom mix referencing Ford’s original Grabber Green)

Performance (Verified Values):

• Power: 800+ hp
• Transmission: Six-speed manual
• Drivetrain: RWD
